Description

Price

10

Speedometer | Includes 10 to 10c

515177910

$615.35

10.001

Speedometer Button | XTP

415129355

$13.94

10.002

Gauge Ring

415129348

$11.71

10.003

Lens | XTP

415129349

$23.05

20

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

600

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

960

Connector Plate

515177134

$14.02

2000

Temperature Sensor This part replaces 420664508.

420664509

$142.28

2200

Air Temperature Sensor

515176366

$18.43

2205

Seal

508000769

$5.22

2210

Push Nut

389804300

$0.43

2400

LH Switch Housing

515178197

$259.20

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

$10.60

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

$10.60

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

2600.001

Male Terminal

515175232

$1.49

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3000

Main Harness

515177984

$355.35

3015

Lock Washer 4 mm

234141601

$1.09

3020

Screw-Torx Button Head M4 X 8

250000741

$1.09

3027

Adhesive Patch

518325560

$4.34

3201

Pan Screw Forming, 7500C

250000690

$2.06

3210

Male Terminal Housing, 6 Circuits

515175662

$8.57

3220

Male Terminal Housing, 4 Circuits

515175846

$8.57

3405

Fuse Battery Wire

515177576

$16.12

3410

Fuse, 25 Amperes

278001443

$3.26

3600

Ground Wire

515177289

$25.35

4200

Battery/Starter Wire

515177208

$29.20

4207

Clip

515177066

$4.00

4210

Elastic Stop Nut M6

232561414

$1.55

4220

Flat Washer 6 mm

234061410

$1.04

4240

Elastic Stop Nut M6

232561414

$1.55

4260

Insert

293450275

$9.89

4300

Battery Support

515177264

$29.97

4310

Hex. Flange Screw M6 X 20

207662044

$1.66

4310

Hex. Flange Screw M6 X 20

207662044

$1.66

4311

Hex. Flange Screw M6 X 12

207661244

$1.70

4312

External Serrated Lock Washer 6 mm

234461608

$0.92

4313

Flat Washer

250200082

$0.35

4320

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

4320.001

Battery Bolt Kit

250000282

$2.95

4340

Battery Strip

515177266

$15.35

4350

Starter Relay

278003012

$35.07

4360

Hex. Flange Screw M6 X 20

207662044

$1.66

4361

Elastic Flange Nut M6 X 1.0

233261416

$1.74

4370

Hex. Flange Screw M6 X 16

207661644

$0.61

4371

Flat Washer

224061201

$1.11

4520

Capacitor

515177272

$85.35

4530

Socket Head Screw M10 X 32

250000462

$2.06

4535

Lock washer | Quest XT 650.

250200026

$1.83

4540

Capacitor Decal

516008593

$1.12

4550

Cap

515177193

$4.43

4700

Ground Wire

515176358

$26.12

4710

Ground Wire

515178052

$26.12

4720

Lock Washer Serrated M6

250200041

$0.92

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

4820

Elastic Stop Nut M6

232561414

$1.55

4830

Protector Cap

710000495

$10.14

9000

Tie-Rap 180 mm

414115200

$0.09

9000

Tie Wrap 142 mm

293750002

$0.88

9000

Tie Wrap 368 mm

293750008

$0.85

9000

Tie Wrap 94 mm | 4X4

293750001

$0.83

9000

Tie-Rap 173 mm

293750009

$0.85

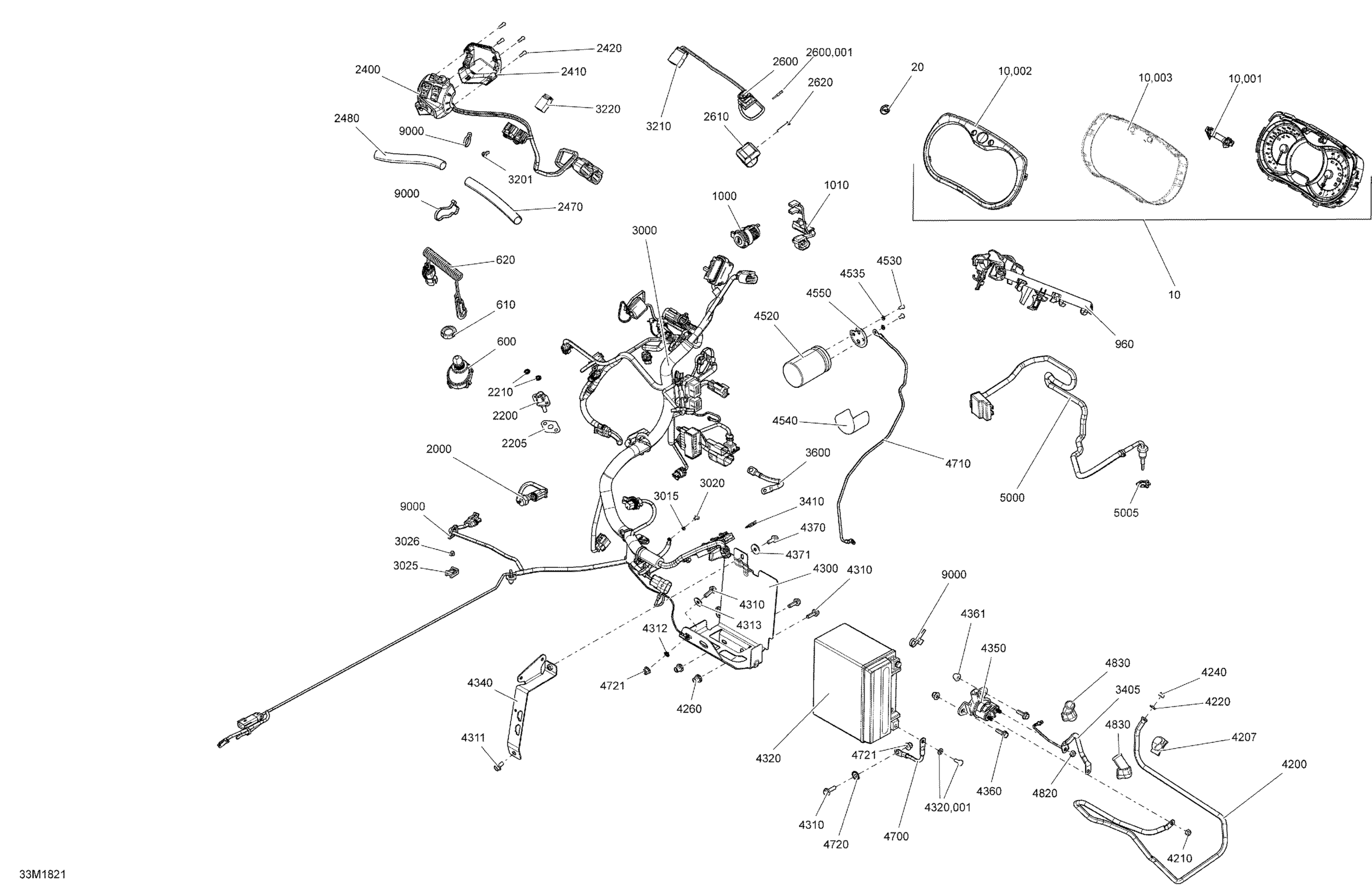

Ski-Doo RENEGADE 600HO E-TEC, 2018 Electrical System Renegade - 600 HO E-TEC - Package X Diagram
