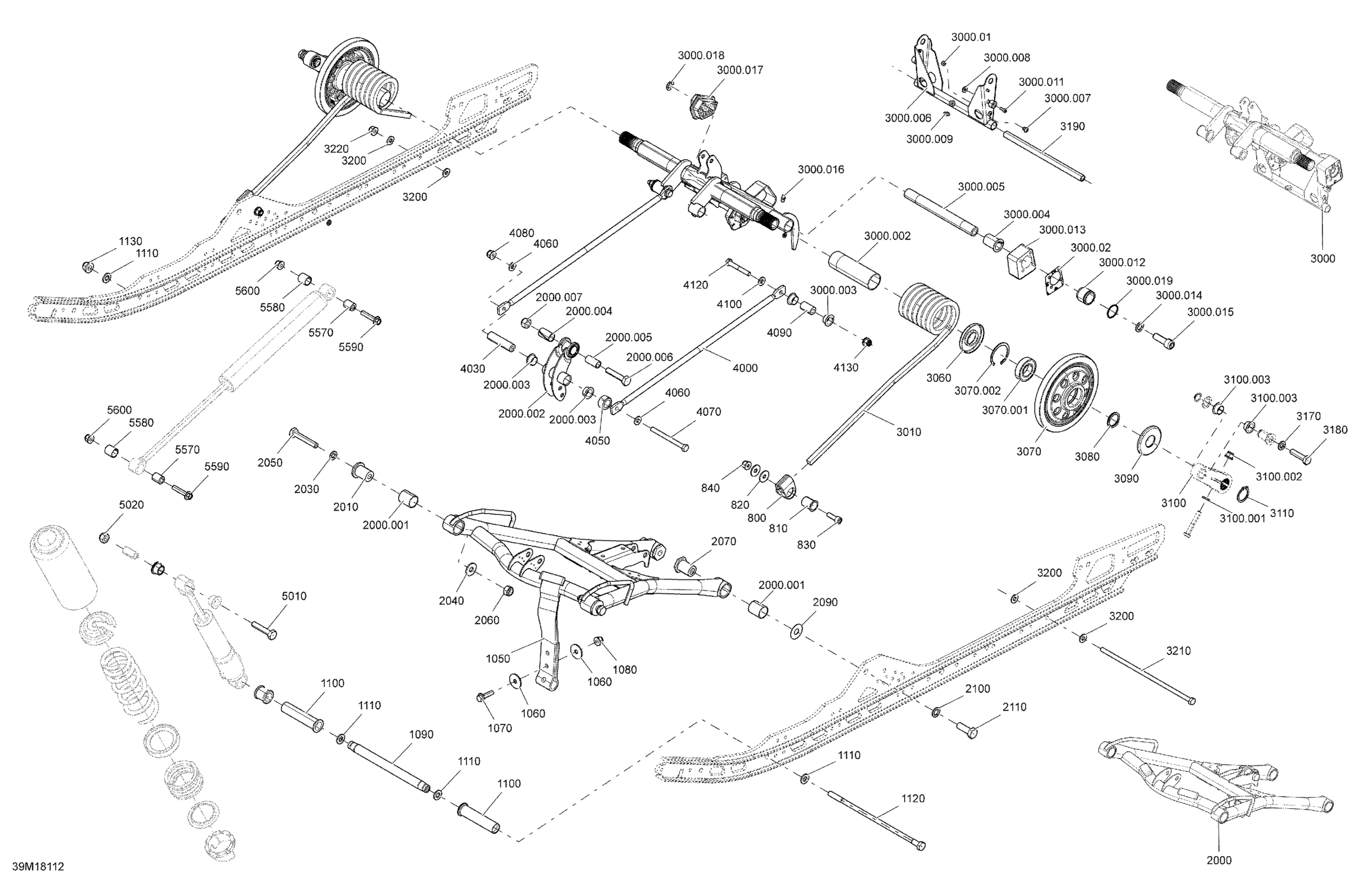

Ski-Doo RENEGADE 600HO E-TEC, 2018 Rear Suspension Renegade - Package Enduro - Superior Diagram

#

Description
Price

800

Spring Support Kit

861805547

$10.99

810

Spring Support Kit

861805547

$10.99

820

Flat Washer 8 mm

234082410

$1.49

830

Socket Screw M8 X 25

205082554

$2.19

840

Elastic Flange Nut M8

233281466

$1.49

1050

Stopper Strap

503192759

$26.99

1060

Flat Washer 8 mm

250200128

$4.49

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.49

1090

Pivot Axle

503193435

$41.99

1100

Center Bushing

503191259

$11.99

1110

Flat Washer

250200143

$3.29

1120

Bolt M10 X 251MM

503193227

$17.49

1130

Flange Elastic Nut M10

233201466

$3.29

2000

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

2000.001

Bushing

503191554

$6.14

2000.002

Rocker

503192531

$78.99

2000.003

Swivel Bushing

503191555

$7.83

2000.004

Bushing

503193037

$16.18

2000.005

Bushing | Includes 240d to 240d1

503189282

$4.34

2000.006

Hex. Screw M10 X 1.5 X 50

207005044

$3.89

2000.007

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Axle

503190698

$21.99

2030

Washer

503192496

$1.49

2040

Washer

503191926

$1.59

2050

Hex. Cap Screw M10 X 60

207006056

$7.69

2060

Elastic Locking Nut M10

233601466

$2.19

2070

Lower Axle

503191966

$15.99

2090

Washer

503190656

$2.99

2100

Washer

503192491

$4.69

2110

Hex. Cap Screw M12 X 35

250000537

$3.29

3000

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

3000.002

Bushing

503192767

$17.39

3000.003

Swivel Bushing

503191555

$7.83

3000.004

Cushion

503191640

$5.93

3000.005

Lower Shaft

503192981

$21.99

3000.006

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$129.99

3000.007

Pop Rivet 3/16"

390402200

$1.49

3000.008

Flat Washer

517225900

$1.49

3000.009

Grease Fitting

408200700

$3.59

3000.01

Elastic Stop Nut M5

232551414

$1.49

3000.011

Socket Head Screw M4X 10

205041060

$2.19

3000.012

Guide Block

503192749

$6.29

3000.013

LH Cam Block

503192918

$15.49

3000.013

RH Cam Block

503192919

$15.49

3000.014

Washer

503192491

$4.69

3000.015

Socket Head Screw M12 X 35

205523554

$4.49

3000.016

Grease Fitting

408200700

$3.59

3000.017

LH Cam Adjuster

503191565

$16.99

3000.017

RH Cam Adjuster

503191566

$16.99

3000.018

E-Circlip

293370013

$1.49

3000.019

O-Ring

503192921

$2.39

3000.02

LH Block Sticker Decal

516004900

$18.99

3000.02

RH Block Sticker Decal

516004901

$18.99

3010

LH Spring

503192081

$69.99

3010

RH Spring

503192080

$69.99

3060

Labyrinth Seal

503190434

$6.19

3070

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

3070.001

Ball Bearing

503193548

$17.99

3070.002

Retaining Ring

415129780

$16.49

3080

Axle Spring

503189146

$9.79

3090

Labyrinth Ring

503192592

$5.09

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$77.99

3100.001

Washer

503192494

$3.29

3100.002

Elastic Flange Nut M8

233281466

$1.49

3100.003

Swivel Bushing

503191555

$7.83

3110

Retaining Ring

293370080

$2.39

3170

Washer

503192496

$1.49

3180

Cap Screw Hex. M10 X 40

207204056

$7.69

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.29

3210

Bolt M8 X 248mm

503192440

$31.99

3220

Elastic Flange Nut M8

233281466

$1.49

4000

Link Rod

503193058

$19.99

4030

Axle Bar

503193063

$39.99

4050

Spacer

503193064

$10.99

4060

Washer

503192494

$3.29

4070

Screw M8 X 120, 10.9

503193499

$18.49

4080

Elastic Flange Nut M8

233281466

$1.49

4090

Axle Bar

503192555

$14.49

4100

Washer

503192494

$3.29

4120

Hex. Screw M8 X 55

207085586

$7.59

4130

Elastic Flange Nut M8

233281466

$1.49

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.89

5020

Elastic Locking Nut M10

233601466

$2.19

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.49

5600

Elastic Flange Nut M8

233281466

$1.49
