Description

Price

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

1040

Elastic Flange Nut M8

233281466

$0.83

1050

Stopper Strap

503194679

$28.43

1060

Washer | Not Shown

503193995

$4.38

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

1080

Hex. Flange Elastic Nut M6

233261466

$1.66

1090

Pivot Axle

503193435

$38.43

1100

Center Bushing

503191259

$8.97

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

$16.12

1130

Flange Elastic Nut M10

233201466

$2.63

2000

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$239.97

2000.001

Hexagonal Nut M6

232061404

$0.32

2000.002

Extended Bushing

503191556

$5.71

2000.003

Grease Fitting

408200700

$2.80

2000.004

Rocker

503193464

$78.43

2000.005

Swivel Bushing

503191555

$5.71

2000.006

Bushing

503193037

$15.35

2000.007

Bushing | Includes 240d to 240d1

503189282

$4.18

2000.008

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

2000.009

Elastic Locking Nut M10 X 1.5

233601416

$1.68

2010

Bushing

503194970

$13.60

2020

Upper Shaft

503193441

$36.12

2030

Washer

503192496

$0.75

2050

Hex. Screw S.Grip M10 X 55

250000605

$6.18

2080

Washer

250200032

$4.98

2100

Flat Washer

250200143

$2.63

2110

Bolt M10 X 251MM

503193227

$16.12

2120

Flange Elastic Nut M10

233201466

$2.63

3000

Rear Arm Ass'y | Included 3000 to 3000q

503194296

$424.58

3000.001

Bushing

503193218

$9.98

3000.002

Swivel Bushing

503191555

$5.71

3000.003

LH Cam Adjuster

503191565

$13.95

3000.004

RH Cam Adjuster

503191566

$13.95

3000.005

E-Circlip

293370013

$0.62

3000.006

Radial Joint

503194035

$69.97

3000.007

Inner Circlip

293370114

$4.38

3000.008

Pivot Arm

503193699

$122.28

3000.009

Hexagonal Nut M6

232061404

$0.32

3000.01

Hex. Screw M8 X 1.25 X 40

207084056

$2.63

3000.011

Elastic Flange Nut M8

233281466

$0.83

3000.012

Grease Fitting

408200700

$2.80

3000.013

Washer

503192494

$3.11

3000.014

Extended Bushing

503191556

$5.71

3010

Black Lh Spring

503192105

$77.66

3010

Black, LH Spring Square

503193158

$77.66

3020

Black, RH Spring Square

503192104

$77.66

3020

Black, RH Spring Square

503193159

$77.66

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$46.12

3070.001

Ball Bearing

503193548

$16.89

3120

Upper Shaft

503193441

$36.12

3130

Bushing

503194970

$13.60

3140

Retaining Ring

503193439

$13.95

3150

Socket Set Screw M6 X 8

206260844

$1.25

3170

Washer

503192496

$0.75

3180

Hex. Screw S.Grip M10 X 55

250000605

$6.18

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Acceleration Link Rod

503192900

$27.66

4030

Axle

503193993

$15.35

4060

Washer

503192494

$3.11

4070

Screw M8 X 90

503193372

$4.28

4080

Elastic Flange Nut M8

233281466

$0.83

4090

Axle

503193993

$15.35

4100

Washer

503192494

$3.11

4120

Screw M8 X 90

503193372

$4.28

4130

Elastic Flange Nut M8

233281466

$0.83

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5020

Elastic Locking Nut M10

233601466

$1.74

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83

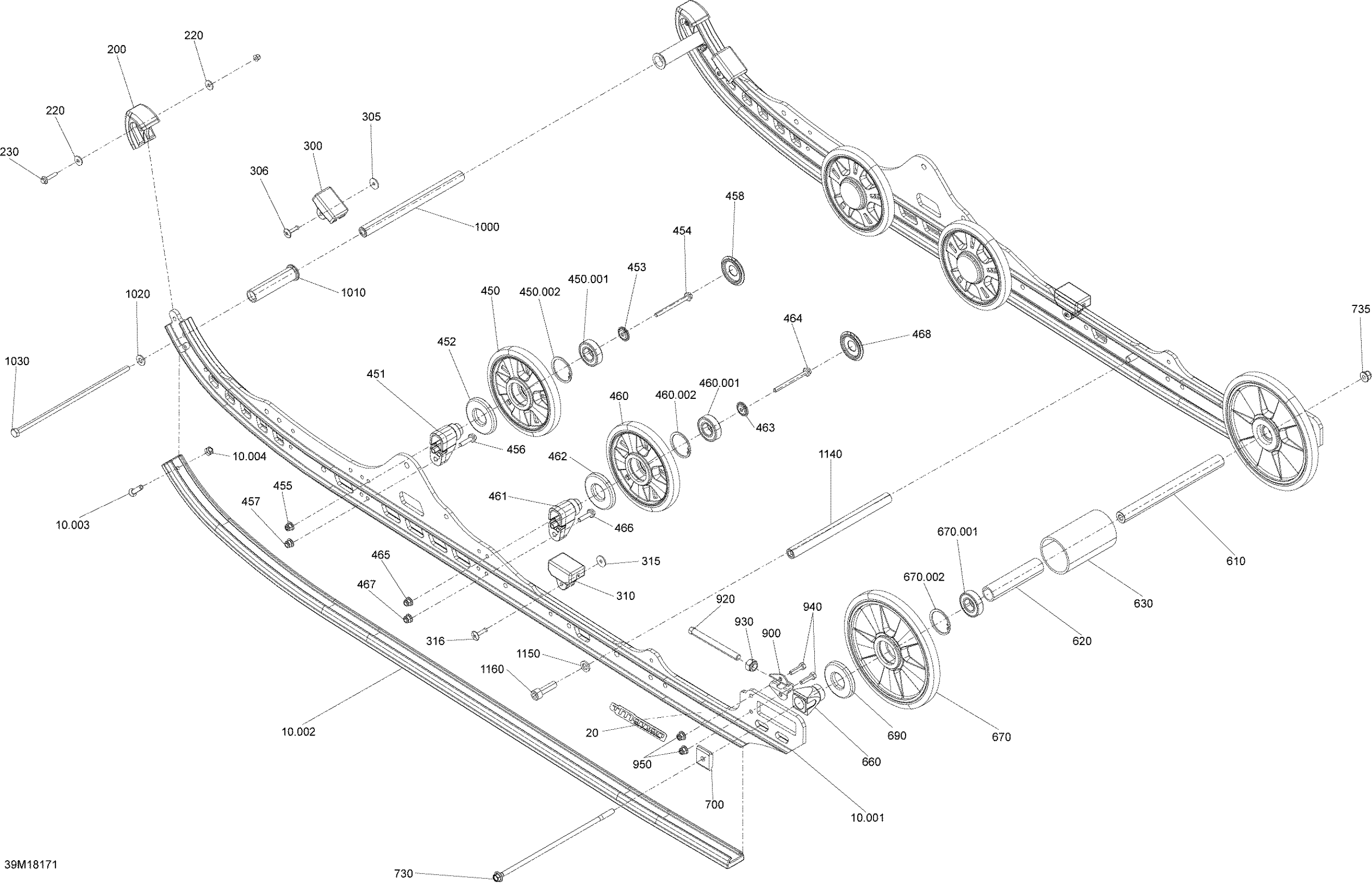

Ski-Doo RENEGADE 600HO E-TEC, 2018 Rear Suspension Renegade - 600HO E-TEC - Package BackCountry - Superior Diagram
