Description

Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

2

Tridon Gear Clamp

293650172

$2.68

3

Formed Hose | Without Catalyst

276000246

$14.92

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

5

T-Fitting

293710116

$14.27

6

Tridon Gear Clamp

293650171

$2.46

7

Was 276000001 Hose 12.5 mm

219704394

$42.87

8

Tridon Gear Clamp

293650172

$2.68

9

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

10

Tridon Gear Clamp

293650051

$3.61

11

Coolant Tank

276000086

$87.72

12

Pressure Cap | Includes 720 to 720a

276000100

$20.77

13

COOLANT TANK BRACKET - Call your local BRP dealership

204300211

Unavailable

14

Pop Rivet 3/16"

293150039

$1.37

15

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.

204130176

Unavailable

16

Tie Wrap 142 mm

293750002

$0.88

17

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

18

Tridon Gear Clamp

293650051

$3.61

19

Tridon Gear Clamp

293650019

$4.81

20

Was 275500549 Hose 1/4"

219704357

$183.82

21

Oetiker Gear Clamp

293650025

$2.46

22

Polyurethane Hose 10000Mm Long

219704410

$46.12

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

24

Tie Wrap 142 mm

293750002

$0.88

25

LH RADIATOR HOSE - Call your local BRP dealership

276000250

$23.05

26

RH Radiator Hose

276000248

$45.47

27

Tridon Gear Clamp

293650045

$4.51

28

Tridon Gear Clamp

293650045

$4.51

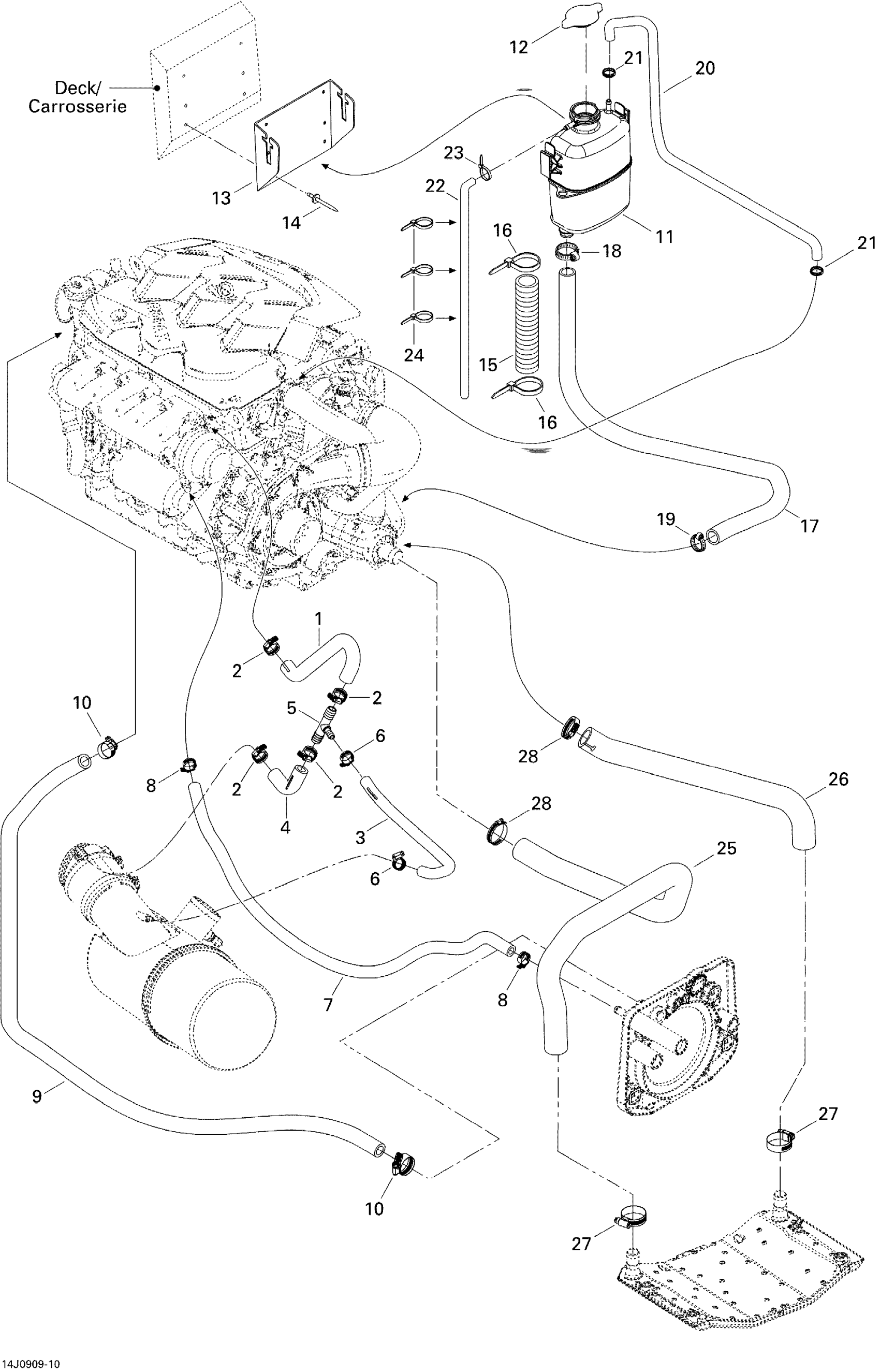

Sea-doo 180 Challenger, 1 x 215 SCIC, 2009 Cooling System Diagram

COOLANT TANK BRACKET - Call your local BRP dealership

SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132.
