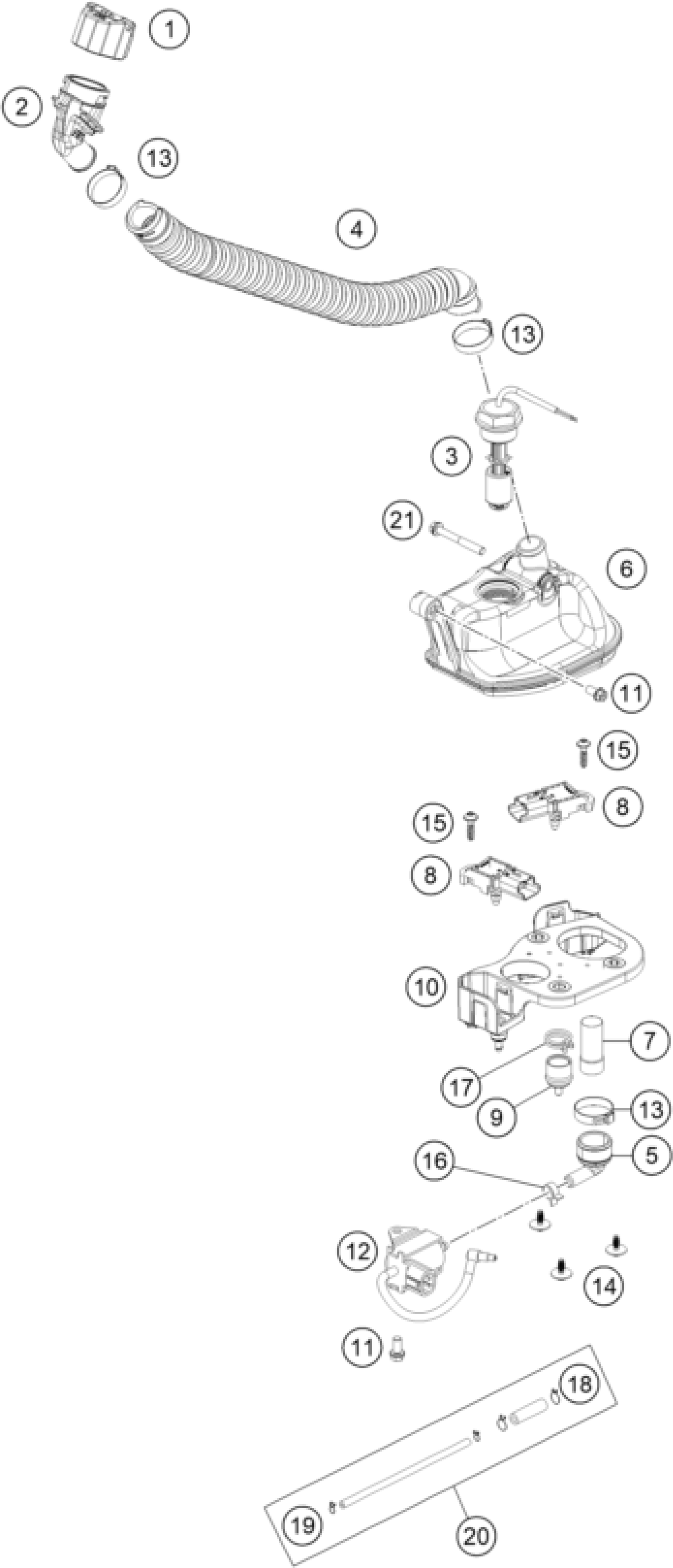

KTM 150 XC-W TPI 2020 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Oilfillercap cpl.

55638070033

Unavailable

2

Filler plug oil tank

55638061020

Unavailable

3

Oil level sensor

55638062000

Unavailable

5

Angle piece oil tank

55738061060

Unavailable

6

Oil tank

55738061000

Unavailable

7

Oil Screen

61238016100

Unavailable

8

Crankcase Presure Sensor CCP

55641075000

Unavailable

9

Sensor cover

55738061070

Unavailable

10

Oil pump bracket

55738061040

Unavailable

11

Hex collar screw M6x12 ISA30 s

0025060126S

Unavailable

12

Oil pump

55638064000

Unavailable

13

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

Unavailable

4

Tube

55638065200

Unavailable

15

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

14

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

17

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

19

Clamp 2

55538087000

Unavailable

18

Clamp 1

55538086000

Unavailable

20

Tube set, oil tank

55538083044

Unavailable

21

HH collar screw M6x50 TX30

0025060506

Unavailable
