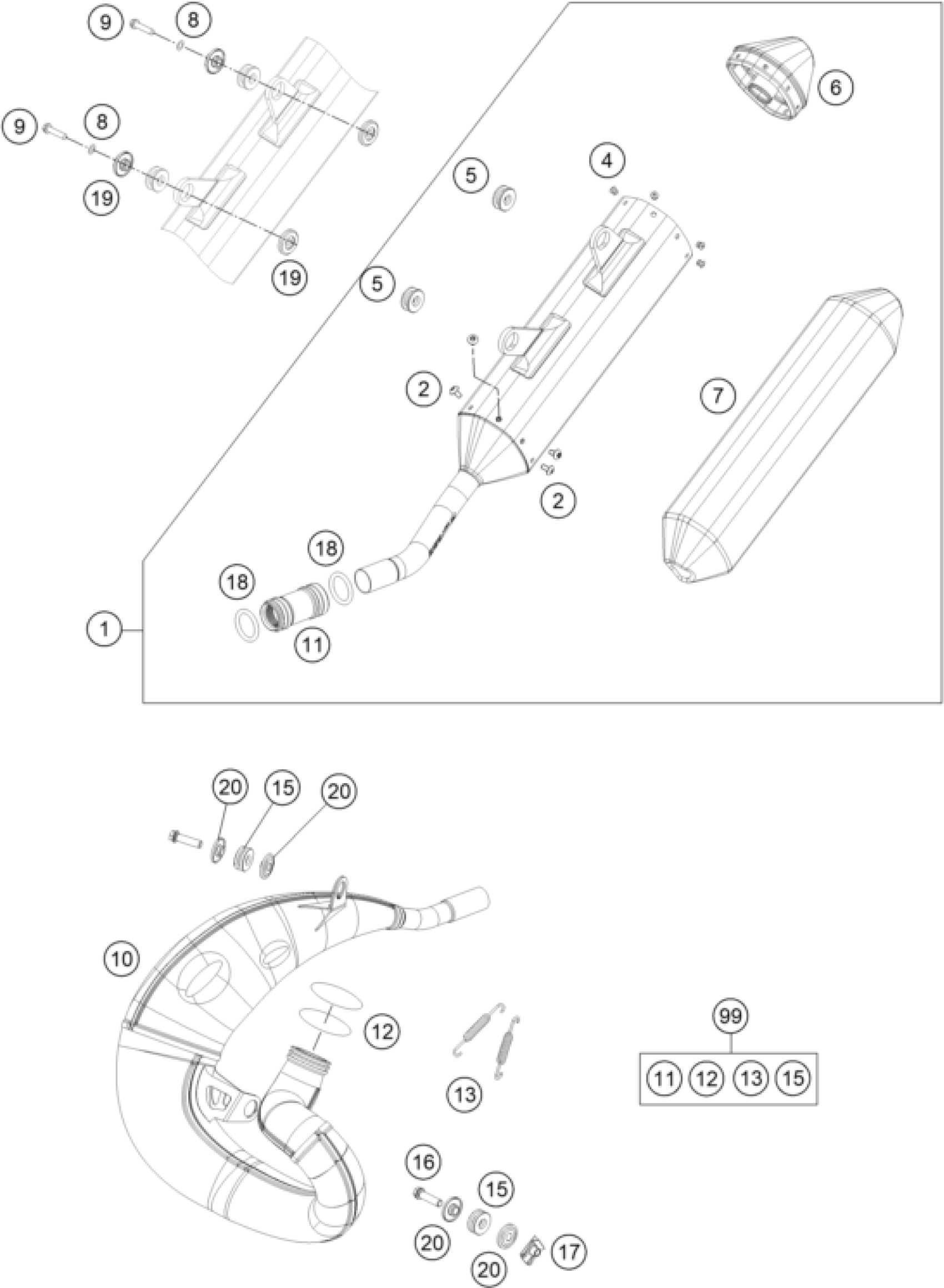

KTM 150 XC-W TPI 2020 EXHAUST SYSTEM Diagram

#

Description
Price

1

silencer EXC

51705083000

Unavailable

2

SCREW TORX M5X10

78105081010

Unavailable

4

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

5

DAMP. COMPON. BLACK

77205068000

Unavailable

6

Endcap cpl.

51705083060

Unavailable

7

stuffingyarn package

51705083085

Unavailable

8

Pair of washers M6 NORDLOCK

50233041000

Unavailable

9

HH collar screw M6x30 TX30

0025060306

Unavailable

10

Manifold

51705007000

Unavailable

11

exhaust rubber

50405057000

Unavailable

12

O-ring 38x3 VITON

0770380030

Unavailable

13

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

15

Damper gray

79105068000

Unavailable

16

HH collar screw M8x30

0025080306

Unavailable

18

Hose spring

50405058000

Unavailable

19

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

20

BUSHING 8.5x12x28x8.3

77805069000

Unavailable

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable

17

RANGE CHANGE METAL NUT M8

54603048000

Unavailable
