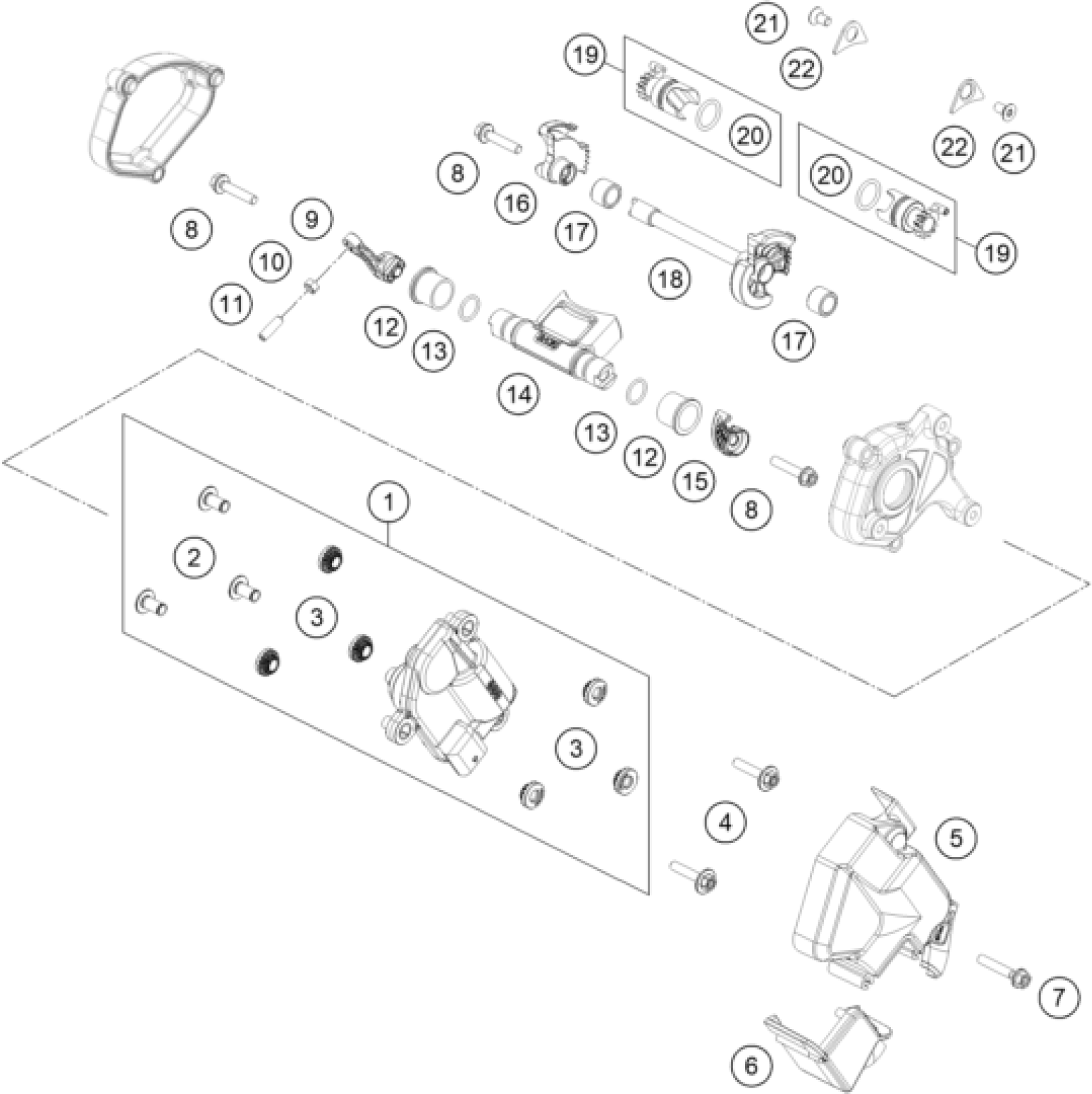

KTM 150 XC-W 2026 EXHAUST CONTROL Diagram

#

Description
Price

1

Exhaust control actuator cpl.

A45041072033

Unavailable

2

Actuator bushing

A45041072010

Unavailable

3

Damper actuator

A45041072005

Unavailable

4

HH collar screw, M5x25, ISA 30

0000240502500S

Unavailable

5

Actuator protection cap

A42037096000

Unavailable

6

Actuator protection cap

A42037096020

Unavailable

7

HH COLLAR SCREW M5X30 TX30

0025050306

Unavailable

8

HH collar screw M5x25 TX30

0025050256S

Unavailable

9

Control lever

A42037057000

Unavailable

10

Nut M5 SW7

0934050040

Unavailable

11

Grub screw M5x16 with AH

0913050160

Unavailable

12

exaust flap bushing

50437023100

Unavailable

13

O-ring 12x1.5 FPM75

07700120151

Unavailable

14

Control flap

A43037020000

Unavailable

15

Control flap lever

A42037080000

Unavailable

16

Right control gate

A42037065100

Unavailable

17

needle sleeve HK 1010 10x14x10

0618101410

Unavailable

18

Idler shaft cmpl.

A42037070033

Unavailable

19

Exhaust roller rh

A42037063000

Unavailable

20

O-RING 14X2 FPM 75SH

0770140201

Unavailable

21

hex lobe countersunc screw M5x

0019050106S

Unavailable

22

Retaining bracket crankshaft b

75030085100

Unavailable
