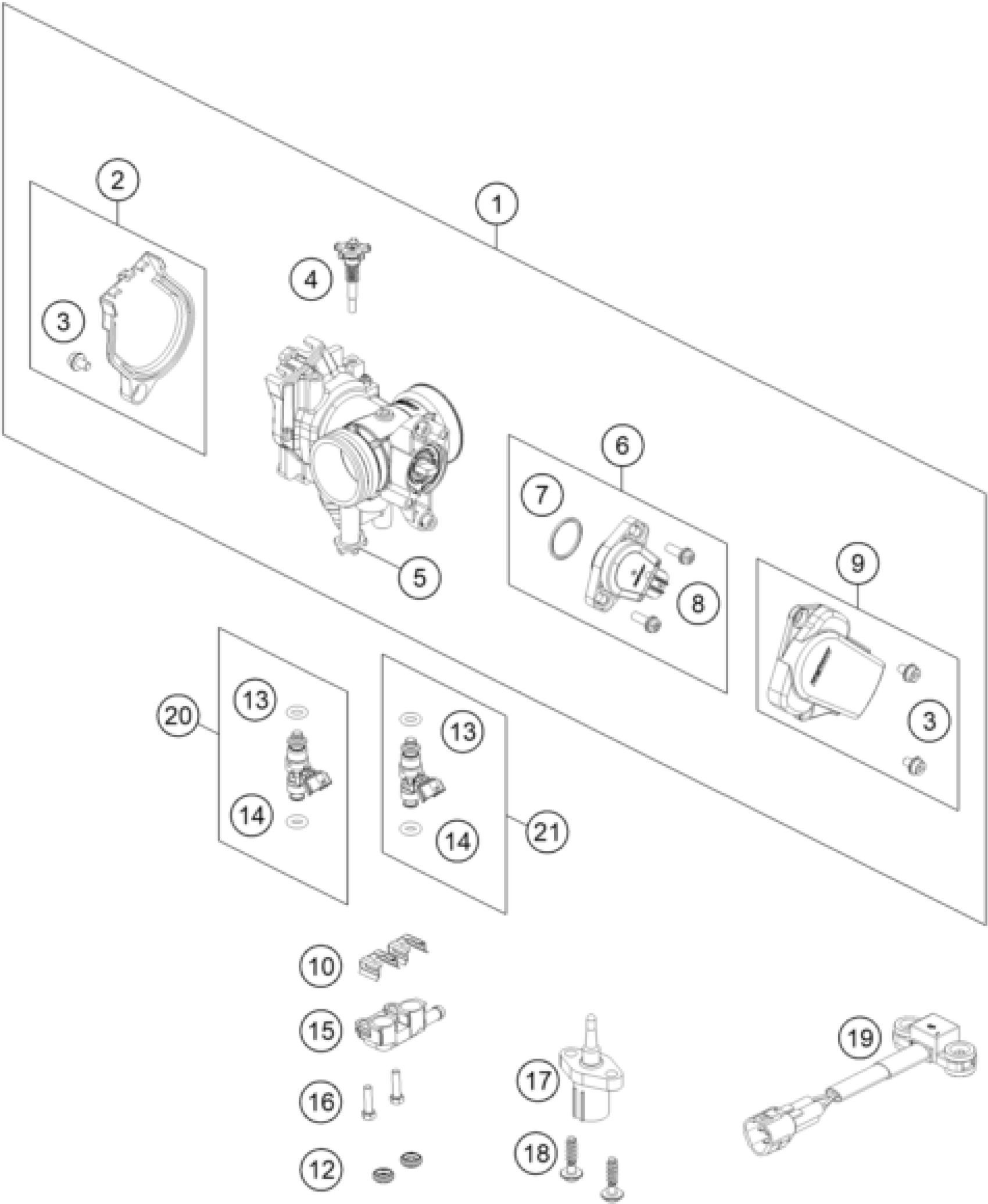

KTM 150 XC-W 2024 THROTTLE BODY Diagram

#

Description

Price

1

Throttle body

A44041101000

Unavailable

2

DKK Cover cpl.

79141056044

Unavailable

3

SPECIAL SCREW

79041056020

Unavailable

4

STOP SCREW SET

A44041060044

Unavailable

5

STARTER VALVE CPL.

79041070000

Unavailable

6

TPS CPL.

79041077044

Unavailable

7

O-RING

75041077110

Unavailable

8

SCREW THROTTLE POS. SENSOR

61041077020

Unavailable

9

TPS Cover cpl.

79141078044

Unavailable

10

Injector clip

55441017000

Unavailable

21

Injector

A44041023044

Unavailable

12

Protective ring

55441024000

Unavailable

13

O-ring

55641023020

Unavailable

14

O-ring

55641023010

Unavailable

15

Fuel manifold

A42041006000

Unavailable

16

HH collar screw M5x16 TX30

0025050166

Unavailable

17

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

18

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

19

Roll-over sensor

A46041088000

Unavailable

20

Injector

A43041023044

Unavailable
