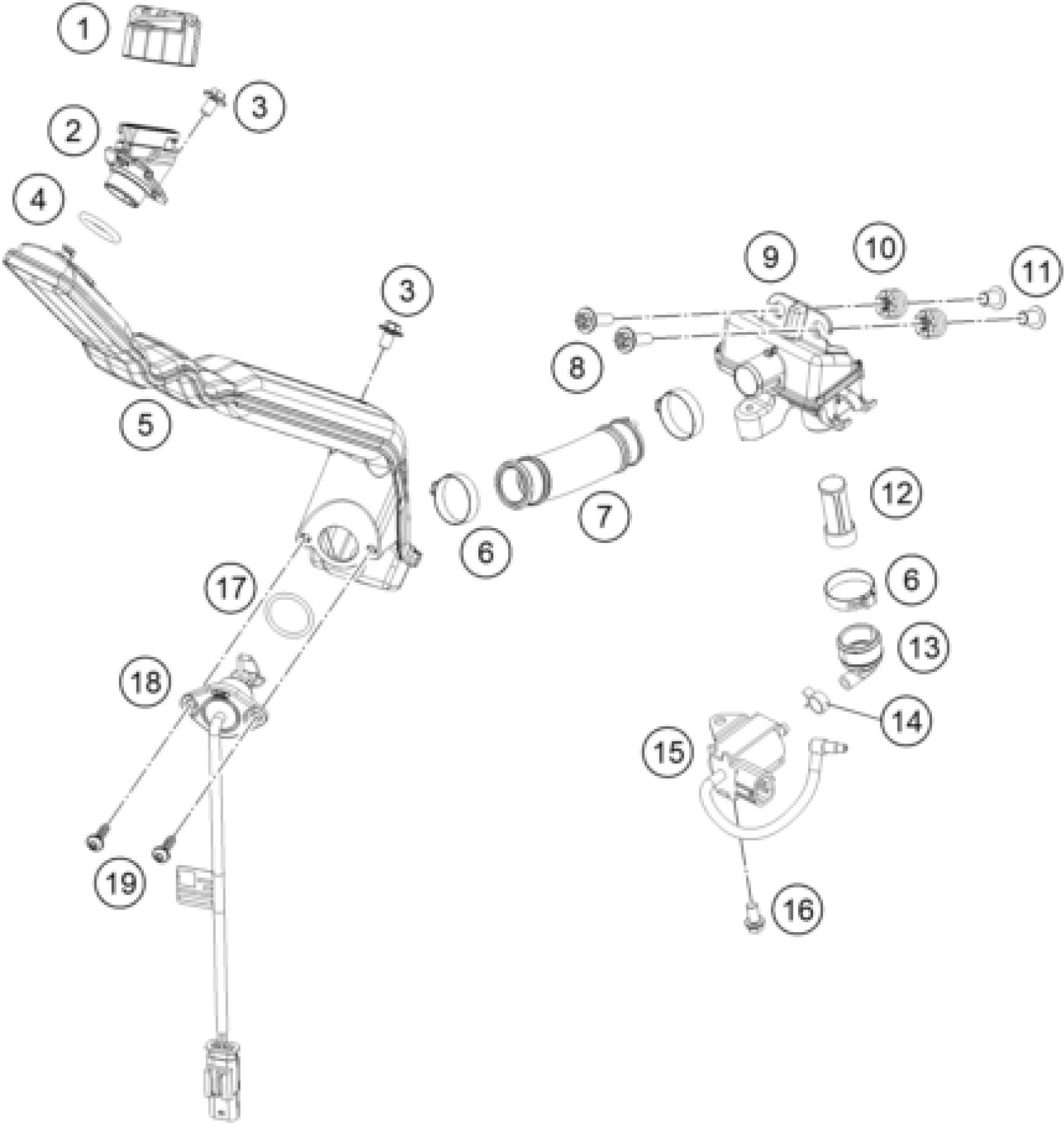

KTM 150 XC-W 2024 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Oilfillercap cpl.

55638070033

Unavailable

2

Oil tank filler neck

A45038061030

Unavailable

3

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

4

O-RING 20,22X3,53 NBR70

0770202353

Unavailable

5

Oil tank breast pipe

A45038061205

Unavailable

6

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

Unavailable

7

Hose oil tank

A45038061210

Unavailable

9

Oil tank, shock absorber seat

A45038061020

Unavailable

8

HH collar screw M6x20 TX30

0024060206

Unavailable

10

RUBBER SLEEVE 7X10,8X16MM

76014069051

Unavailable

11

COLLAR BUSHING 6,2X7,5X13X12

76014062000

Unavailable

12

Oil screen

61238016200

Unavailable

13

Angle piece, oil tank

A45038061060

Unavailable

14

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

15

Oil pump

55638064000

Unavailable

16

Hex collar screw M6x10 ISA30 S

0025060106S

Unavailable

17

o-ring 24.00x2.50 Viton

07700240251

Unavailable

18

Oil lever sensor

A45038062000

Unavailable

19

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
