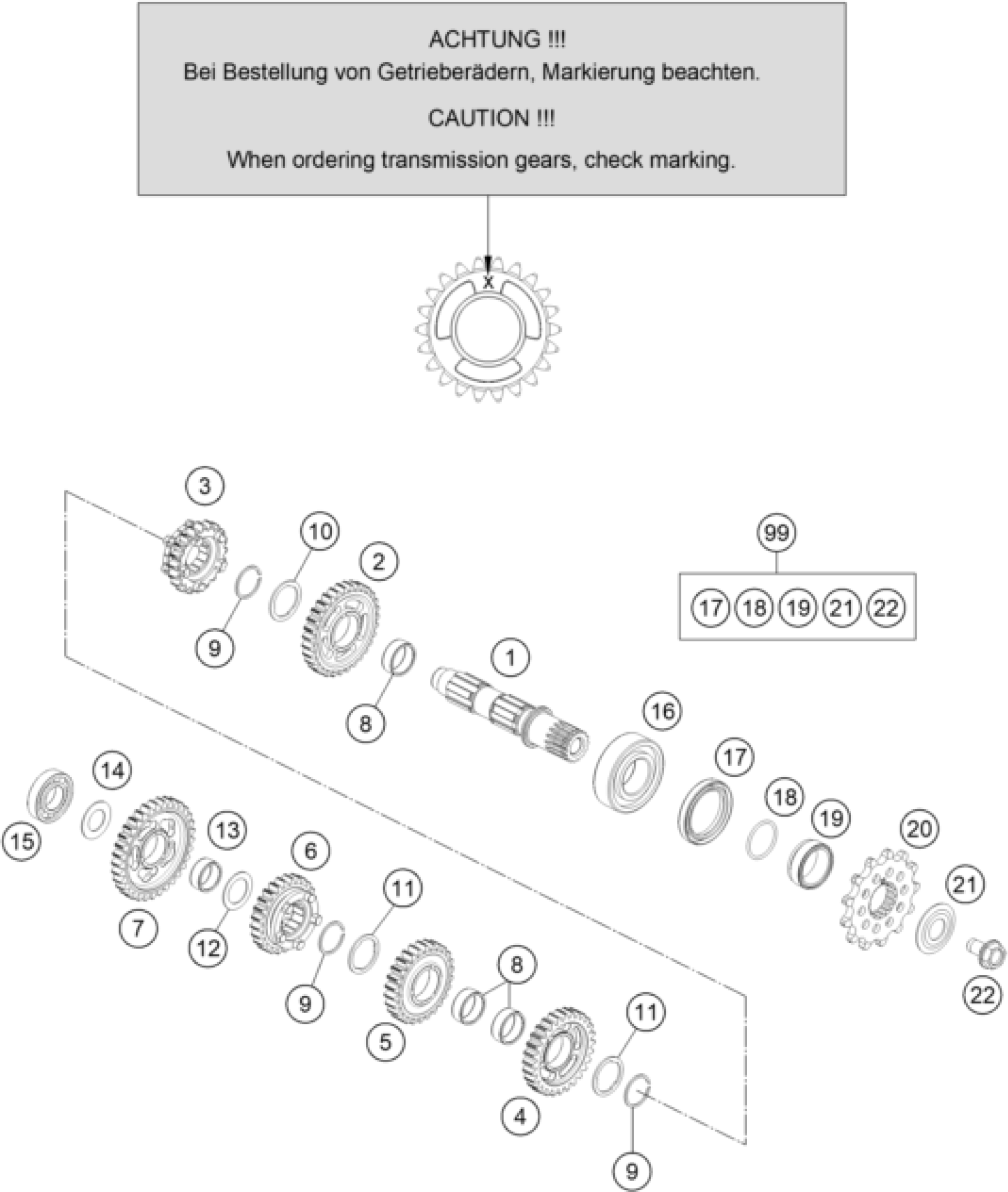

KTM 150 XC-W 2023 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

pinion shaft

50533010100

Unavailable

2

Idler gear, 2nd gear, teeth=31

50533112000

Unavailable

3

Sliding gear, 6th gear, teeth=

50533116000

Unavailable

4

Idler gear, 3rd gear, not=28

50533013000

Unavailable

5

Idler gear, 4th gear, teeth=26

50533114000

Unavailable

6

Sliding gear, 5th gear, teeth=

50533115000

Unavailable

7

Idler gear, 1st gear, teeth=33

50533111000

Unavailable

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

9

CIRCLIP WS24

0417024000

Unavailable

10

STOP DISC 24X32X1,5

77733044000

Unavailable

11

STOP DISC 23,4X31X1,5

77733043000

Unavailable

12

STOP DISC 20,2X30X1

54833080000

Unavailable

13

NEEDLE BEARING K20X24X10

0405202410

Unavailable

14

STOP DISC 17,2X30X1

56033030000

Unavailable

15

GROOVED BALL B. 16003 C4 J1

0625160031

Unavailable

16

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

17

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

18

O-RING 23,00X2,00 NBR70

0770230020

Unavailable

19

SPACER BUSHING 12,4 MM

50433030000

Unavailable

20

Sprocket 13-t

79233029013

Unavailable

21

Spring washer 17.2X40X1.5

59033034000

Unavailable

22

HH COLLAR SCREW M10X18 10.9

59033029000

Unavailable

99

Counter shaft repair kit 125/1

50533010110

Unavailable
