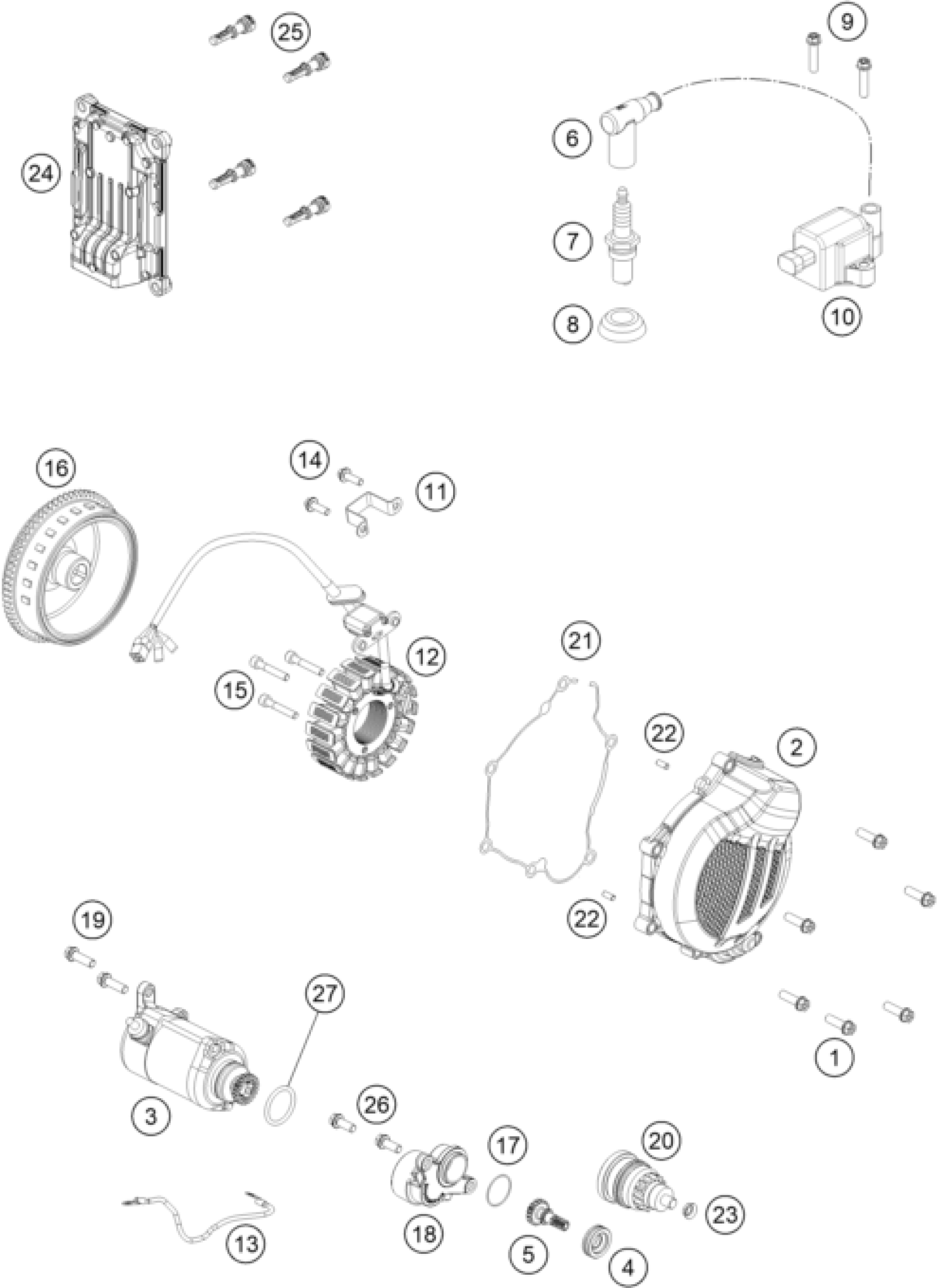

KTM 150 XC-W 2023 IGNITION SYSTEM Diagram

#

Description
Price

6

Ignition wire

55639007100

Unavailable

7

Spark plug

51739193000

Unavailable

8

Sealing boot

51739091000

Unavailable

9

HH collar screw M6x25 TX30

0025060256

Unavailable

10

Iginition coil

55639006000

Unavailable

11

PICKUP BRACKET

50439004010

Unavailable

12

Stator

51739104000

Unavailable

13

starter cable

51711059000

Unavailable

14

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

15

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

16

Flywheel

51739105000

Unavailable

2

Ignitioncover EXC

5173010200015

Unavailable

1

HH collar screw M6x25 TX30

0025060256

Unavailable

21

GASKET IGNITION COVER

50430040000

Unavailable

22

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

20

BENDIX

50440026000

Unavailable

3

electric starter assy.

51740001033

Unavailable

18

Console cpl.

51740012033

Unavailable

4

Bushing cmpl.

51740002033

Unavailable

23

COLLAR BUSHING

55140030100

Unavailable

17

O-ring, 23x1 NBR 70

0770230010

Unavailable

5

Twin gear

51740014000

Unavailable

24

Control device EFI

55641031000

Unavailable

25

Holder control unit

55641030000

Unavailable

26

HH collar screw M6x16 TX30

0025060166

Unavailable

27

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

19

HH collar screw M6x20 TX30

0025060206

Unavailable
