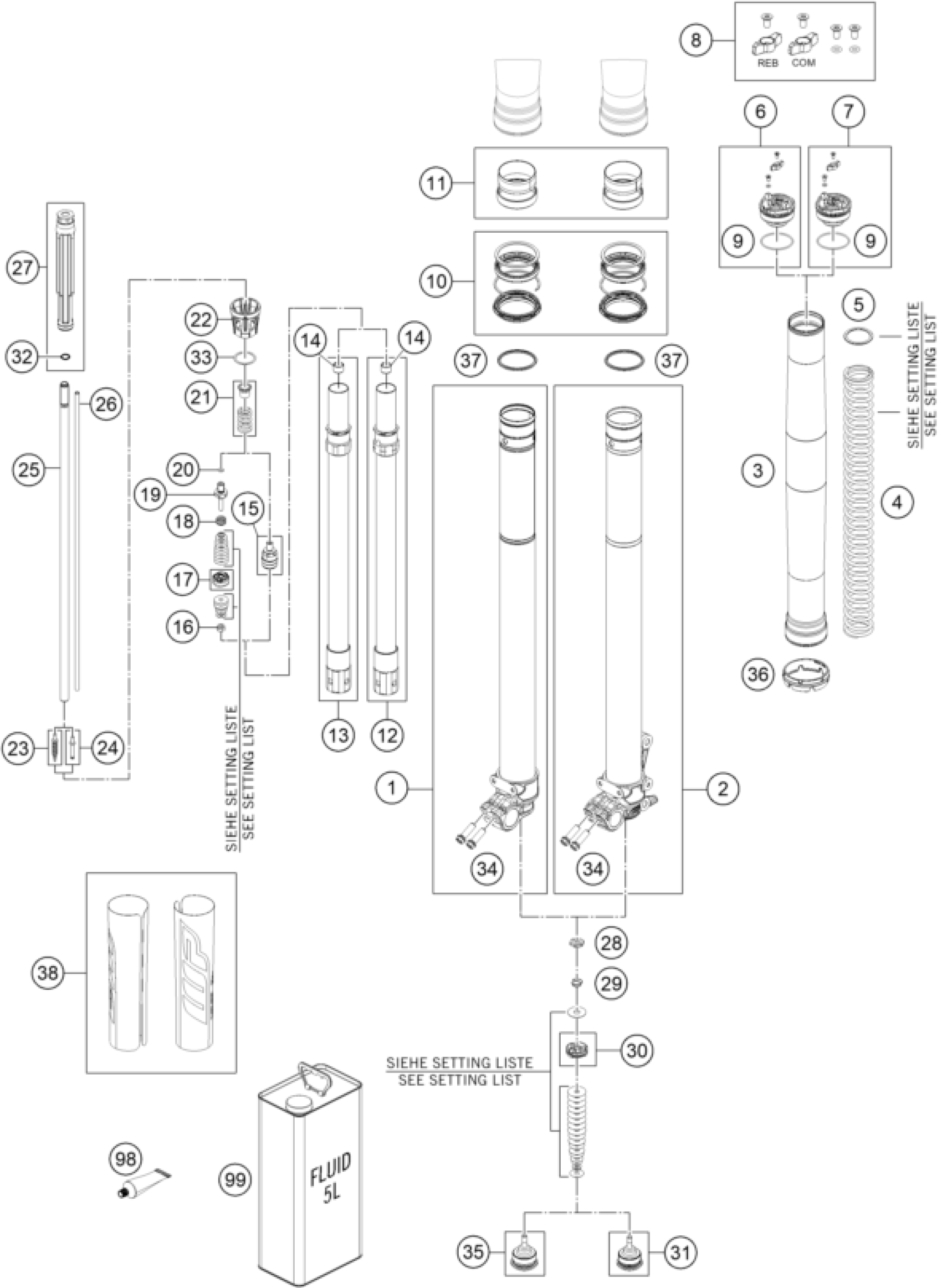

KTM 150 XC-W 2023 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axleclamp OC right cpl. with t

48601933S1

Unavailable

2

Axleclamp OC left cpl. with tu

48601932S1

Unavailable

3

fork outer tube 49.13x577 dt54

48602096

Unavailable

4

Spring (43,8) 3,6-470

91410098S

Unavailable

4

SPRING 3,8N/MM SET D=4,9MM

91410099S

Unavailable

4

SPRING 4,0N/MM SET D=4,9MM

91410100S

Unavailable

4

SPRING 4,2N/MM SET D=4,9MM

91410101S

Unavailable

4

SPRING 4,4N/MM SET D=4,9MM

91410102S

Unavailable

4

FORK SPRING L= 470 4,6 N/MM SE

91410103S

Unavailable

4

SPRING 4,8N/MM SET D=4,9MM

91410104S

Unavailable

4

SPRING 5,0N/MM SET D=4,9MM

91410105S

Unavailable

4

SPRING 5,2N/MM SET

91410106S

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable

6

screw cap M51x1,5 rebound cpl.

48602028S4

Unavailable

7

screw cap M51x1.5 compression

48602028S3

Unavailable

8

Adjuster kit screw cap

RP10021

Unavailable

9

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

10

"Seal kit 48mm SKF black"

RP10012T

Unavailable

11

Guide bushing set fork 48mm

R14047T

Unavailable

12

Tube, including screw sleeve w

48600763S7

Unavailable

13

tube incl. screw sleeve

48600763S6

Unavailable

14

Guide bushing 12x14x10

48600430

Unavailable

15

Tap compression cpl.

48601843S3

Unavailable

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

17

Midvalve piston assembly d23

48602002S

Unavailable

18

Spring (11,4) 0,4-8 valve

48600382

Unavailable

19

Tap 6x46 rebound

48600576

Unavailable

20

O-ring 6x1,2 NBR70

48600299

Unavailable

21

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

22

Spring retainer 27,08x43x45

48601298

Unavailable

23

Needle 4,5x43,6 cpl.

48600277S

Unavailable

24

Needle 4,5x38,2 cpl.

48601558S

Unavailable

25

Piston rod 12x554

48600568

Unavailable

26

Adjustment tube 6x524,6

48602036

Unavailable

27

Stop 12,4x31,9x200,3 kpl.

S228700003S0100

Unavailable

28

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

29

Spring (10,2) l5 check valve

48600611

Unavailable

30

Piston 6x27,3x9 compression cp

48601934S

Unavailable

31

Screw cap M29,3x1 OC split cpl

48601553S

Unavailable

32

O-ring 11x2,5 NBR70 PTFE yello

04500003

Unavailable

33

Shim 27,5x33x0,3

48601702

Unavailable

34

HH collar screw M8x25

0025080256

Unavailable

35

Screw cap M29,3x1

48601980S

Unavailable

36

Fork protection ring 60,1mm

48601948

Unavailable

37

Stroke indicator 48mm red

48602007

Unavailable

38

Sticker set Xplor OC 238x182.5

52000238SET

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable
