Partiron

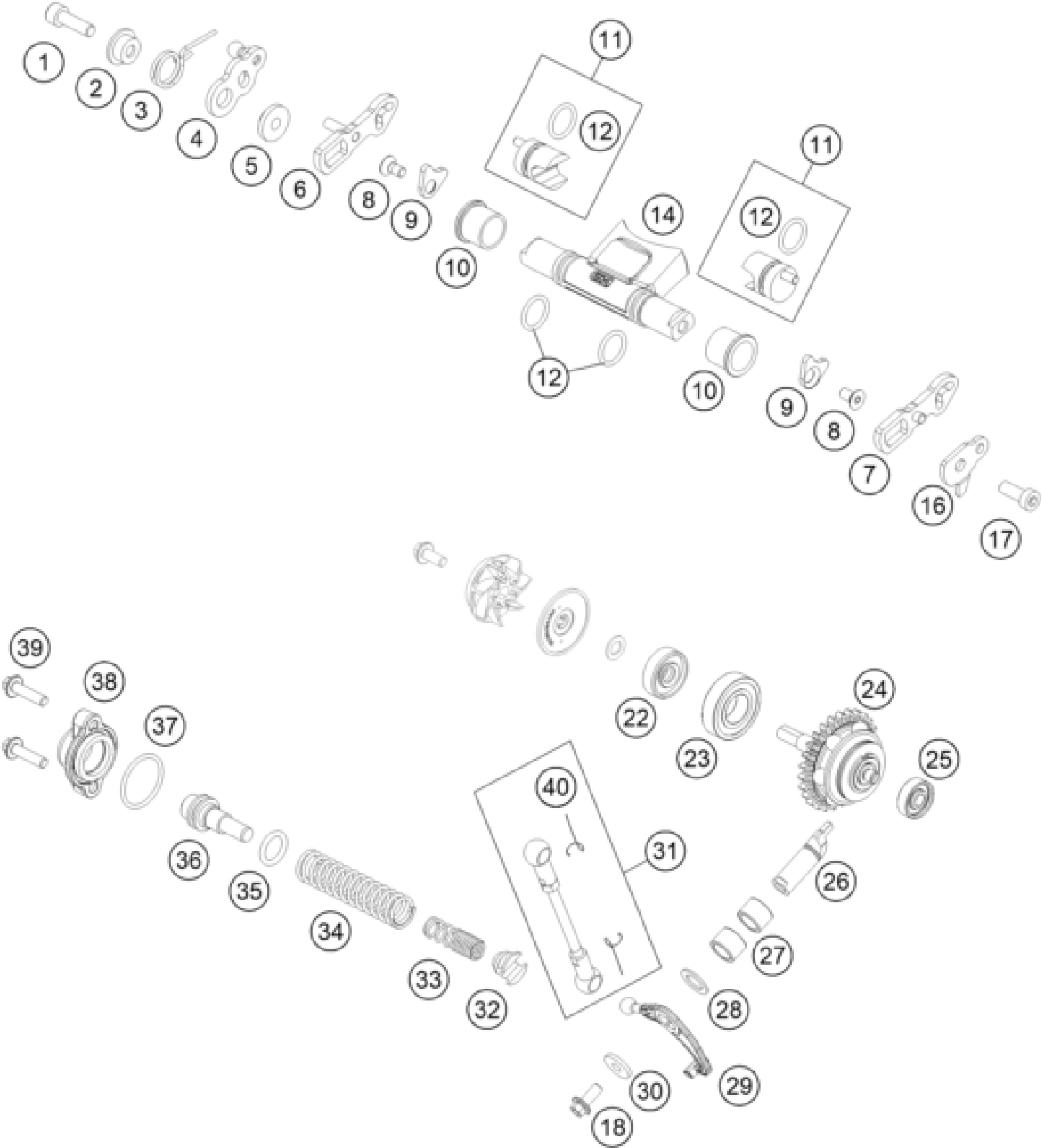

KTM 150 XC-W 2023 EXHAUST CONTROL Diagram

#

Description
Price

1

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

2

SPRING SLEEVE

54637067000

Unavailable

3

OVERLOAD SPRING

54637066000

Unavailable

4

CONTROL LEVER WITH BALL TYPE

54637065000

Unavailable

5

BUSHING SLEEVE

54637068100

Unavailable

6

SLOTTED LEVER R/S

50437065044

Unavailable

7

SLOTTED LEVER L/S

50437064044

Unavailable

8

hex lobe countersunc screw M5x

0019050106S

Unavailable

9

securing plate

50437079100

Unavailable

10

exaust flap bushing

50437023100

Unavailable

11

Power valve cmpl.

51737061044

Unavailable

12

O-RING 14X2 FPM 75SH

0770140201

Unavailable

14

EXHAUST FLAP

51637020000

Unavailable

16

STOP PLATE

50437085000

Unavailable

17

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

18

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

22

SHAFT SEAL RING 8X24X7 A DUO

0760082472

Unavailable

23

BALL BEARING 16002 C3

0625160020

Unavailable

24

Centrifugal force unit

50537050144

Unavailable

25

Grooved ball bearing 626LLBC3/

54637098100

Unavailable

26

ADJUSTING LEVER 125/150 2016

50437057100

Unavailable

27

needle sleeve HK 1010 10x14x10

0618101410

Unavailable

28

SHIM WASHER DIN988 10X16X1

0988101610

Unavailable

29

Power valve control lever

47237056100

Unavailable

30

WASHER DIN7349-5X15X2

0349000050

Unavailable

31

CONNECTING ROD CPL.

50437095044

Unavailable

32

SPRING INSERT

54637071200

Unavailable

33

SUPPORT SPRING

50437069050

Unavailable

34

Adjustment spring

51737069000

Unavailable

35

O-RING 12,37X2,62 NBR70

0770021120

Unavailable

36

SPRING GUIDE 250/300

54837075000

Unavailable

37

O-RING 24,00X2,00 NBR70

0770240020

Unavailable

38

Closing cover 250-360

54637070300

Unavailable

39

HH COLLAR SCREW M 5X20 WS=6

0014050203

Unavailable

40

SECURING DIN-71805-S-8

50237195055

Unavailable
