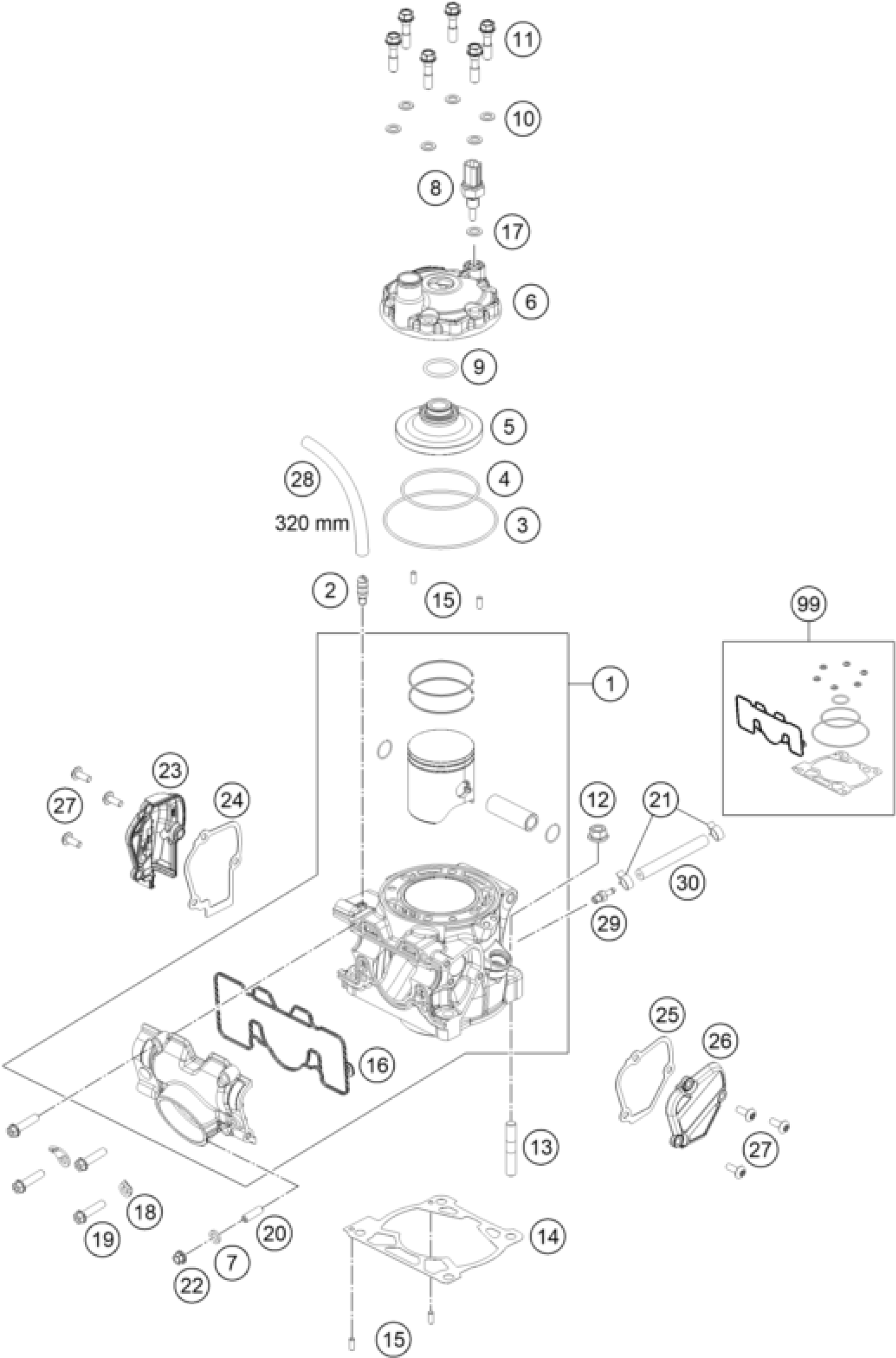

KTM 150 XC-W 2023 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder + Pistom cpl. 150 End

51730138200

Unavailable

2

VACUUM CONNECTION M6

78036020090

Unavailable

3

O-RING 89X2 NBR 70 SH

0770890200

Unavailable

4

O-RING 64X2 FPM 80SH

0770640200

Unavailable

5

Comustion chamber insert

51730060000

Unavailable

6

cylinder head

51730106000

Unavailable

7

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

8

water temperature sensor

79435047000

Unavailable

9

O-ring 23.00X2.5 NBR 70 SH

07702300251

Unavailable

10

CU-SEAL RING DIN7603- 7,3X12X1

0603070121

Unavailable

11

CYLINDER HEAD SCREW

50430079000

Unavailable

12

HH COLLAR NUT M 8 WS=12

50330045000

Unavailable

13

STUD DIN 835 M8X32

0835080326

Unavailable

14

CYLINDER BASE GASKET 0.15MM

50430035015

Unavailable

14

CYLINDER BASE GASKET 0.20MM

50430035020

Unavailable

14

CYLINDER BASE GASKET 0.25MM

50430035025

Unavailable

14

CYLINDER BASE GASKET 0.40MM

50430035040

Unavailable

14

CYLINDER BASE GASKET 0.50MM

50430035050

Unavailable

14

CYLINDER BASE GASKET 0.75MM

50430035075

Unavailable

15

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

16

GASKET CONNECTION FLANGE

50437046000

Unavailable

17

o-ring 10.00x2.00 silicone

0770100020

Unavailable

18

RETAINING PLATE

51005074000

Unavailable

19

HH collar screw M6x25 TX30

0025060256

Unavailable

20

THREAD PIN DIN0913-M 6X20

0913060203

Unavailable

21

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

22

COLLAR NUT M6X1 SW8

77336088106

Unavailable

23

EXHAUST CONTROL COVER R/S

5043700700033

Unavailable

24

Exhaust ctrl cover gasket rhs

50437008100

Unavailable

25

Exhaust ctrl cover gasket lhs

50437006100

Unavailable

26

EXHAUST CONTROL COVER L/S

5043700500033

Unavailable

27

Roundhead screw, M5x14 TX25

58605083114

Unavailable

28

HOSE EPA D=6/10 PER METER

78015019001

Unavailable

29

Vacuum connection

55430023000

Unavailable

30

tube 3,2x9.0 L=75mm

61041095075

Unavailable

99

CYLINDER GASKET SET 125/150 16

50430097000

Unavailable
