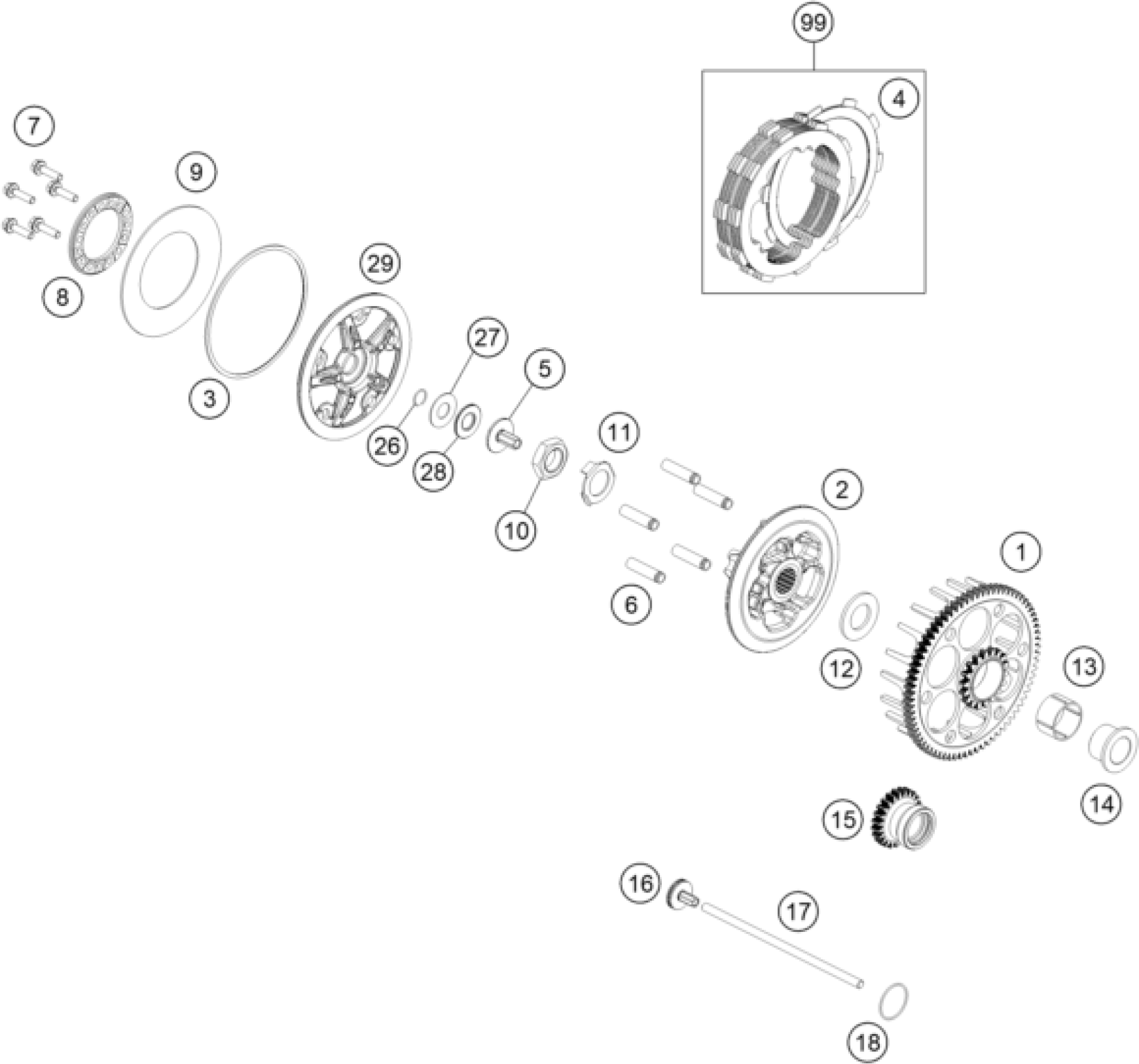

KTM 150 XC-W 2023 CLUTCH Diagram

#

Description

Price

1

clutch basket

50532001173

Unavailable

2

Inner clutch hub

50532002000

Unavailable

3

Inner ring

50532013000

Unavailable

4

Friction plate 2 mm

50532111000

Unavailable

5

PRESSURE PIECE

78032057000

Unavailable

6

Sleeve 7.95x31.65

50532004100

Unavailable

7

HH collar screw M5x20 TX30

0025050206

Unavailable

8

Spring plate

50532006000

Unavailable

9

Clutch spring

50532005000

Unavailable

10

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

11

locking plate

78132018100

Unavailable

12

Supporting plate 20x36x2.5

50532017000

Unavailable

13

Needle cage K263017

0405263017

Unavailable

14

Collar 20x26x19,5

50532015000

Unavailable

15

gear primary drive

50532023023

Unavailable

16

PRESSURE PIECE CPL. 08

78032057044

Unavailable

17

Push rod

50532054000

Unavailable

18

O-ring 30x1.5 NBR 70

0770300015

Unavailable

26

CIRCLIP DIN7993-RW12

0993012000

Unavailable

27

AXIAL WASHER AS1226 12X26X1

54637098200

Unavailable

28

AXIAL NEEDLE BEARING AXK 1226

54637097200

Unavailable

29

Preasure plate

50532003000

Unavailable

99

Clutch disc pack

50532110033

Unavailable
