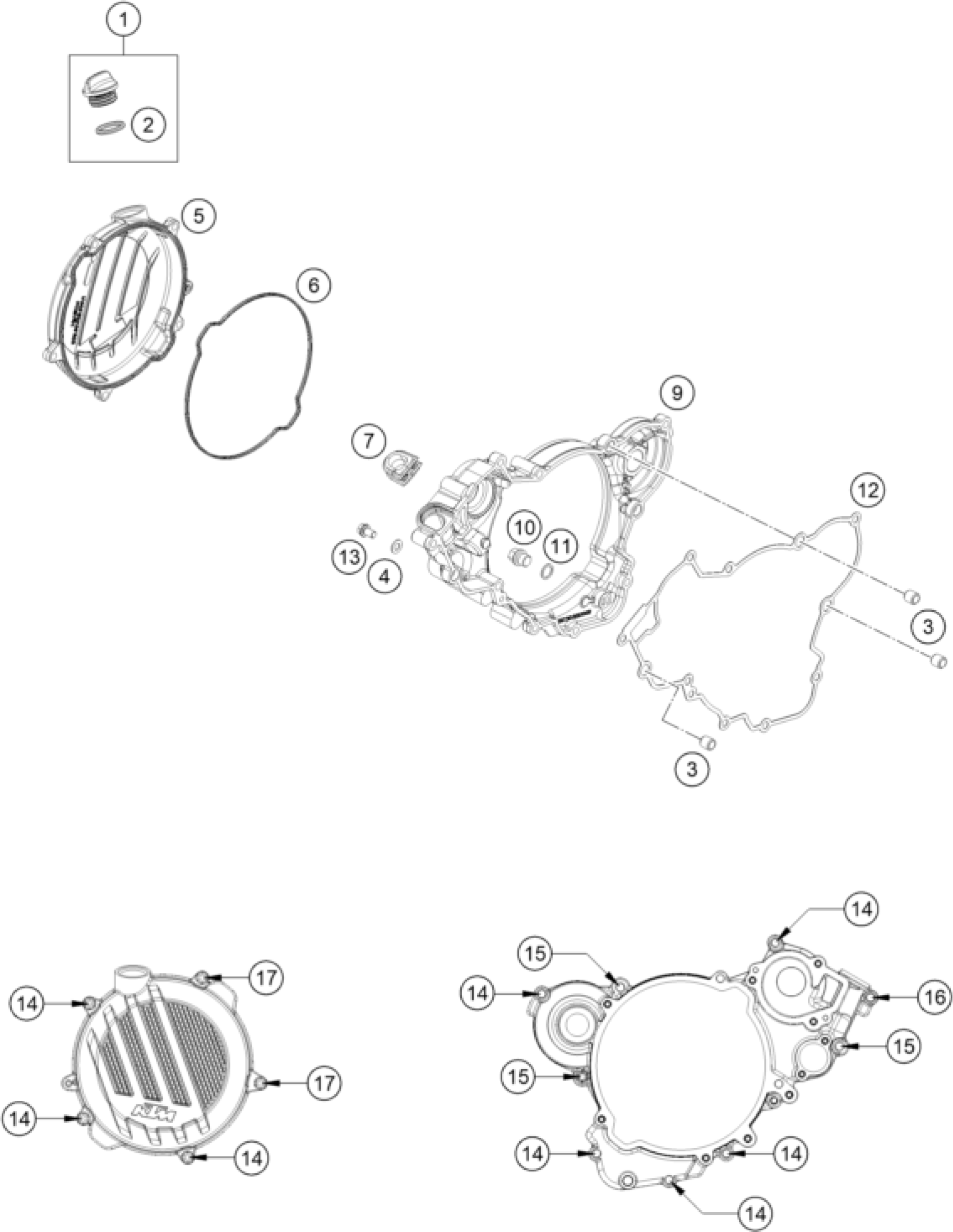

KTM 150 XC-W 2023 CLUTCH COVER Diagram

#

Description
Price

1

Oil filler cap cmpl. M24x3

79430020033

Unavailable

2

O-RING 19,00X3,00 NBR

0770191015

Unavailable

3

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

4

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

5

Outer clutch cover

5053002600015

Unavailable

6

GASKET OUTER CLUTCH COVER

50430027000

Unavailable

7

Sealing element

50437091100

Unavailable

9

Inner clutch cover cmpl.

51730001044

Unavailable

10

PLUG DIN0910-M 10X1

0910100003

Unavailable

11

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

12

GASKET INNER CLUTCH COVER

50430025000

Unavailable

13

HH collar screw M6x10 TX30

0025060106

Unavailable

14

HH collar screw M6x20 TX30

0025060206

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable

17

HH collar screw M6x50 TX30

0025060506

Unavailable
