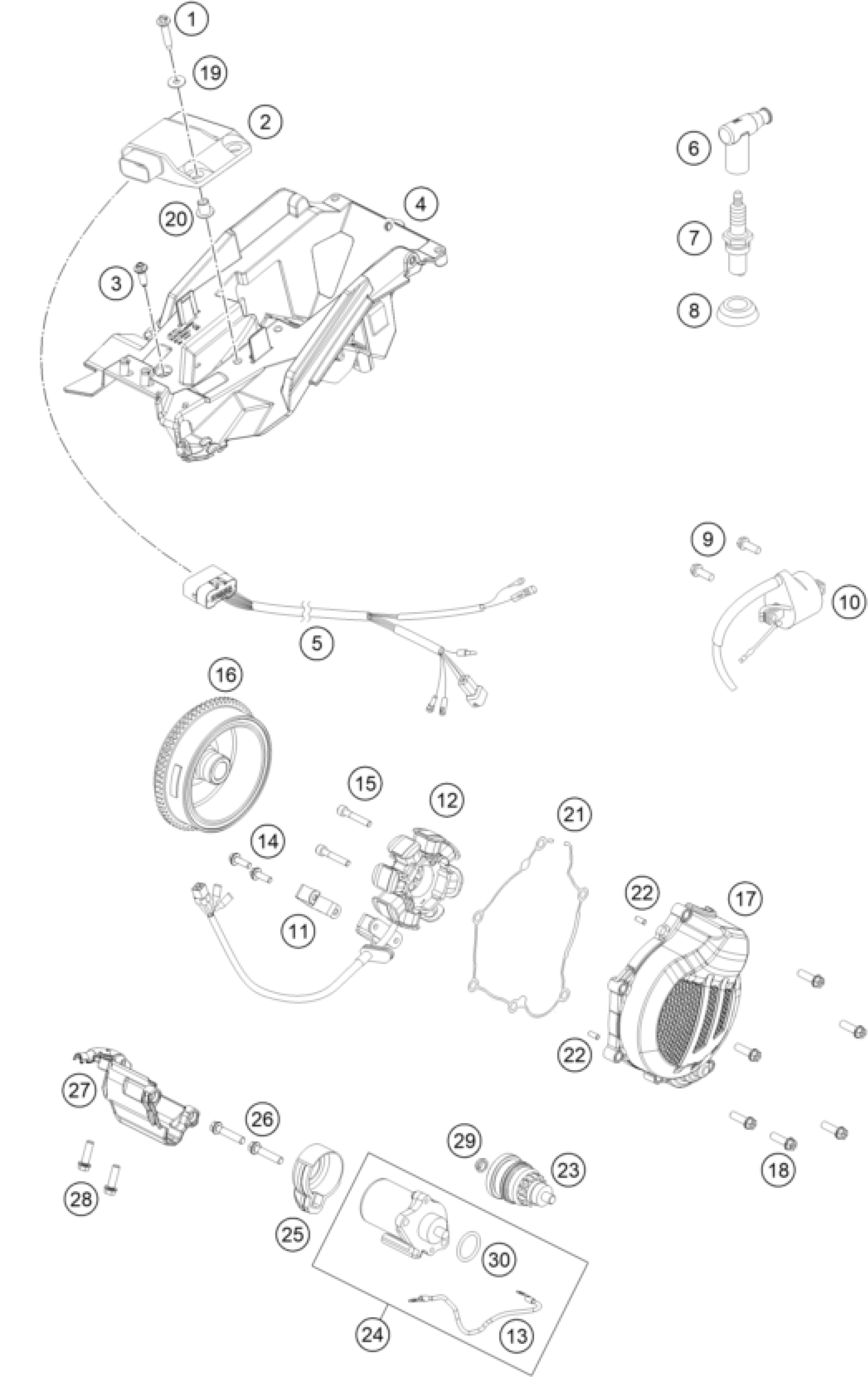

KTM 150 XC-W 2018 IGNITION SYSTEM Diagram

#

Description
Price

1

Special screw K60X30 WS=6

0017060305

Unavailable

2

Electronic box 150 18

51639231000

Unavailable

3

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

4

BATTERY BOX

79011055000

Unavailable

5

WIRING HARNESS FOR CDI 2-ST.07

54839032200

Unavailable

6

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

7

SPARK PLUG

51539093000

Unavailable

8

SEALING SLEEVE

50439091000

Unavailable

9

COLLAR SCREW M6X18 ISA30

0026060186

Unavailable

10

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

12

Stator

55139004100

Unavailable

13

Starter cable

50411059000

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

16

ROTOR

50439105000

Unavailable

17

Ignition cover EXC

5043010210015

Unavailable

18

HH collar screw M6x25 TX30

0025060256

Unavailable

19

washer DIN 9021 A - 5.3

0021050003

Unavailable

20

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

Unavailable

21

GASKET IGNITION COVER

50430040000

Unavailable

22

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

23

BENDIX

50440026000

Unavailable

24

Starter engine

50440001000

Unavailable

25

SUPPORT RING

50440040050

Unavailable

26

HH collar screw M6x20 TX30

0025060206

Unavailable

27

STARTER COVER

50440040000

Unavailable

29

COLLAR BUSHING

55140030100

Unavailable

11

PICKUP BRACKET

50439004010

Unavailable

14

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

30

O-Ring 19,3X2,4

0770019324

Unavailable

28

HH collar screw M6x16 TX30

0025060166

Unavailable
