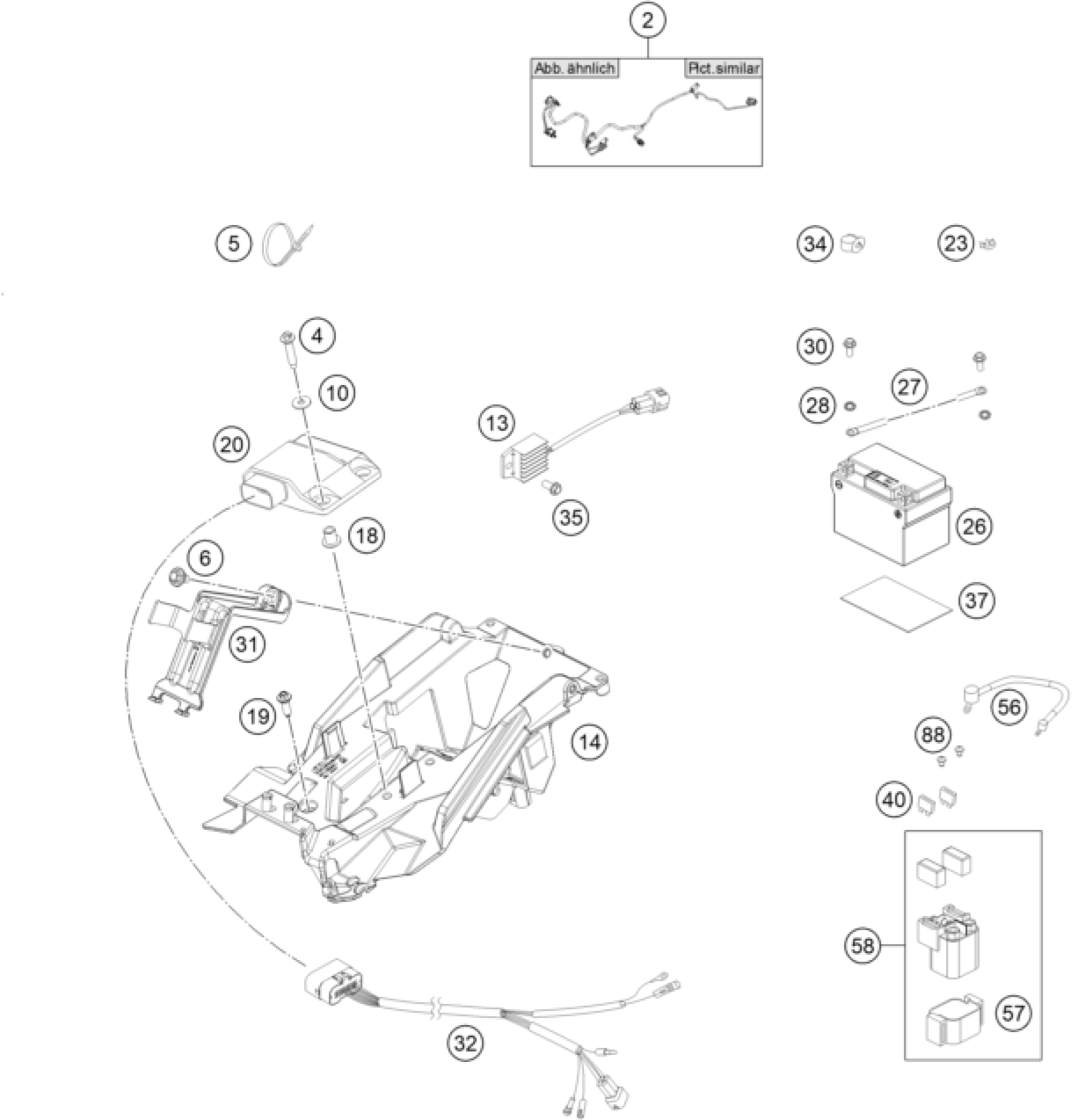

KTM 150 XC-W 2017 WIRING HARNESS Diagram

#

Description
Price

23

WIRING HOLDER 12MM

57013072000

Unavailable

23

WIRING HOLDER 16MM

57013072100

Unavailable

2

WIRING HARNESS 200/300 XC-W 14

54811075800

Unavailable

4

Special screw K60X30 WS=6

0017060305

Unavailable

5

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

Unavailable

19

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

20

ELEKTRONIC BOX 150XC-W 17

51639131000

Unavailable

26

LITHIUM ION BATTERY 5S

77311953000

Unavailable

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

10

washer DIN 9021 A - 5.3

0021050003

Unavailable

13

VOLTAGE REGULATOR 04

80011034000

Unavailable

14

BATTERY BOX

79011055100

Unavailable

27

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

28

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

30

HH collar screw M6x12 TX30

0025060126

Unavailable

31

BATTERY BOX SUPPORT

79011056100

Unavailable

32

WIRING HARNESS FOR CDI 2-ST.07

54839032200

Unavailable

34

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

35

COLLAR SCREW M6X12 TX

0023060123

Unavailable

37

METAMOLL 90X45X3MM 03

59003001099

Unavailable

40

Plug-in fuse, big 10A

58011109110

Unavailable

56

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

58

Starter reley 12V 99

58211058000

Unavailable

88

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

57

BRACKET RUBBER F.STARTRELAY 07

58211058050

Unavailable
