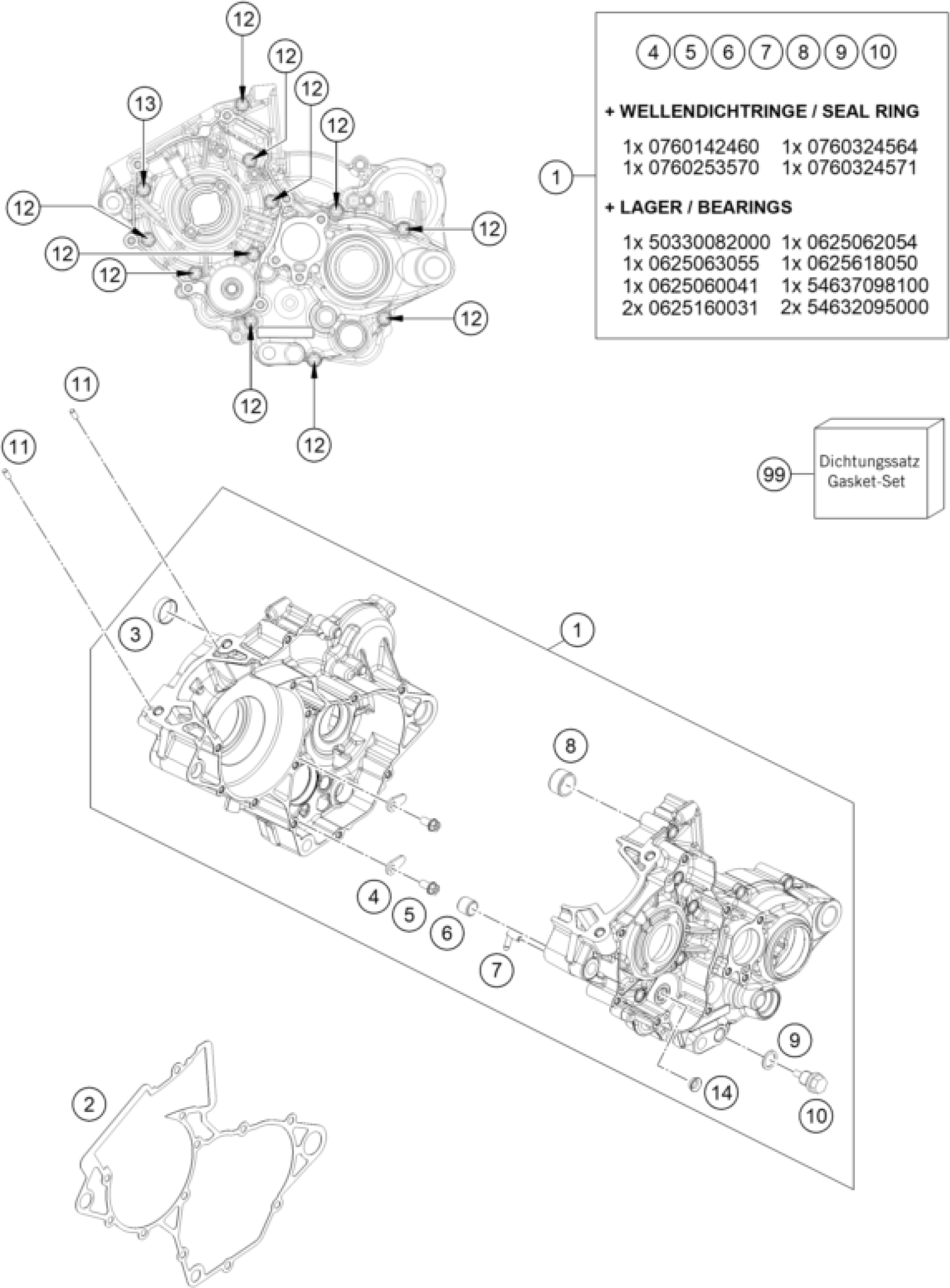

KTM 150 XC-W 2017 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.

50430100044

Unavailable

2

GASKET ENGINE CASE

50430039000

Unavailable

3

BUSHING IDLER GEAR

50433024050

Unavailable

4

RETAINING PLATE

54634049000

Unavailable

5

HH collar screw M6x12 TX30

0025060126

Unavailable

6

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

7

ANGLE PIECE 50CCM LC 2001

45130022000

Unavailable

8

DOWEL 21X12 03

54830027000

Unavailable

9

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

10

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

11

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

12

HH collar screw M6x50 TX30

0025060506

Unavailable

13

HH collar screw M6x60 TX30

0025060606

Unavailable

14

COLLAR BUSHING

55140030100

Unavailable

99

GASKET SET ENGINE 125/150

50430099000

Unavailable
