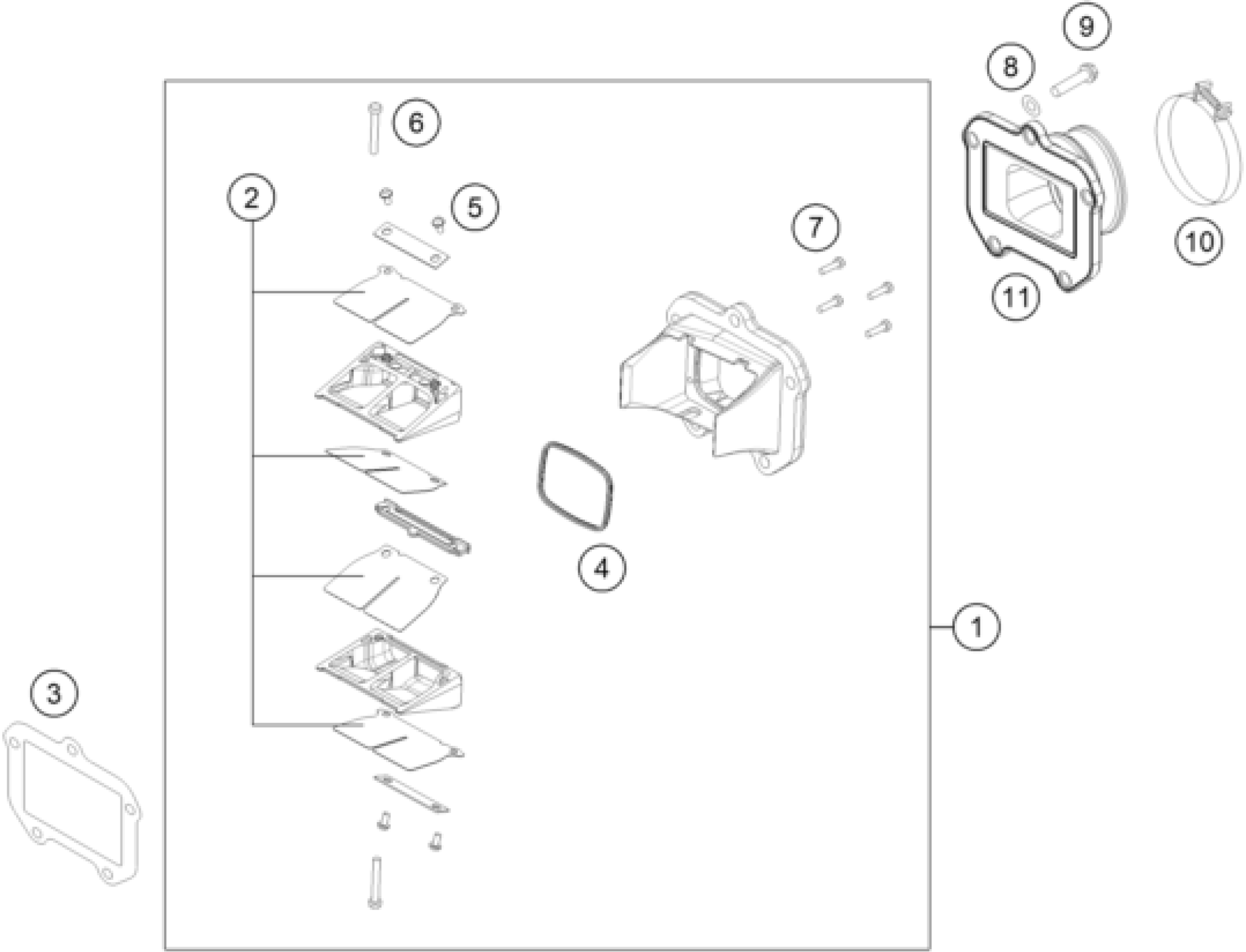

KTM 150 XC 2014 REED VALVE CASE Diagram

#

Description

Price

2

RED VALVE-SET 14

50330052344

Unavailable

10

Hose clip GEMI 52mm

54330061000

Unavailable

8

spring washer DIN 137 B - 6

0137060003

Unavailable

9

HH collar screw M6x25 TX30

0025060256

Unavailable

11

INTAKE FLANGE 125 09

50330050300

Unavailable

1

REED VALVE ASSY CPL.

50330151044

Unavailable

6

EJOT DELTA PT SCREW 35X25

0081035253

Unavailable

3

GASKET REED V.PLATE V-FORCE 04

50330098050

Unavailable

5

EJOT DELTA PT SCREW 30X6

0081030063

Unavailable

7

EJOT DELTA PT SCREW 30X12

0081030124

Unavailable

4

GASKET SUPPORTING PLATE

54830153050

Unavailable
