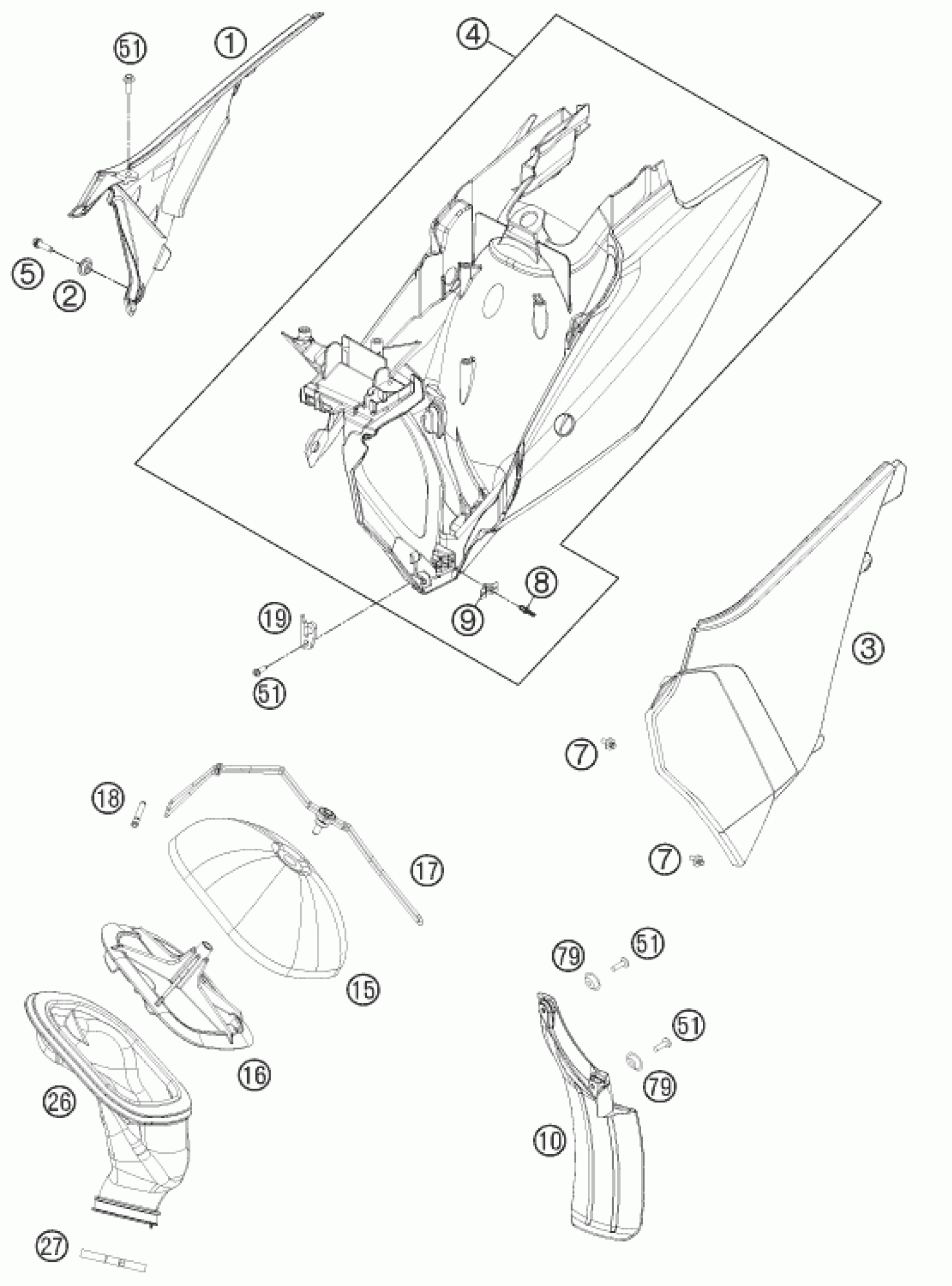

KTM 150 XC 2011 AIR FILTER Diagram

#

Description
Price

1

AIR BOX COVER OR. RIGHT PDS

7720600410004A

Unavailable

3

AIR BOX COVER OR. LEFT SX 11

7720600300004A

Unavailable

4

FILTER BOX CPL. BLACK 11

7720600104430

Unavailable

7

QUICK RELEASE-NIPPLE 03

54806008051

Unavailable

8

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

Unavailable

9

QUICK RELEASE-SPRING HANGER

54806008050

Unavailable

10

FENDER FOR FILTER BOX

77306010000

Unavailable

15

AIR FILTER

77206015000

Unavailable

16

FILTER CARRIER

54806516000

Unavailable

17

FILTER SUPPORT CPL. 11

77206017000

Unavailable

18

FILTER SUPPORT BUSH 07

77306018000

Unavailable

19

FASTEN. DEVICE FILTER S. SX 11

77206019000

Unavailable

26

CABURETOR CONNECTING

51506026000

Unavailable

27

HOSE CLAMP 45-65MM

78006027000

Unavailable

51

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

79

chain slider bushing

77304066050

Unavailable

2

COLLAR BUSH. F.REAR FENDER 07

77308013010

Unavailable

5

HH collar screw M6x20 TX30

0025060206

Unavailable
