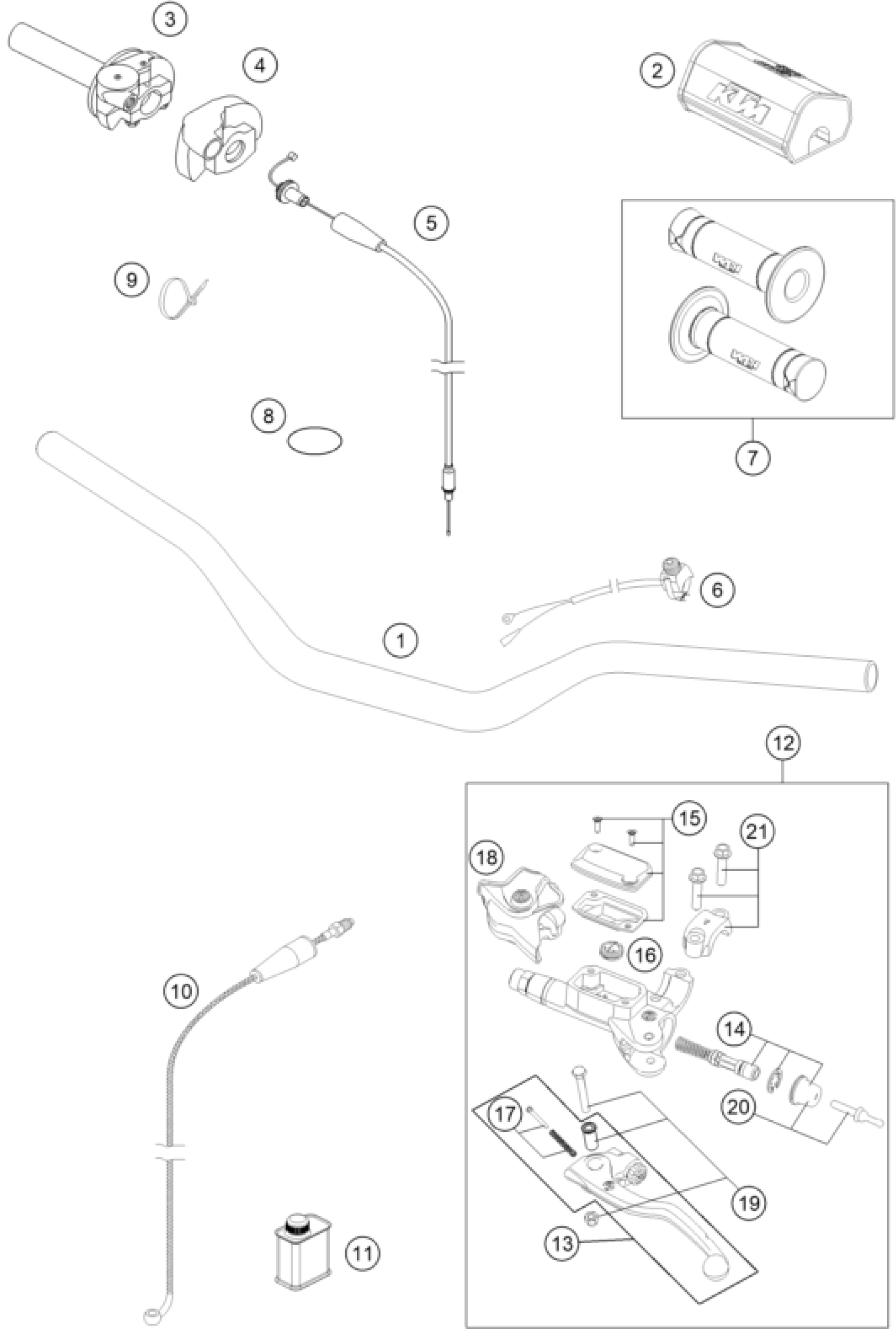

KTM 150 SX 2016 HANDLEBAR, CONTROLS Diagram

#

Description

Price

2

BAR PAD

79002002000

Unavailable

1

HANDLEBAR D=28MM

7900200100030

Unavailable

3

THROTTLE GRIP CPL. 2ST. 13

51502010200

Unavailable

4

PROTECTION COVER '97

50302020000

Unavailable

5

THROTTLE CABLE 2-ST. 2014

51502091200

Unavailable

6

Kill switch

50311089200

Unavailable

7

GRIP SET

78102021000

Unavailable

8

O-RING 49,00X2,50 NBR

0770049025

Unavailable

9

Cable tie 200/4.6mm black

44011076200

Unavailable

10

CLUTCH PIPE

79232063000

Unavailable

11

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

12

MASTER CYLINDER CPL.

79202030044

Unavailable

13

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

14

REP. KIT PISTON 9MM

79202032044

Unavailable

15

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

16

VALVE

54802051000

Unavailable

17

BOLT KPL.

54802052000

Unavailable

18

PROTECTION CAP 06

54802037000

Unavailable

19

Lever screw cmpl. 06

54802038100

Unavailable

20

Push rod cmpl.

54802046000

Unavailable

21

CLAMP CPL. 06

54802005100

Unavailable
