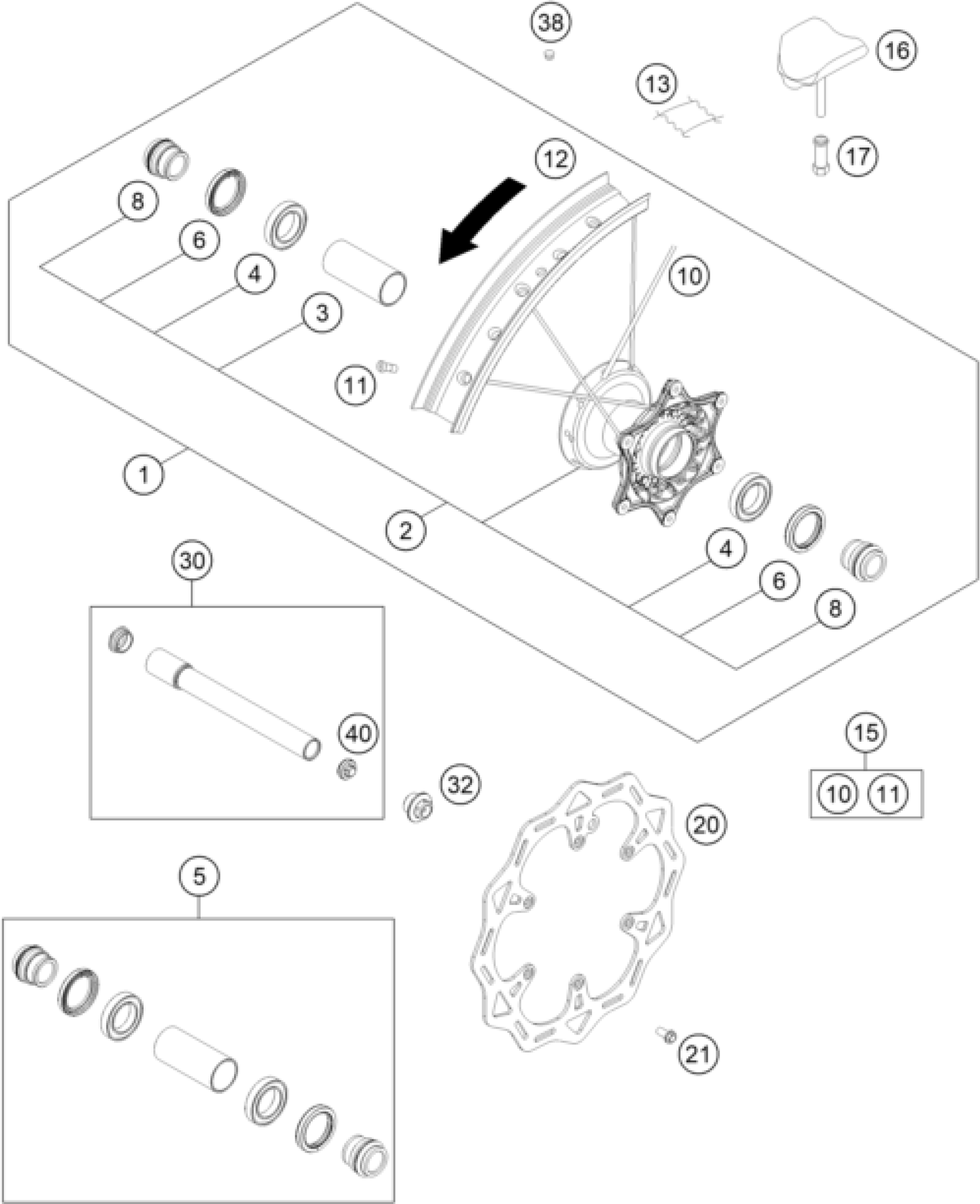

KTM 150 SX 2016 FRONT WHEEL Diagram

#

Description
Price

40

AUXILIARY SCREW FRONT

7770908107055

Unavailable

1

FRONTWHEEL CPL.1,6X21''EXC. 22

7900900104430

Unavailable

2

FRONT WHEEL HUB CPL.

77709010144

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

wheel bearing repair kit

77709015000

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING F. FR. WHEEL

77709012000

Unavailable

10

SPOKE M4,5X226- 21'' BLACK 16

7900907122630

Unavailable

11

Spoke nipple M4.5 AL

77109072000

Unavailable

12

RIM 1,6''X21'' EXCEL BLACK

7710907000030

Unavailable

13

Tube protector 21"

50309073000

Unavailable

15

SPOKE KIT FRONT ''21'' BLACK

00050000974

Unavailable

16

RIM LOCK 1,60''

78109090000

Unavailable

17

NUT FOR WHEEL HOLDER

77110090050

Unavailable

20

BRAKE DISC FRONT 260MM 16

79009060000

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

30

WHEEL SPIN.FR. CPL. D=22 15

77709081033

Unavailable

32

AXLESCREW M20X1.5 SW17

70009082000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable
