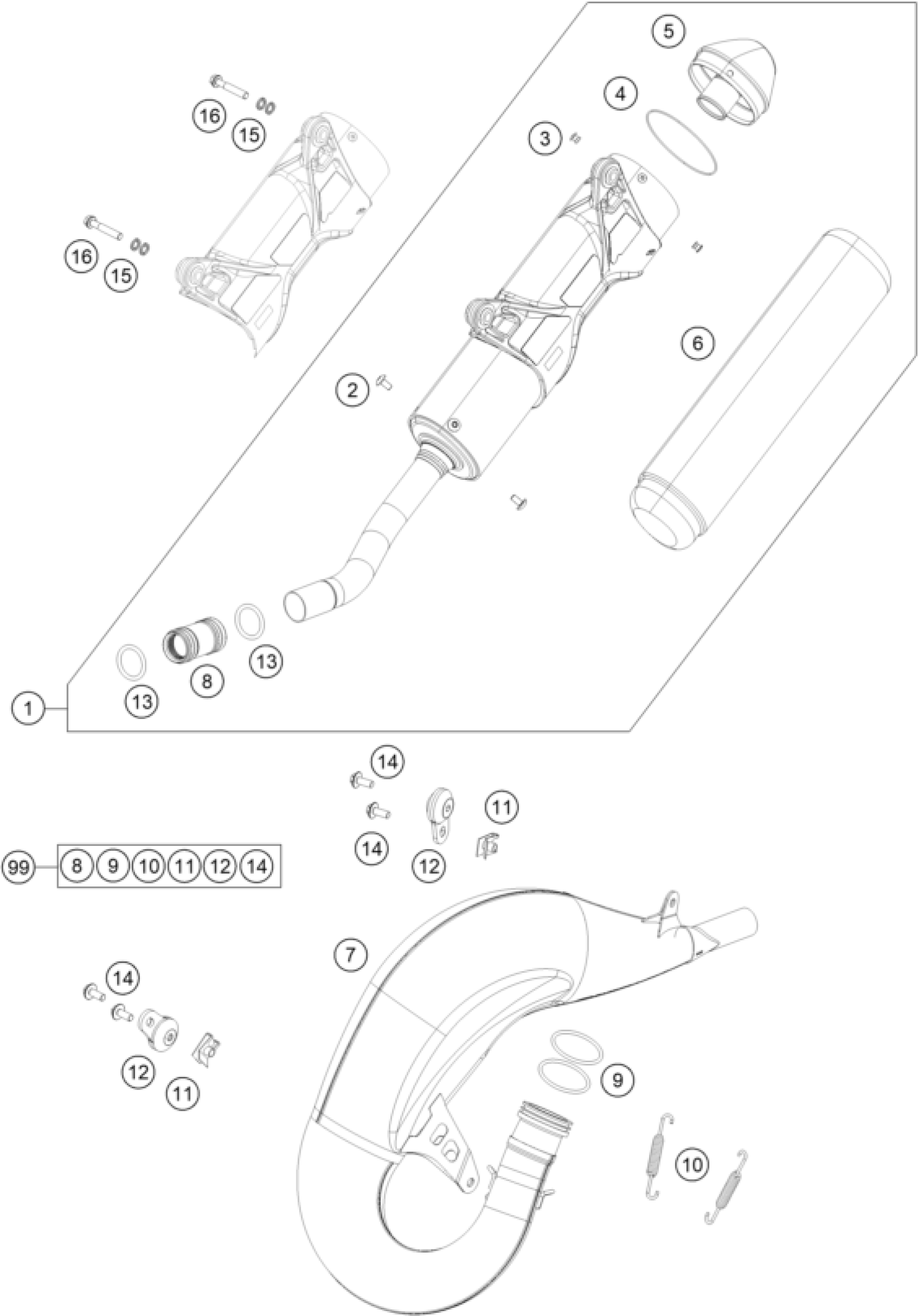

KTM 150 SX 2016 EXHAUST SYSTEM Diagram

#

Description
Price

2

SCREW TORX M5X10

78105081010

Unavailable

3

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

4

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

5

END CAP CPL.

50305083260

Unavailable

6

ROCK WOOL 220G

50405078220

Unavailable

7

EXHAUST PIPE

50405007100

Unavailable

8

exhaust rubber

50405057000

Unavailable

9

O-ring 38x3 VITON

0770380030

Unavailable

10

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

11

clip nut M6

54603048100

Unavailable

12

Silent block for exhaust pipe

50305012000

Unavailable

14

HH collar screw M6x15 TX30

0024060156

Unavailable

15

Pair of washers M6 NORDLOCK

50233041000

Unavailable

16

HH collar screw M6x35 TX30

0025060356

Unavailable

99

EXHAUST HARDWARE KIT 05-15

00050000810

Unavailable

1

SILENCER

50405079000

Unavailable

13

Hose spring

50405058000

Unavailable
