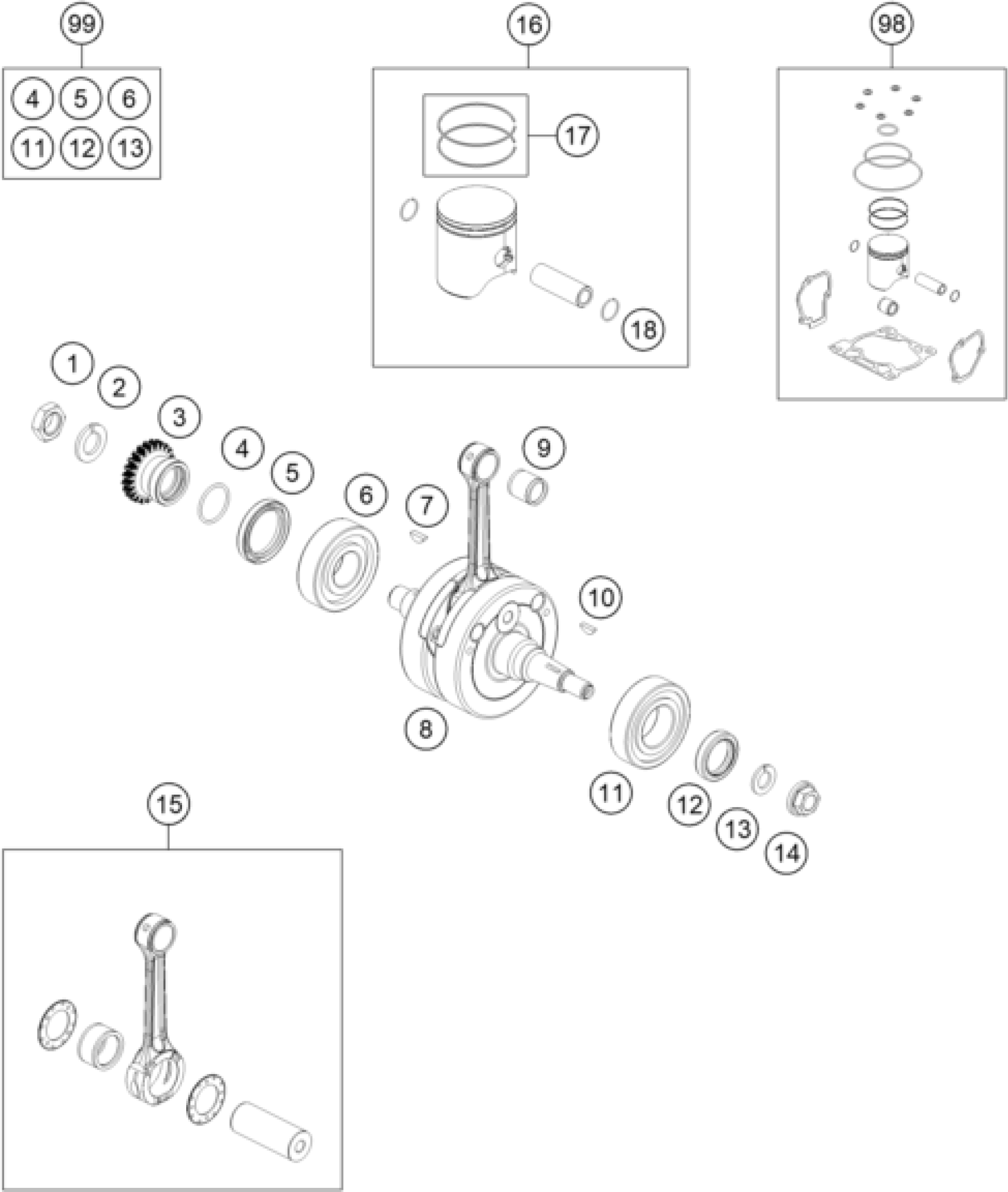

KTM 150 SX 2016 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

HEXAGON NUT M 16 X 1,5 - L/S

50330029000

Unavailable

2

LOCKING RING VSK 16

50230029016

Unavailable

3

PRIMARY WHEEL 23T

50432023023

Unavailable

4

O-RING 25,00X2,00 NBR 70

0770250020

Unavailable

5

SHAFT SEAL RING 32X45X6,5 BT

0760324564

Unavailable

6

BALL BEARING 6305 JR2 CS36

0625063055

Unavailable

7

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

8

CRANKSHAFT

50430018000

Unavailable

9

NEEDLE BEARING KBK 15X19X20

51030034000

Unavailable

10

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

11

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

Unavailable

12

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

13

LOCKING RING VSK 12

50230029012

Unavailable

14

COLLAR NUT M12X1 R/S

49030021000

Unavailable

15

CON-ROD REPAIR KIT

50430015044

Unavailable

16

PISTON I CPL. 150

51630007000 I

Unavailable

16

PISTON II CPL. 150

51630007000 II

Unavailable

17

PISTON RING SET 150

51630032044

Unavailable

18

WIRE LOCK RING 15X1

50330074500

Unavailable

99

CRANKSHAFT REP. KIT 125-200

00050002300

Unavailable

98

PISTON KIT GR.I 150 MX/Enduro

00050000235

Unavailable

98

PISTON KIT GR.II 150 MX/Enduro

00050000236

Unavailable
