Partiron

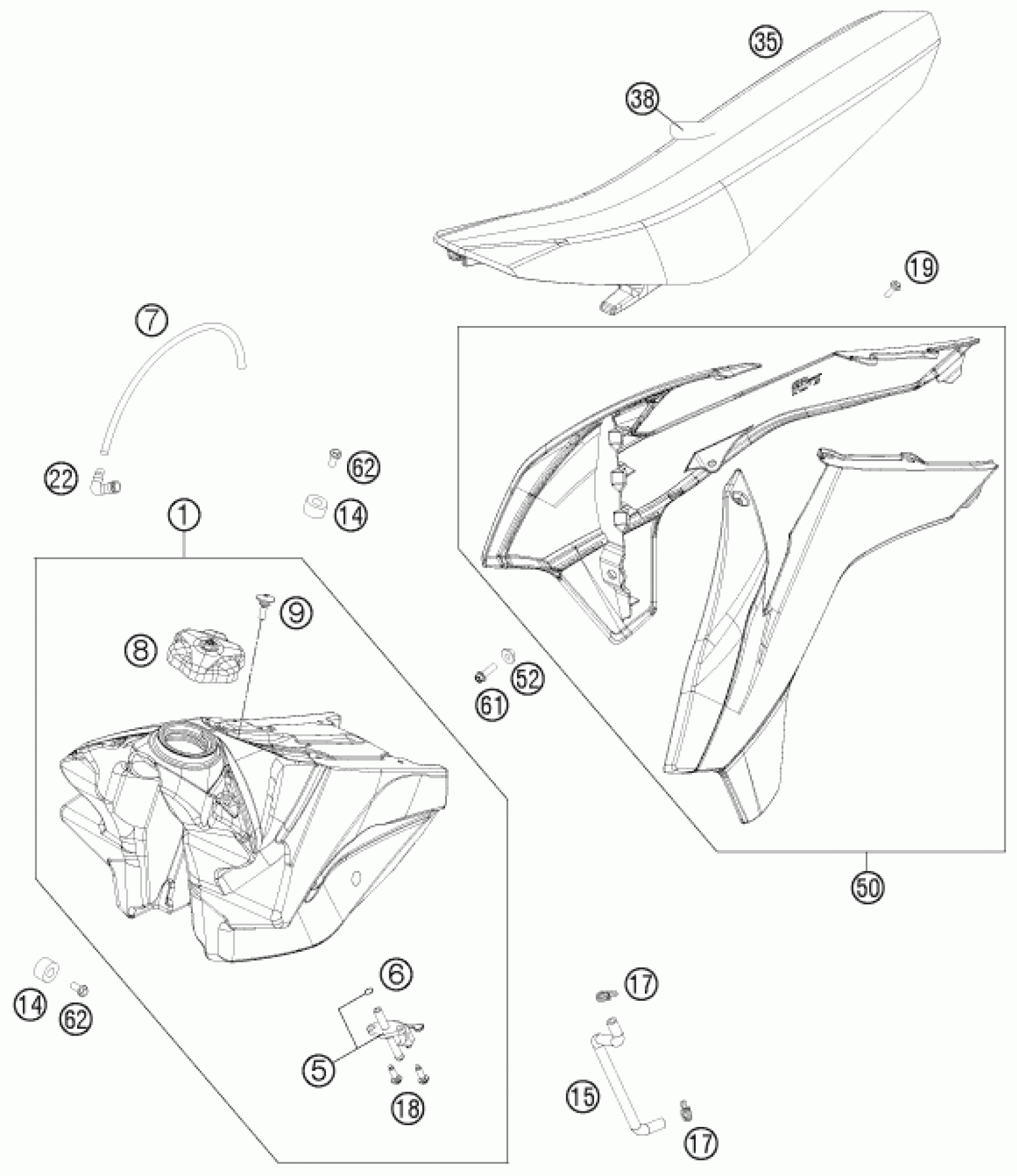

KTM 150 SX 2014 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. 7,5L SX 14

5150701313330

Unavailable

5

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

6

O-RING 13,00X2,30

0770130023

Unavailable

7

PVC-hose 5.6X10X270MM

78007000270

Unavailable

8

TANK PLUG CPL. 2014

77707008144

Unavailable

9

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

FUEL HOSE 6X2,5

54807516000

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

19

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

35

SEAT 2014

77207040200

Unavailable

38

SEAT COVER

77207040050

Unavailable

50

SPOILER KIT SX 2014

7770805400004C

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

61

HH collar screw M6x20 TX30

0025060206

Unavailable

62

HH collar screw M6x12 TX30

0025060126

Unavailable
