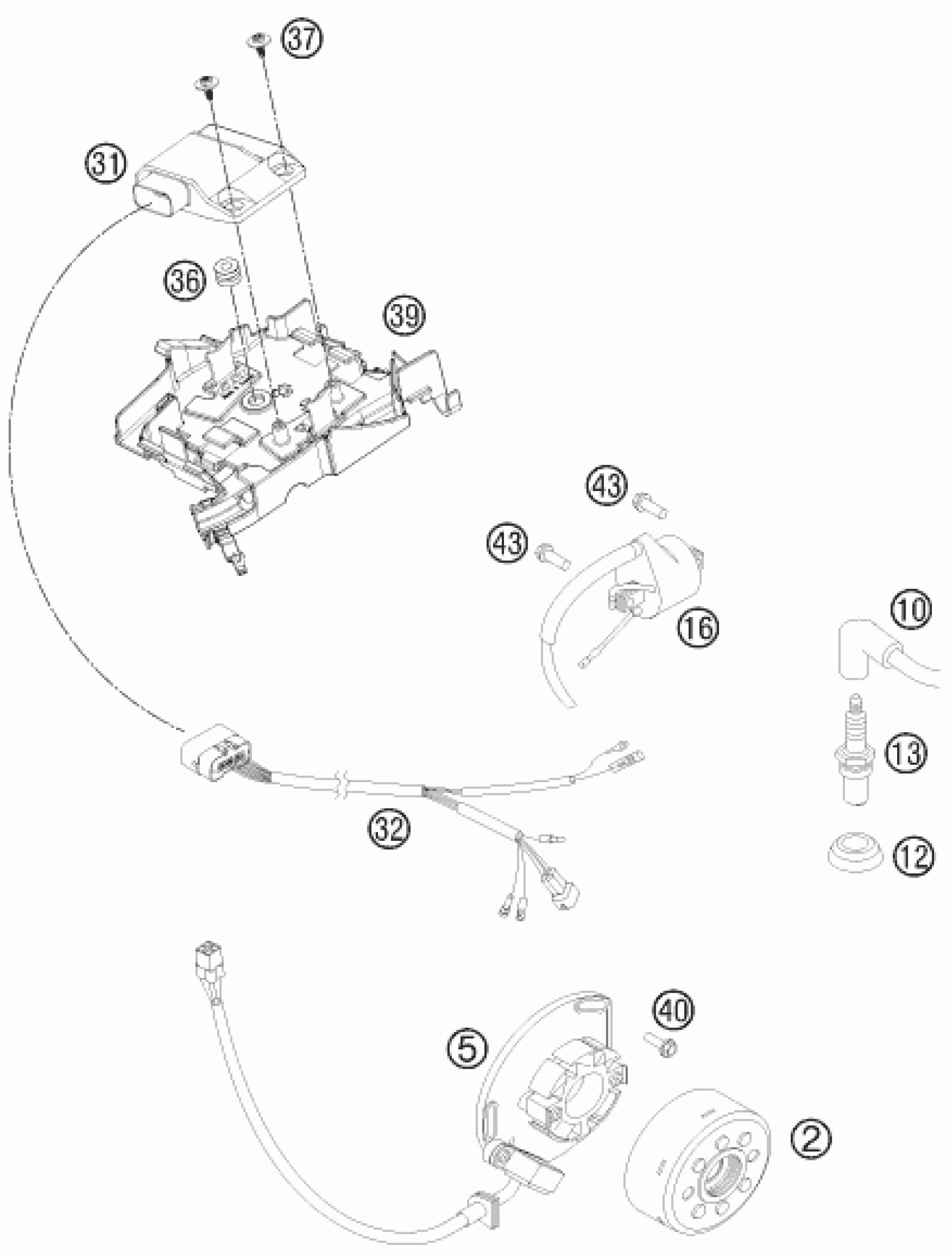

KTM 150 SX 2014 IGNITION SYSTEM Diagram

#

Description
Price

2

FLYWHEEL KOKUSAN 2K-1/2K-4 '97

54739005000

Unavailable

5

STATOR KOKUSAN 2K-1 2006

54839004000

Unavailable

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

12

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

13

SPARK PLUG

51539093000

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

31

CDI UNIT 144 SX 07

51539031100

Unavailable

32

WIRING HARNESS FOR CDI 2-ST.07

54839032200

Unavailable

36

rubber grommet 16x10.8x3

58214069051

Unavailable

37

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

40

HH collar screw M5x16 TX30

0025050166

Unavailable

43

HH collar screw M6x16 TX30

0025060166

Unavailable

39

ELECTRIC CASE

51511094100

Unavailable
