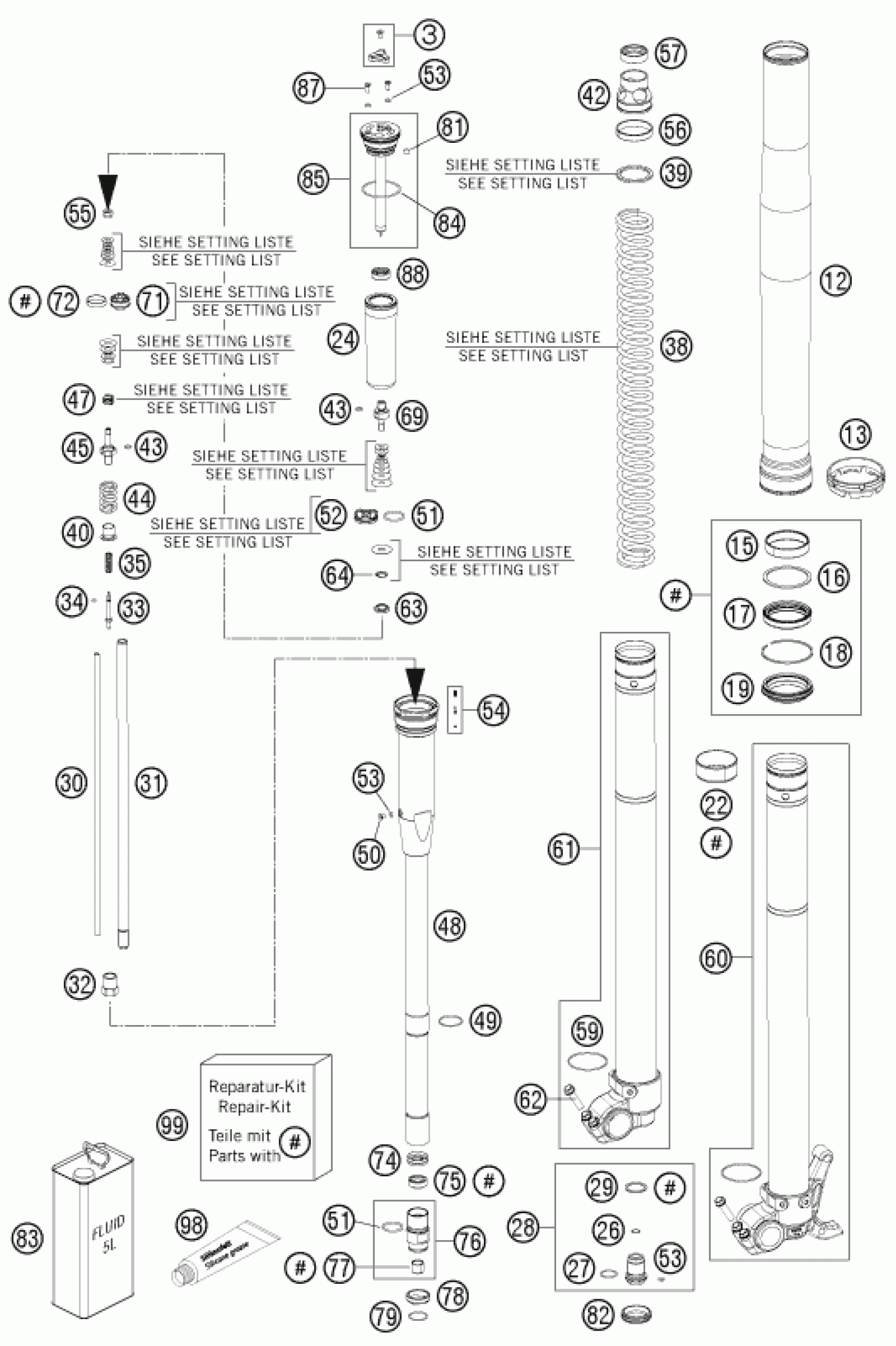

KTM 150 SX 2014 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

Adjuster compression cpl.

48600811S

Unavailable

12

Fork outer tube 49,13x577 dt54

48600736

Unavailable

13

Fork protection ring 62,1mm

48600698

Unavailable

15

Guide bushing 48x52x12

48601009

Unavailable

16

Supportwasher 50x57,6x1,5

48600013

Unavailable

17

Shaft seal SKF 48x57,9x9 grün

48600969

Unavailable

18

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

19

DUST SEAL DL D48 SKF

48600968

Unavailable

22

Guide bushing 47x49x20

48601008

Unavailable

24

Membrane 11,2x37x112

48600281

Unavailable

26

O-ring 9,5x1,5 NBR70 yellow

48600301

Unavailable

27

O-ring 17x2 70 Sh NBR black

46810811

Unavailable

28

SCREW BUSH M20X1 L=33 CPL.

48600280S

Unavailable

29

Copper disc 20,5x26x1

48600275

Unavailable

30

Adjustment tube 6x371

48600269

Unavailable

31

Piston rod 12x405

48600464

Unavailable

32

Lock nut M12x1 h23 WAF17

48600459

Unavailable

33

Needle 4,5x43,6 rebound

48600887

Unavailable

34

O-ring 2x1,5 NBR70

48600298

Unavailable

35

Spring (5,4) 4-23 rebound

48600444

Unavailable

38

SPRING D43.2 L485 5.2N/MM

91410010S

Unavailable

38

SPRING 4,4 N/MM SET D=5,1MM

91410027S

Unavailable

38

SPRING 4,6 N/MM SET D=5,1MM

91410028S

Unavailable

38

POLISHED SPRING 4,8 N/MM

91410029S

Unavailable

38

SPRING 5,0 N/MM

91410030S

Unavailable

38

SPRING 4,0 N/MM SET

91410059S

Unavailable

38

SPRING 4,2 N/MM SET D=5,0MM

91410060S

Unavailable

39

Washer 35x43x2,5 plastic

48600456

Unavailable

39

Preload bush 35x43x3,5

48600457

Unavailable

39

Washer 35x43x1,5 plastic

48600458

Unavailable

40

Spring retainer 12,3x19x1,25 r

48600525

Unavailable

42

Spring retainer 27,08x43x45

48601298

Unavailable

43

O-ring 6x1,2 NBR70

48600299

Unavailable

44

Spring (13,9) 37-32 rebound

48600578

Unavailable

45

Tap 6x46 rebound

48600576

Unavailable

47

Spring (11,4) 0,4-8 valve

48600382

Unavailable

48

reed holder incl. PIN SET

48600519S3

Unavailable

49

Round-wire snap ring 28,5x1,5

48600512

Unavailable

50

HS countersunk head screw M4x6

48600542

Unavailable

51

O-ring 21x2 NBR70

46811499

Unavailable

52

Piston 6x27,8x9 compression

48600047

Unavailable

53

O-ring 4x1,5 NBR70

50180222

Unavailable

54

PIN KIT

48600977S

Unavailable

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

56

Guiding ring 39x44x8

48600744

Unavailable

57

Spring guide ring 27,08x32x9,5

48600577

Unavailable

59

Washer 32x42x2,5 plastic

48600113

Unavailable

60

AXLE CLAMP LEFT + TUBE CPL.

48600863SA

Unavailable

61

fork shoe ri. + tube cmpl.

48600864SA

Unavailable

62

HH collar screw M8x25

0025080256

Unavailable

63

Nut valve M6x0,5 h6,5 WAF17

48601169

Unavailable

64

Spring (8,5) l6,5 valve

48600202

Unavailable

69

Tap 6x38 compression

48600509

Unavailable

71

Piston 6,07x22,7x13

48600575

Unavailable

72

Piston ring 21x23x5

48600455

Unavailable

74

Spring retainer 13,5x21,9x2,65

48601056

Unavailable

75

Seal ring Freudenberg 12mm 85S

48600829

Unavailable

76

SCREW SLEEVE M24,5X1 CPL.

48601055S

Unavailable

77

Guide bushing 12x14x10

48600430

Unavailable

78

Check valve locking R4

48600709

Unavailable

79

Round-wire snap ring 24x2

48600446

Unavailable

81

Silicon plug 60Sh

15080017

Unavailable

82

Rubber cap 26,4x11

48600692

Unavailable

83

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

84

O-ring 43x2 NBR70 siliconized

40140024

Unavailable

85

screw cap M41x1 cmpl.

48600516S1

Unavailable

87

Cross flat head screw M4x10

48600526

Unavailable

88

Clamping ring bladder 11,31x22

48600514

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

SXS SERVICE KIT

R14020

Unavailable
