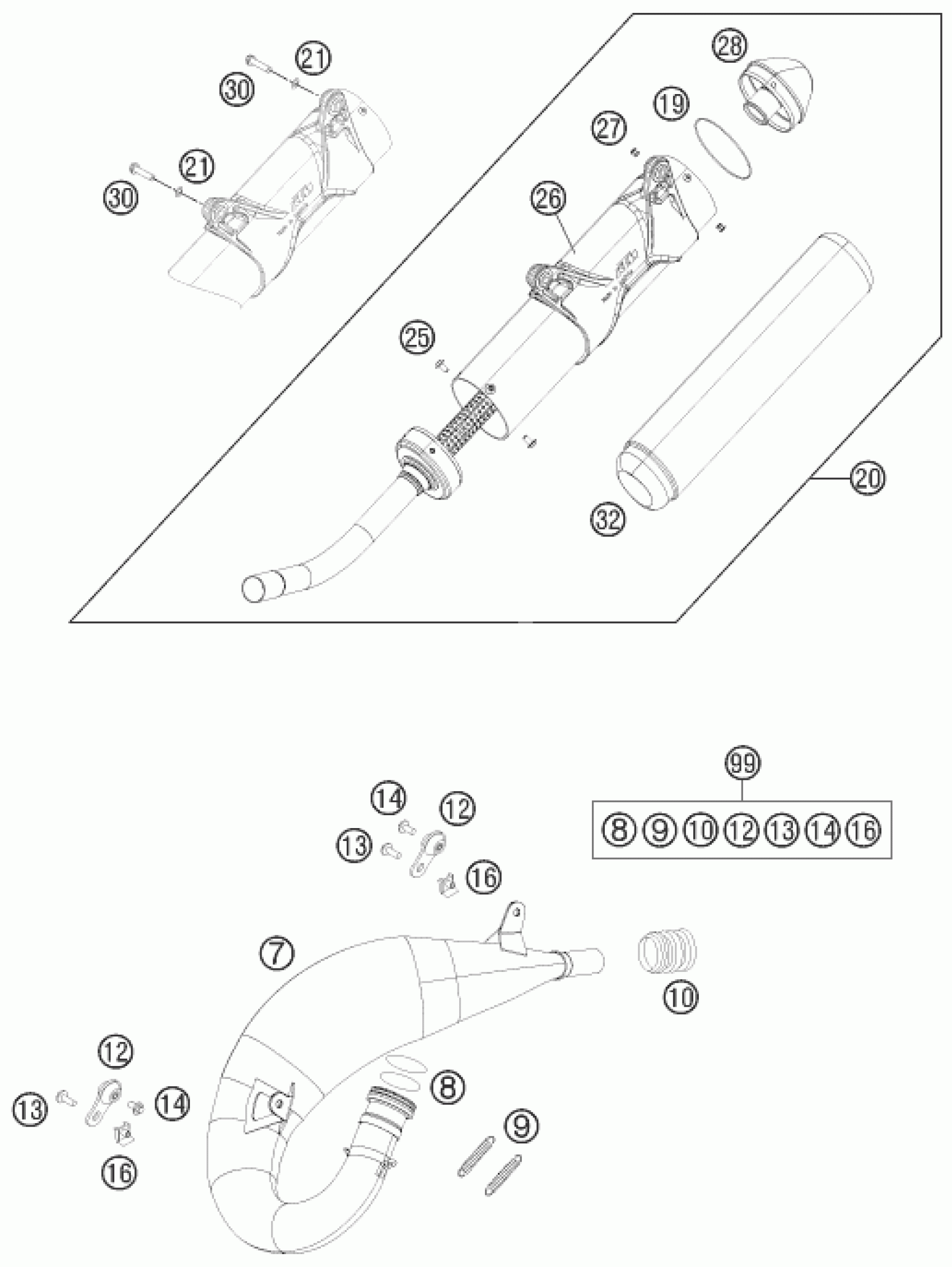

KTM 150 SX 2013 EXHAUST SYSTEM Diagram

#

Description
Price

7

EXHAUST MANIFOLD

50305107000

Unavailable

8

O-RING 44,00X3,00 VITON

0770440030

Unavailable

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

10

RUBBER SLEEVE D=21MM/23MM '93

54605057000

Unavailable

12

Silent block for exhaust pipe

50305012000

Unavailable

13

HH collar screw M6x15 TX30

0024060156

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

16

clip nut M6

54603048100

Unavailable

19

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

20

SILENCER 125-150 SX

50305079500

Unavailable

21

spring washer DIN 137 B - 6

0137060003

Unavailable

25

SCREW TORX M5X10 05

58605083010

Unavailable

26

SILENCER CASING CPL.W.MOUNTING

50305179085

Unavailable

27

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

28

END CAP CPL.

50305083260

Unavailable

30

HH collar screw M6x30 TX30

0025060306

Unavailable

32

ROCK WOOL 235G

50305078235

Unavailable

99

EXHAUST HARDWARE KIT 05-15

00050000810

Unavailable
