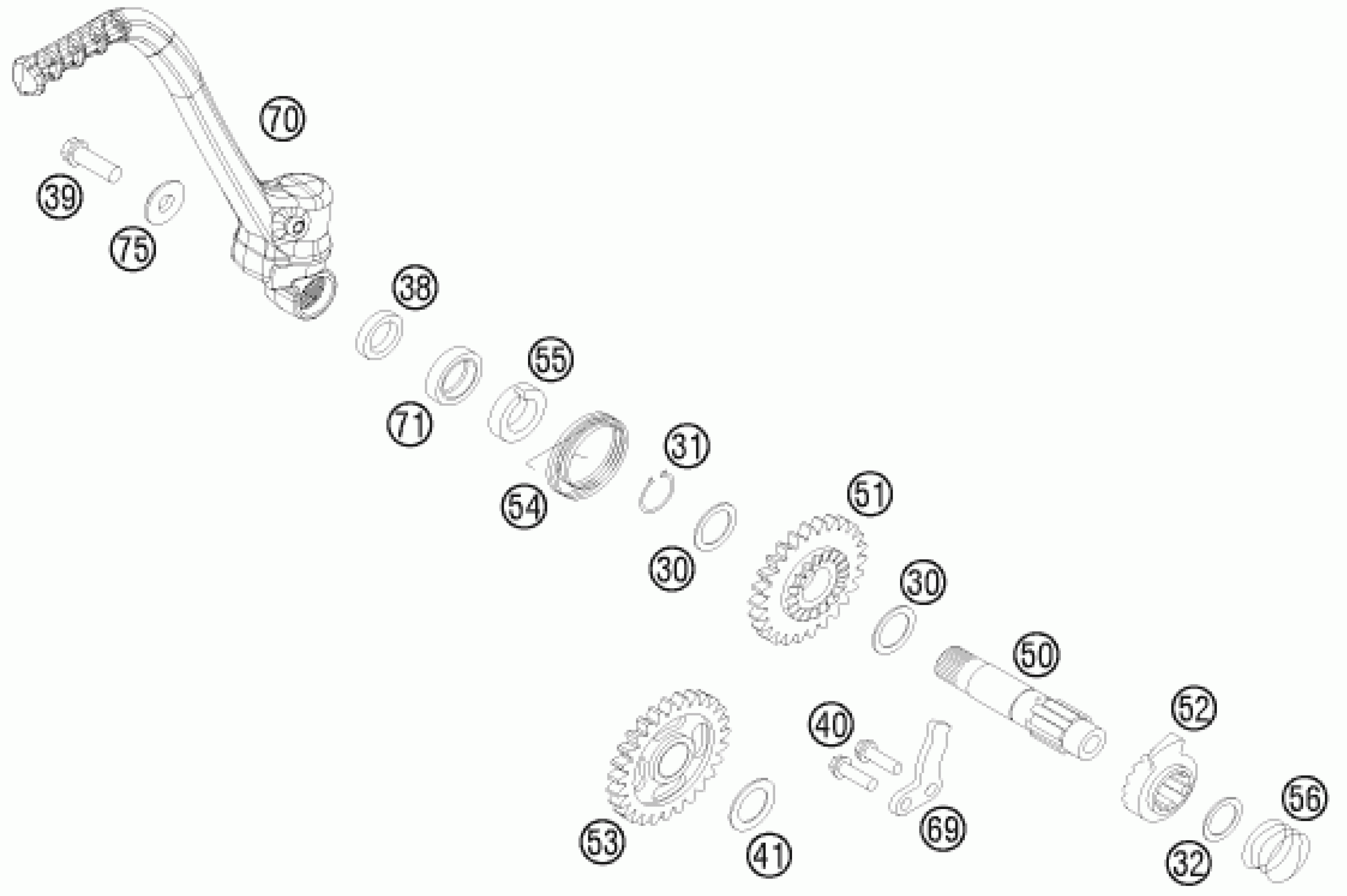

KTM 150 SX 2012 KICK STARTER Diagram

#

Description
Price

30

STOP DISK 17,2X24X1

50333030000

Unavailable

31

CIRCLIP DIN0471-17X1

0471170010

Unavailable

32

THRUST WASHER DIN0988-16X22X1

0988162210

Unavailable

38

SPACER BUSHING 16X23X26X6,1

50333038100

Unavailable

39

HH collar screw M8x20

0025080206

Unavailable

40

HH collar screw M6x16 TX30

0025060166

Unavailable

41

STOP DISC 17,2X26X1 B

50333041000

Unavailable

50

KICKSTARTER SHAFT 125/200'98

50333050000

Unavailable

51

KICKSTART.GEAR 26-T 125/200'98

50333051026

Unavailable

52

KICKSTARTER RATCHET

50333052000

Unavailable

53

INTERMEDIATE GEAR 27-T 04

50333053127

Unavailable

54

KICKSTARTER SPRING 2,6MM '98

50333054000

Unavailable

55

DRIVING HUB 125/200'98

50333055000

Unavailable

56

SPRING 1,4MM '98

50333056000

Unavailable

69

STOP MET.SHEET 4MM 125/200'98

50333069000

Unavailable

70

KICK STARTER CPL.

50333070244

Unavailable

71

SHAFT SEAL RING 17X28X7 B

0760172870

Unavailable

75

WASHER 8,2X22X4,5 '98

50333075000

Unavailable
