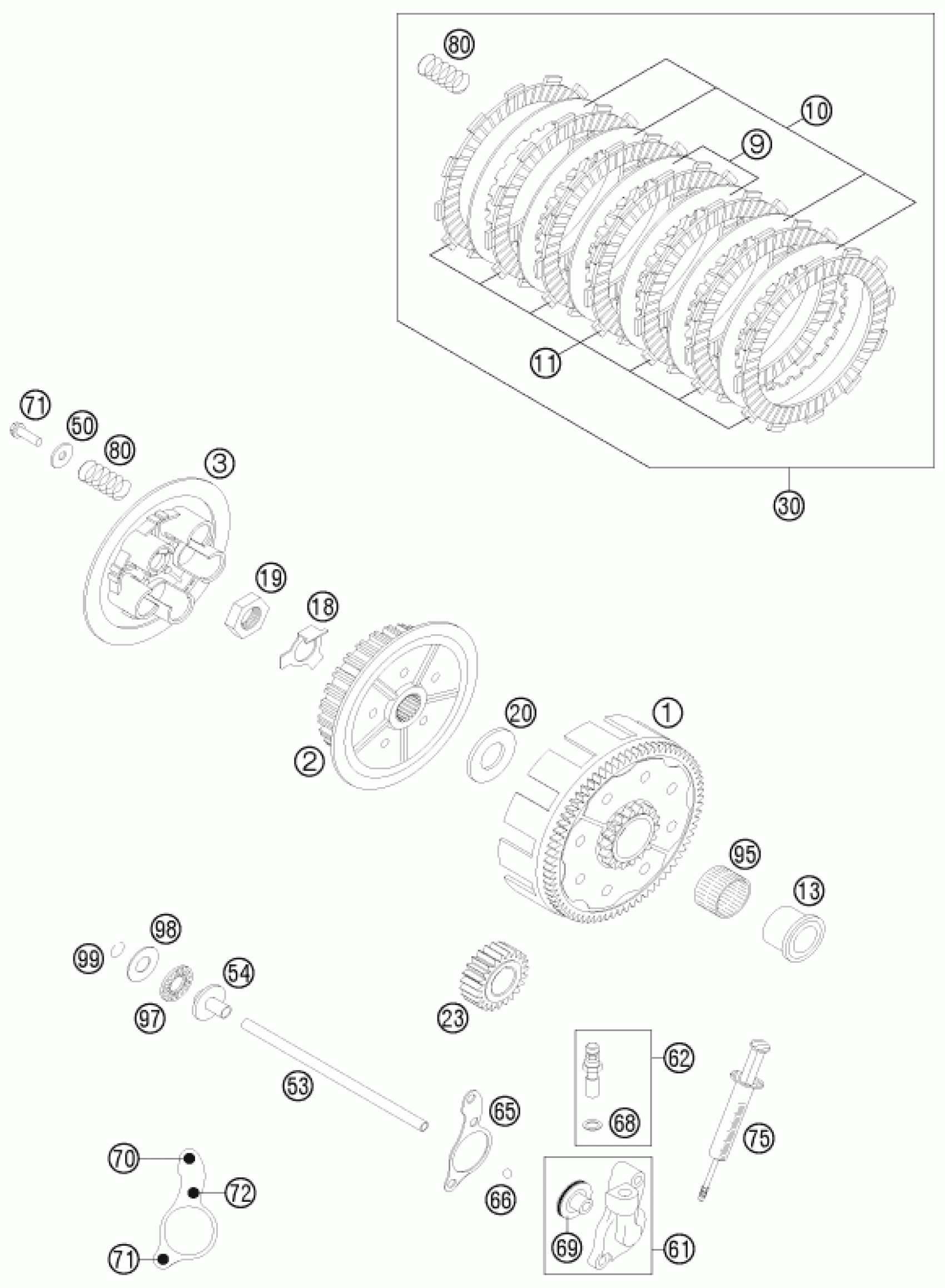

KTM 150 SX 2012 CLUTCH Diagram
#
2
INNER CLUTCH HUB 125/200'98
50332002000
Unavailable
3
PRESSURE PLATE 1257200 06
50332003100
Unavailable
9
INTERMEDI. DISC STEEL 1,5MM'98
50332010100
Unavailable
1
OUTER CLUTCH H.73-T 125/200
50332000073
Unavailable
10
INTERMEDIATE DISC 1,5MM
50332010400
Unavailable
11
LINING DISC 3,0MM 05
77032011000
Unavailable
13
INNER RING 20X26X25,9 '98
50332013000
Unavailable
18
SHEET METAL LOCK 1,5MM '98
50332018000
Unavailable
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
20
STOP DISK 20X39,6X3 '98
50332020000
Unavailable
23
PRIMARY PINION 23-T 125/200 06
50332023123
Unavailable
30
CLUTCH KIT 200 EXC 09-12
50332010110
Unavailable
50
WASHER 6,2X18X2
50232050000
Unavailable
53
PUSH ROD L=178 125/200 2006
50332017300
Unavailable
54
PRESSURE PIECE 125-380 '98
50332054051
Unavailable
61
CYLINDER CPL. 125/200'98
50332061044
Unavailable
62
Hollow screw cmpl. M 10x1 98
50332062000
Unavailable
65
CLUTCH RELEASE GASKET 0,3MM
50332065051
Unavailable
65
CLUTCH RELEASE GASKET 0,5MM
50332065052
Unavailable
65
CLUTCH RELEASE GASKET 0,75MM
50332065053
Unavailable
66
BALL DIN5401-7
0401070003
Unavailable
68
CU-SEAL RING DIN7603-10X16X1
42013226000
Unavailable
69
PISTON W. O-RING 125/200 2000
50332066000
Unavailable
70
HH collar screw M6x40 TX30
0025060406
Unavailable
71
HH collar screw M6x20 TX30
0025060206
Unavailable
72
HH collar screw M6x25 TX30
0025060256
Unavailable
75
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
80
CLUTCH SPRING 2,4X40 200'98
52332005000
Unavailable
95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
98
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
98
AXIAL WASHER 12,5X25,8X1,5
54637098300
Unavailable
99
CIRCLIP DIN7993-RW12
0993012000
Unavailable
