1968 Suzuki S32-2 Piston Crankshaft Diagram

← All diagrams

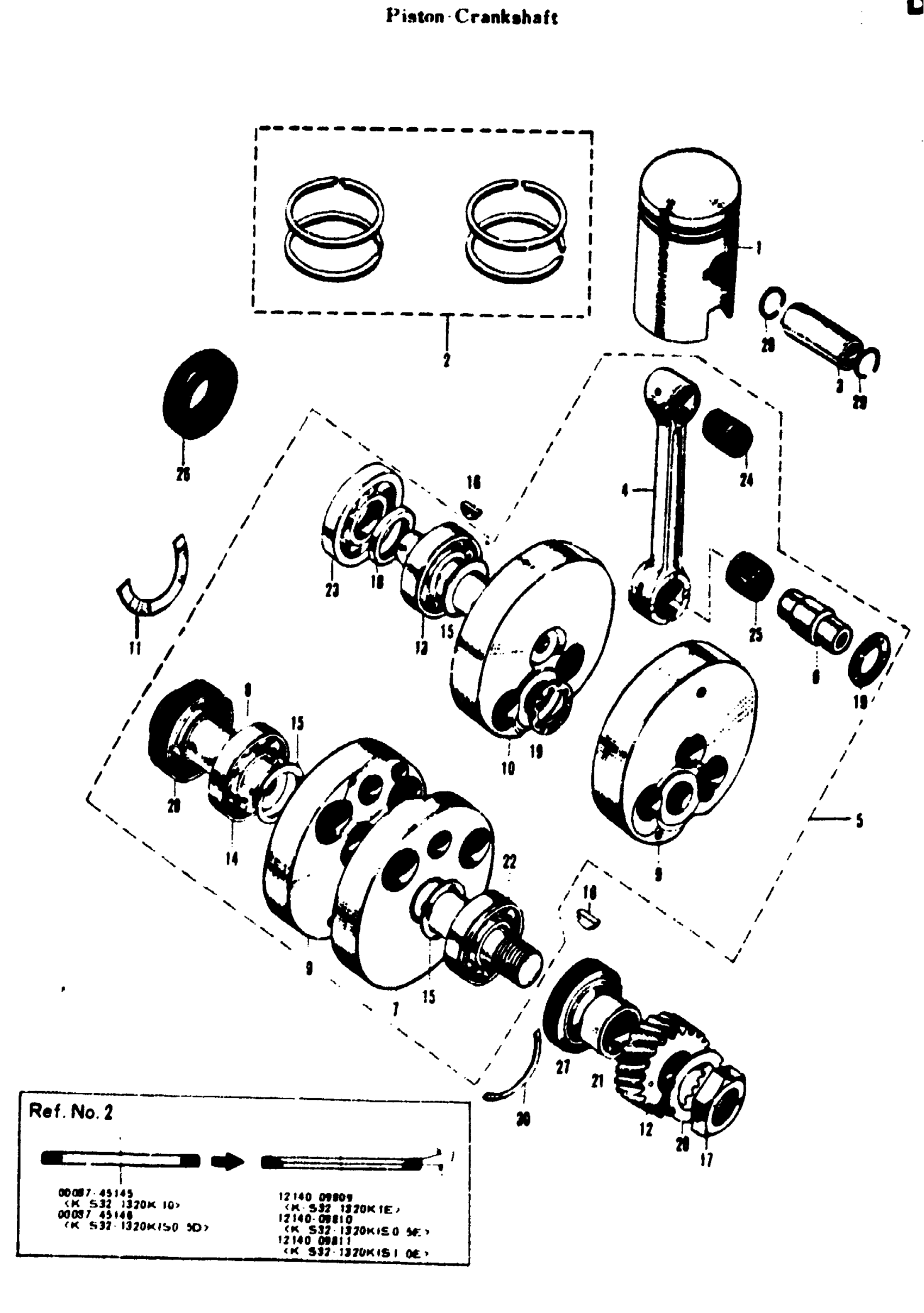

Find the part on the Piston Crankshaft diagram for your 1968 Suzuki S32-2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1968 Suzuki S32-2 Piston Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON

12110-09205

—
Out of stock

1

PISTON | OVER SIZE 0.5(0.02)

12110-09705

—
Out of stock

1

PISTON | OVER SIZE 1.0(0.04)

12110-09715

2
Out of stock

2

PISTON RING SET

12140-09809

—
Out of stock

2

PISTON RING SET | UP TO E. NO.S32 14077

00037-45145

—
Out of stock

2

PISTON RING SET

12140-09810

1
Out of stock

2

PISTON RING SET

00037-45146

—
Out of stock

2

PISTON RING SET | OVER SIZE 1.0(0.04)

12140-09811

—
Out of stock

3

PISTON PIN | OD=12(0.47)ID=8(0.32)L=37.5(1.48)

12151-09204

2
Out of stock

4

CONNECTING ROD

12161-09005

—
Out of stock

5

CRANK SHAFT ASS'Y

12006-09812

—
Out of stock

6

CRANK PIN

12211-09000

—
Out of stock

7

RIGHT CRANKSHAFT

12221-09201

—
Out of stock

8

CENTER CRANKSHAFT

12231-09200

—
Out of stock

9

CRANK WHEEL

12241-09201

—
Out of stock

10

LEFT CRANKSHAFT

12261-09204

—
Out of stock

11

CENTER CRANKSHAFT OIL SEAL POS

12342-09200

1
Out of stock

12

PRIMARY PINION | N T 20

21111-09204

—
Out of stock

13

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

1
Out of stock

14

BEARING, COUNTER SHAFT This part replaces 08113-63040.

09262-20073

1
Out of stock

15

SHIM (20X28X0.5) | OD=28(1.10)ID=20(0.79)T=0.5(0.02) This part replaces 08221-20285.

09181-20158

3
Out of stock

16

KEY This part replaces 08341-31049.

09420-04008

2
Out of stock

17

PRIMARY PINION NUT

09140-14002

1
Out of stock

18

LEFT CRANKSHAFT BEARING SPACER | OD=29(1.15)ID=20(0.79)T=3(0.12)

09160-20008

1
Out of stock

19

CONNECTING ROD THRUST WASHER | OD=35(1.38)ID=21(0.82)T=1.0(0.04)

09160-21002

—
Out of stock

20

PRIMARY PINION WASHER | OD=32(1.26)ID=14(0.55)T=1.2(0.55)

09166-14004

1
Out of stock

21

PRIMARY PINION SPACER | OD=26(1.02)ID=20(0.79)W=11(0.43)

09180-20013

1
Out of stock

22

RIGHT CRANKSHAFT SLOTTED BEARI | OD=52(2.05)ID=20(0.79)W=15(0.58)

09262-20003

1
Out of stock

23

LEFT CRANKSHAFT OUTER BEARING | OD=47(1.85)ID=20(0.79)W=9(0.35)

09262-20004

—
Out of stock

24

BEARING (12X16X16) | OD=16(0.63)ID=12(0.47)W=16(0.63) This part replaces 09263-12003.

09263-12023

2
Out of stock

25

CRANK PIN BEARING | OD=27(1.06)ID=20(0.79)T=0.5(0.02)

09263-21001

—
Out of stock

26

LEFT CRANKSHAFT OIL SEAL | OD=47(1.85)ID=20(0.79)W=9(0.35)

09203-20013

—
Out of stock

27

RIGHT CRANKSHAFT OIL SEAL | OD=52(2.05)ID=26(1.02)W=9(0.35)

09283-26003

1
Out of stock

28

CENTER CRANKSHAFT OIL SEAL | OD=52(2.05)ID=20(0.79)W=9(0.35)

09289-20002

1
Out of stock

29

SNAP RING

09381-12001

4
Out of stock

30

SLOTTED BEARING POSITIONING PI

09390-12001

—
Out of stock
