1968 Suzuki S32-2 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1968 Suzuki S32-2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

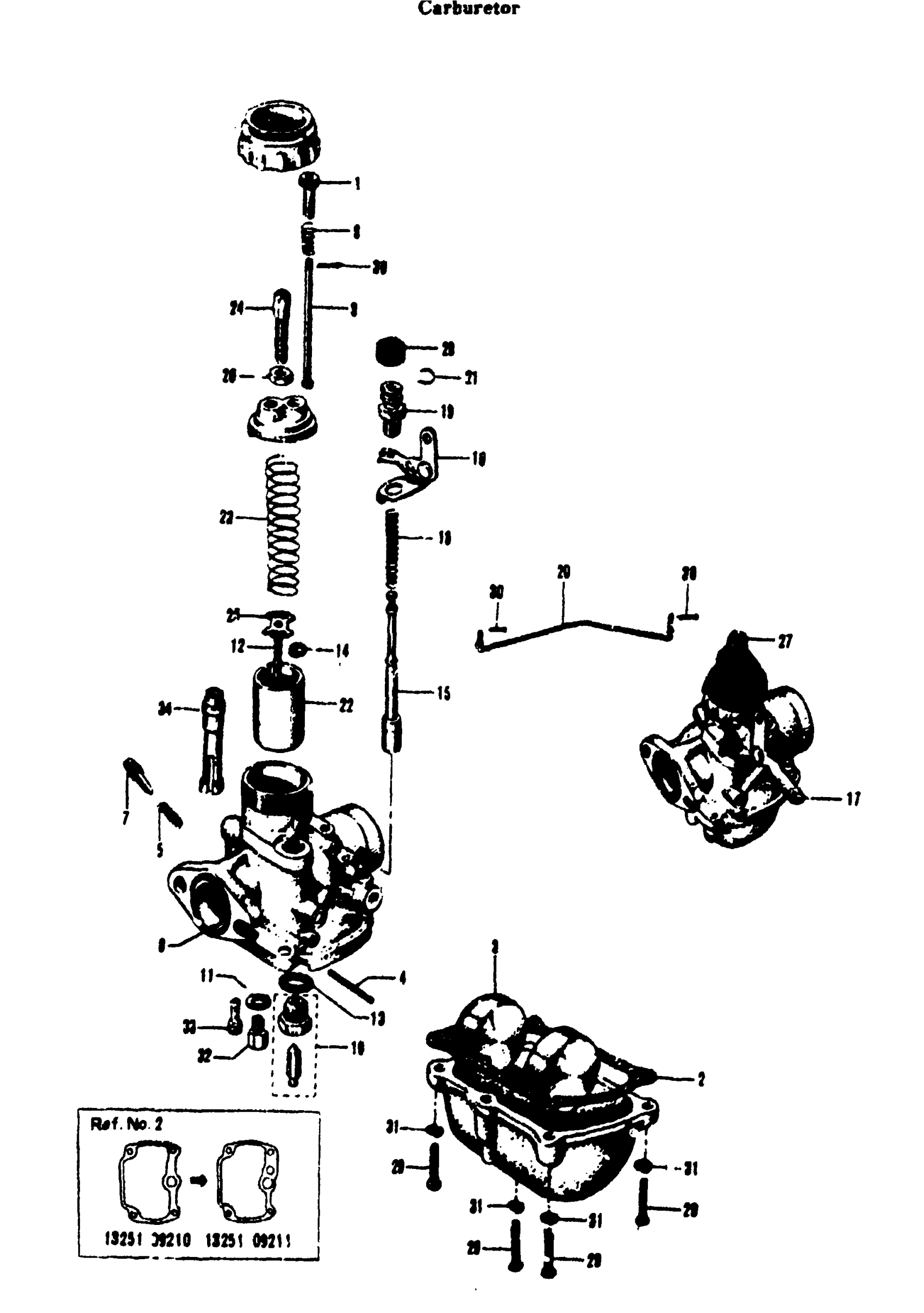

1968 Suzuki S32-2 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE VALVE ADJUSTING SCREW

13267-09210

2
Out of stock

2

FLOAT CHAMBER GASKET

13251-09211

2
Out of stock

2

FLOAT CHAMBER GASKET

13251-09210

2
Out of stock

3

FLOAT

13252-09210

2
Out of stock

4

2

$4.80

In stock

5

PILOT AIR ADJUSTING STOP SPRIN | O.D. =5(0.20), L= 9.5(0.37)O.D. =5(0.20), L= 9.5(0.37)

13268-01010

2
Out of stock

7

PILOT AIR ADJUSTING SCREW

13269-01010

2
Out of stock

8

OUTLET "O" RING | O.D.=27(1.06), I.D.=22.6(0.89), T=2.2(0.09)

13295-09210

2
Out of stock

9

THROTTLE VALVE ADJUSTING ROD

13296-09210

2
Out of stock

10

NEEDLE VALVE ASS'Y

13370-09211

2
Out of stock

12

JET NEEDLE

13383-11011

—
Out of stock

13

VALVE SEAT GASKET | O.D.=10(0.39), I.D.=7.2(0.28), T=0.5(0.02)

13392-01010

2
Out of stock

14

NEEDLE CLIP

13394-03010

2
Out of stock

15

STARTER PLUNGER

13411-09210

2
Out of stock

16

RIGHT PLUNGER LEVER

13413-09210

—
Out of stock

17

LEFT PLUNGER LEVER

13414-09210

—
Out of stock

18

STARTER PLUNGER SPRING | O.D.=6.5(0.26), L=40(1.57)

13417-09210

2
Out of stock

19

STARTER PLUNGER CAP

13418-09210

—
Out of stock

20

PLUNGER LEVER LINK

13425-09210

—
Out of stock

21

STARTER PLUNGER STOP CLIP

13426-11010

—
Out of stock

22

THROTTIE VALVE | CUT AWAY 2.0

13551-09210

—
Out of stock

23

SPRING, THROTTLE VALVE | O.D.=18(0.71), L.=75(2.95) This part replaces 13573-09210.

13573-36110

2
Out of stock

24

ADJUSTER This part replaces 13577-03010.

13577-48110

2
Out of stock

25

NEEDLE CLIP STOPPER

13581-09210

2
Out of stock

26

CABLE ADJUSTER LOCK NUT

13661-03010

2
Out of stock

27

CABLE ADJUSTER CAP

13681-09210

2
Out of stock

28

STARTER PLUNGER SEAL RUBBER | O.D.=13(0.51), I.D.=4.2(0.16), H.=6(0.23)

13682-09210

2
Out of stock

29

CROSS HEAD SCREW

02111-04181

—
Out of stock

30

CROSS HEAD SCREW

02111-04161

—
Out of stock

30

COTTER PIN

04111-12088

—
Out of stock

31

LOCK WASHER This part replaces 08321-21048.

08321-0104A

8
Out of stock

32

MAIN JET | #80

09491-80001

2
Out of stock

32

MAIN JET | #75

09491-75001

2
Out of stock

32

MAIN JET | #85

09491-85001

2
Out of stock

32

MAIN JET | #90

09491-90001

2
Out of stock

33

NO DESCRIPTION AVAILABLE | #25 This part replaces 09492-25002.

09492-25006

2
Out of stock

34

NEEDLE JET

09494-00016

—
Out of stock
