Partiron

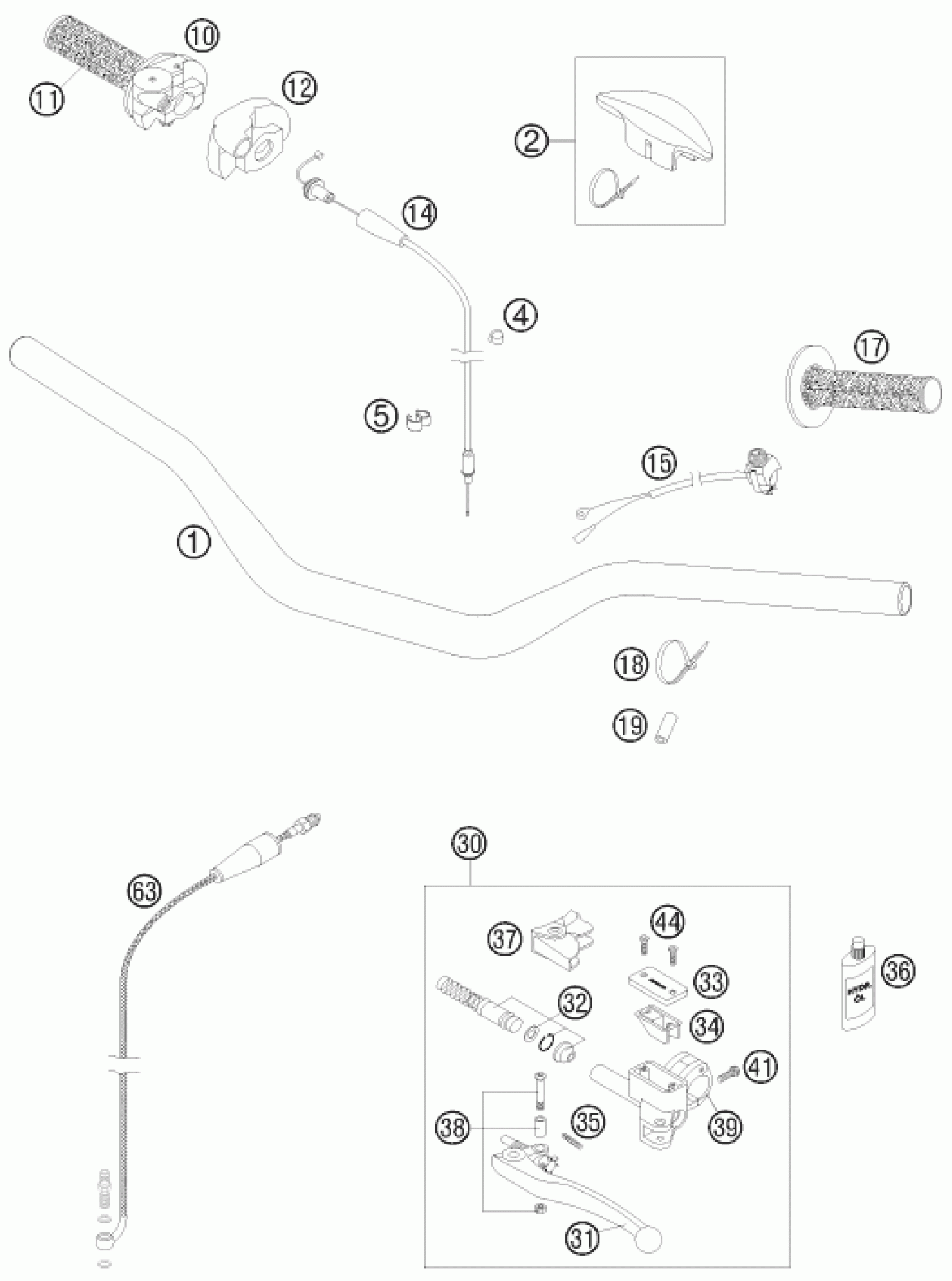

KTM 144 SX <2008> HANDLEBAR, CONTROLS Diagram

#

Description
Price

38

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

39

CLAMP WITH PIN 2000

50302030150

Unavailable

41

HH collar screw M6x16 TX30

0025060166

Unavailable

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

63

CLUTCH PIPE L=970MM 04

50332063200

Unavailable

1

HANDLEBAR RENTHAL SX 28MM 08

7730200110017

Unavailable

2

HANDLEBAR PAD 05

59002002000

Unavailable

4

WIRING HOLDER 12MM

57013072000

Unavailable

10

TH.TWIST CRIP CPL. W.O.CA. 04

54802010000

Unavailable

11

TWIST GRIP COVER RENTHAL 04

54802013000

Unavailable

12

PROTECTION COVER '97

50302020000

Unavailable

14

THROTTLE C. 125-380 DOM/KEIH

50302091000

Unavailable

15

Kill switch

50311089200

Unavailable

17

FIXED GRIP RENTHAL 04

54802039000

Unavailable

18

Cable tie 200/4.6mm black

44011076200

Unavailable

19

HOSE 7x11x30MM

58007016300

Unavailable

30

MASTER CYLINDER CPL. 9,5MM 04

50302030200

Unavailable

31

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

31

CLUTCH LEVER LONG CPL. 2003

59002031000

Unavailable

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

Unavailable

33

COVER HYD.CLUTCH 2T 2000

50302033100

Unavailable

34

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

35

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

36

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

5

CLIP 5/7 MM 06

60111094000

Unavailable
