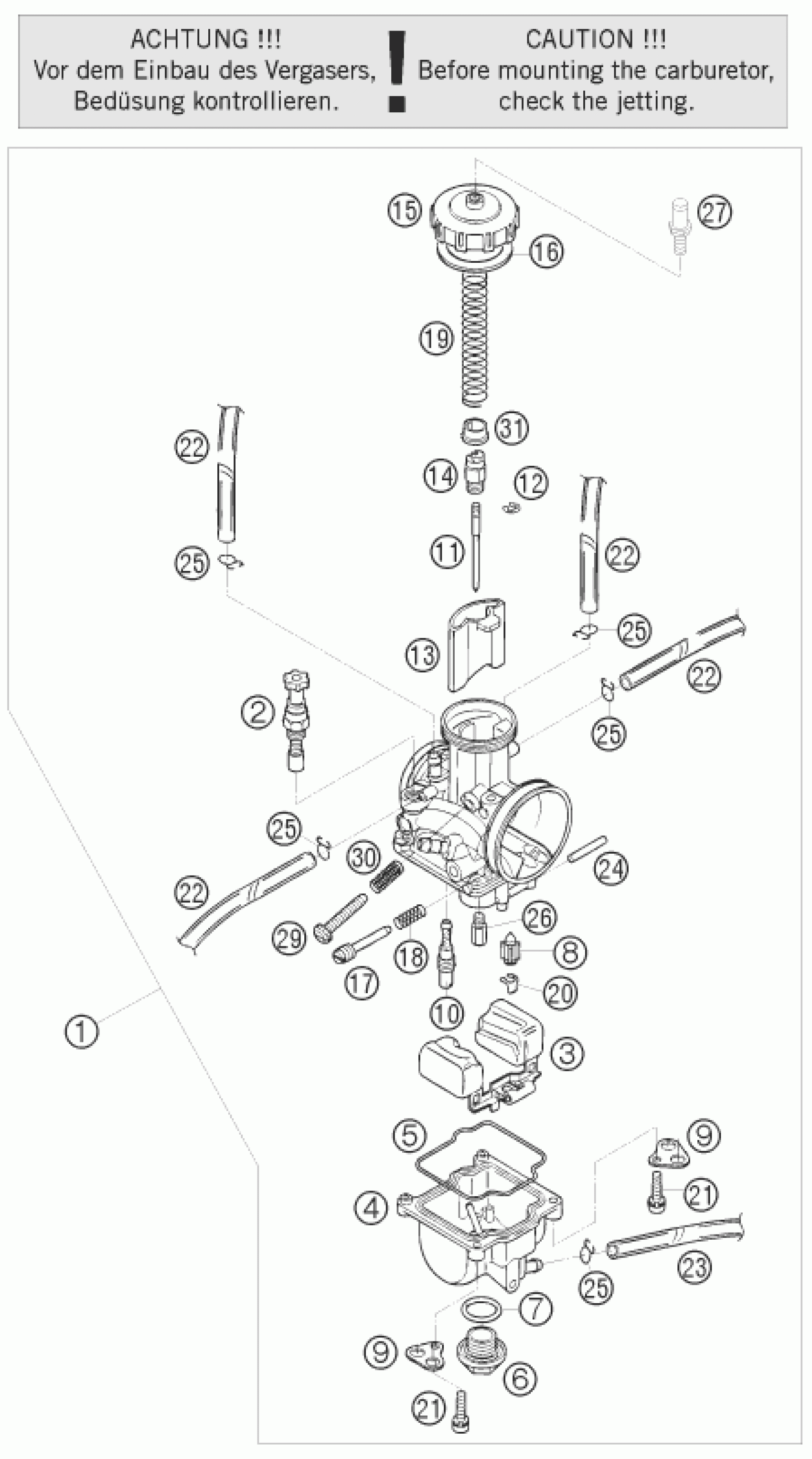

KTM 144 SX <2008> CARBURETOR Diagram

#

Description
Price

11

JET NEEDLE KEIHIN R1473H 08

54531634473

Unavailable

26

MAIN JET 195 KEIHIN

54531623195

Unavailable

26

MAIN JET 198 KEIHIN

54531623198

Unavailable

26

MAIN JET 200 KEIHIN

54531623200

Unavailable

26

MAIN JET GR. 202 KEIHIN

54531623202

Unavailable

26

MAIN JET 205 KEIHIN

54531623205

Unavailable

26

MAIN JET 208 KEIHIN

54531623208

Unavailable

26

MAIN JET 210 KEIHIN

54531623210

Unavailable

26

MAIN JET 212 KEIHIN

54531623212

Unavailable

26

MAIN JET 215 KEIHIN

54531623215

Unavailable

11

JET NEEDLE KEIHIN R1470H 08

54531634470

Unavailable

11

JET NEEDLE KEIHIN R1471H 08

54531634471

Unavailable

11

JET NEEDLE KEIHIN R1472H 08

54531634472

Unavailable

1

CARBUR. KEIHIN PWK 39 FJ11 08

51531001144

Unavailable

2

STARTER PISTON CPL.

54631245000

Unavailable

3

FLOAT R-39 16GRAM

54631209000

Unavailable

4

FLOAT CHAMBER

54631211000

Unavailable

5

GASKET FLOAT CHAMBER

54531610000

Unavailable

6

PLUG M 18X1

54531699000

Unavailable

7

O-RING 18,00X2,30 NBR 70

0770180230

Unavailable

8

FLOAT NEEDLE

54631220000

Unavailable

9

RETAINING PLATE FOR BLEEDER

54531612100

Unavailable

10

IDLE JET 40 KEIHIN

54531607040

Unavailable

10

IDLE JET 42 KEIHIN

54531607042

Unavailable

10

IDLE JET 45 KEIHIN

54531607045

Unavailable

10

IDLE JET 48 KEIHIN

54531607048

Unavailable

10

IDLE JET 50 KEIHIN

54531607050

Unavailable

10

IDLE JET 52 KEIHIN

54531607052

Unavailable

10

IDLE JET 55 KEIHIN

54531607055

Unavailable

12

CLIP FOR JET NEEDLE

54531629000

Unavailable

13

THROTTLE VALVE 55 KEIHIN

54631235055

Unavailable

14

NIPPLE

54631232000

Unavailable

15

CARBURETOR COVER

54631227000

Unavailable

16

RUBBER SEAL RING 40X46X1

54531628000

Unavailable

17

ADJUSTMENT SCREW

54531617000

Unavailable

18

SPRING FOR ADJUSTMENT SCREW

54531615000

Unavailable

19

SLIDING SPRING

54831030000

Unavailable

20

CLAMP

54531621000

Unavailable

21

HH COLLAR SCREW M 4X16 WS=6

0016040163

Unavailable

22

PVC-HOSE 4X6MM

31007007101

Unavailable

23

PVC-HOSE 3X5MM

52031137001

Unavailable

24

STUD 2,5X25

54531608000

Unavailable

25

Clamp 6mm

54531696000

Unavailable

27

THROTTLE CALBE HOLDER M6X0,75

54831029000

Unavailable

29

ADJUSTMENT SCREW M 5

54631219100

Unavailable

30

SPRING

54631118000

Unavailable

11

JET NEEDLE KEIHIN R1469H 08

54531634469

Unavailable

26

MAIN JET 218 KEIHIN

54531623218

Unavailable

26

MAIN JET 220 KEIHIN

54531623220

Unavailable

31

SPRING CAP

54631231000

Unavailable
