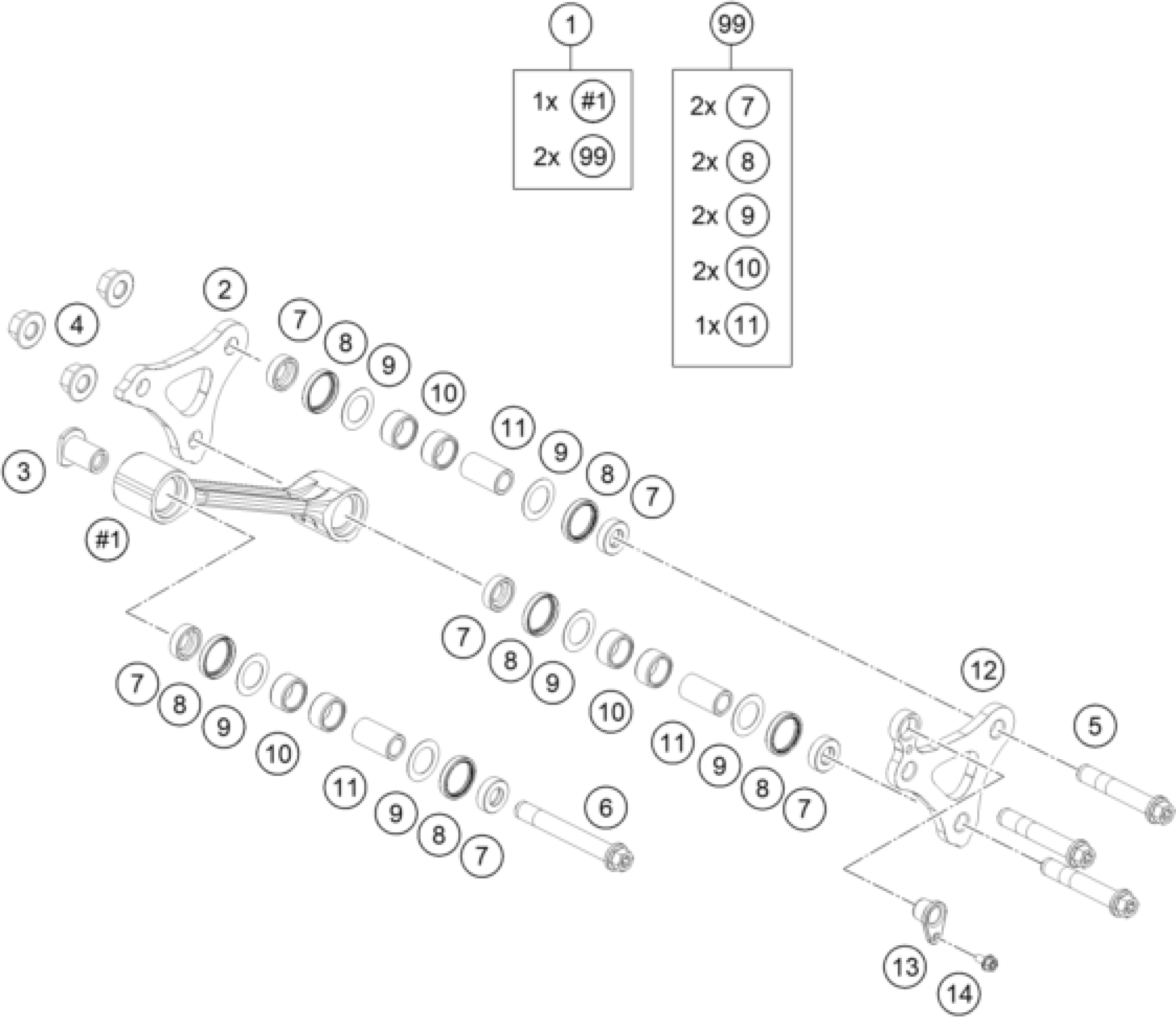

KTM 1390 SUPER DUKE R EVO, black 2024 PRO LEVER LINKING Diagram

#

Description

Price

1

Pull rod cpl.

61704083044C1

Unavailable

2

Triangular plate

61704080000C1

Unavailable

3

Bushing pull rod bolting

61704080030

Unavailable

4

Hex.nut w.flange EN 1661 M12-1

06923120006

Unavailable

5

Hexagonal bolt M12x70 ISA 45 M

0025120706S

Unavailable

6

HH collar screw M12x90 ISA 45

0025120906S

Unavailable

7

Bucket for shaft seal ring 24x

61704080020

Unavailable

8

Radial shaft seal 24X30X5

0760243050

Unavailable

9

Shim 29.75x19x0.4

50180604

Unavailable

10

Needle bushing HK1812 18/24/12

06181824120

Unavailable

11

Bearing sleeve 12x18x33.5

61704080010

Unavailable

99

Repair kit linkage

61704083010

Unavailable

12

Triangular plate

A62704081000C1

Unavailable

13

Magnet bracket

A62416061000

Unavailable

14

Hex coll. screw M5x10 ISA30 se

0025050106S

Unavailable
