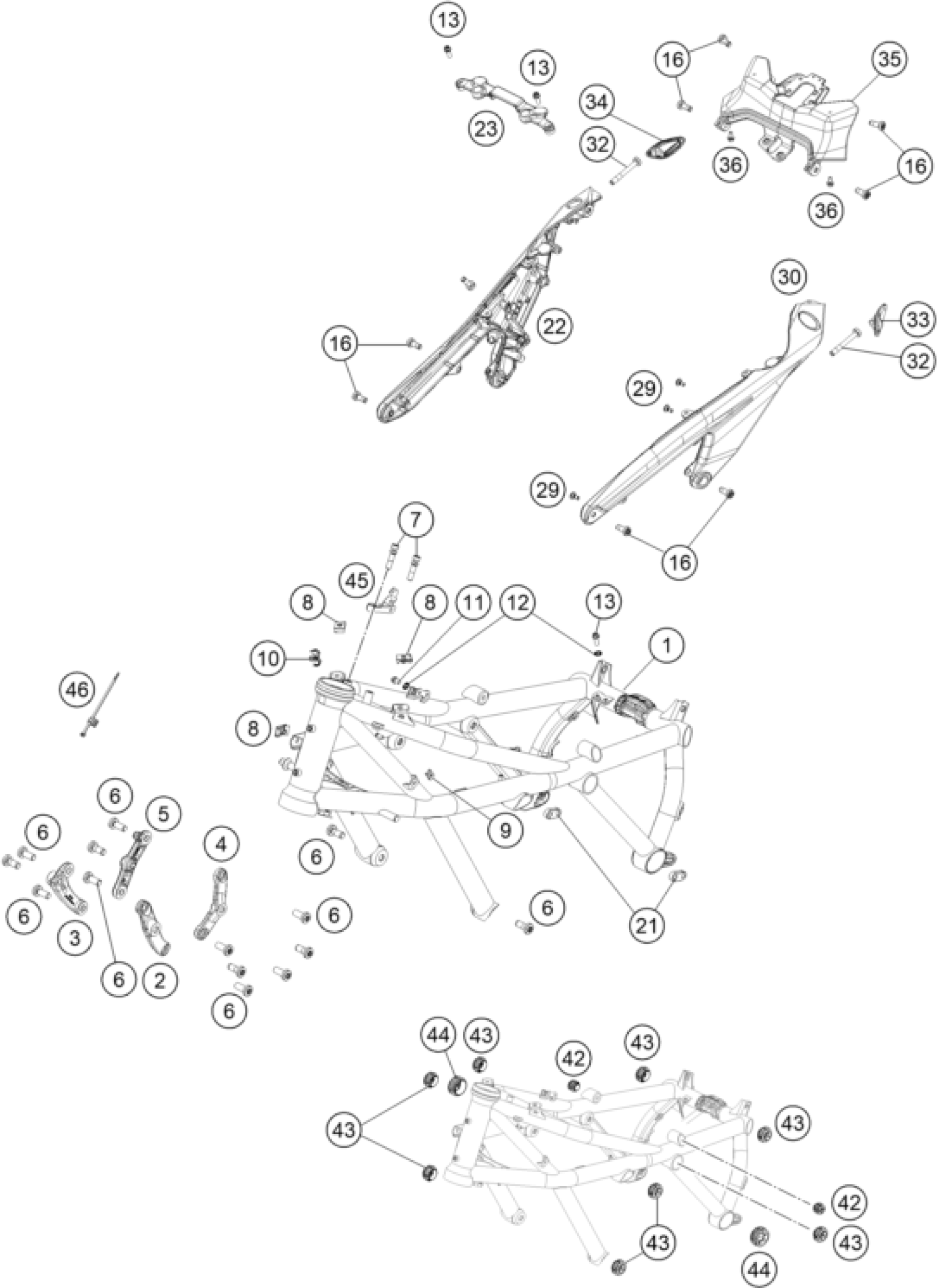

KTM 1390 SUPER DUKE R, black, Display 2025 FRAME Diagram

#

Description

Price

1

Frame A624

A62403001100EB

Unavailable

2

Engine brace, front, left

A62403005000C1

Unavailable

3

Engine brace, front, right

A62403006000C1

Unavailable

4

Engine brace, rear, left

A62403007000C1

Unavailable

5

Engine brace, rear, right

A62403008000C1

Unavailable

6

HH collar screw M10x24 ISA45 S

0035100249S

Unavailable

7

Special screw for ignition loc

0900000802801

Unavailable

8

clip nut M6

54603048100

Unavailable

9

clip nut M5

69008021080

Unavailable

10

Support ABS-pipe d7.5

61342046000

Unavailable

11

HH collar screw M6x10 TX30

0025060106

Unavailable

12

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

13

HH collar screw M6x16 TX30

0025060166

Unavailable

16

SHCS M8x20 TX45

0035080206S

Unavailable

21

Footrest bottom fixing nut

61703045010

Unavailable

22

Subframe right black

61703002020C1

Unavailable

23

Fuel tank bridge

61703002030C1

Unavailable

29

Screw, reservoir

69013099150

Unavailable

30

Subframe left black

61703002010C1

Unavailable

32

Hex screw w.intern.Torx w.coll

0035080606S

Unavailable

33

Mounting flange top left black

61703002054C1

Unavailable

34

Mounting flange top right blac

61703002055C1

Unavailable

35

Cross brace, rear part

A62403002040C1

Unavailable

36

HH collar screw M5x10 TX30

0025050106

Unavailable

42

Plug small

61703288000

Unavailable

43

Plug, small

61703188000

Unavailable

44

Plug, large

61703088000

Unavailable

45

Connector support ignition loc

A62411066010

Unavailable

46

Cable tie with foot section

0330000520000

Unavailable
