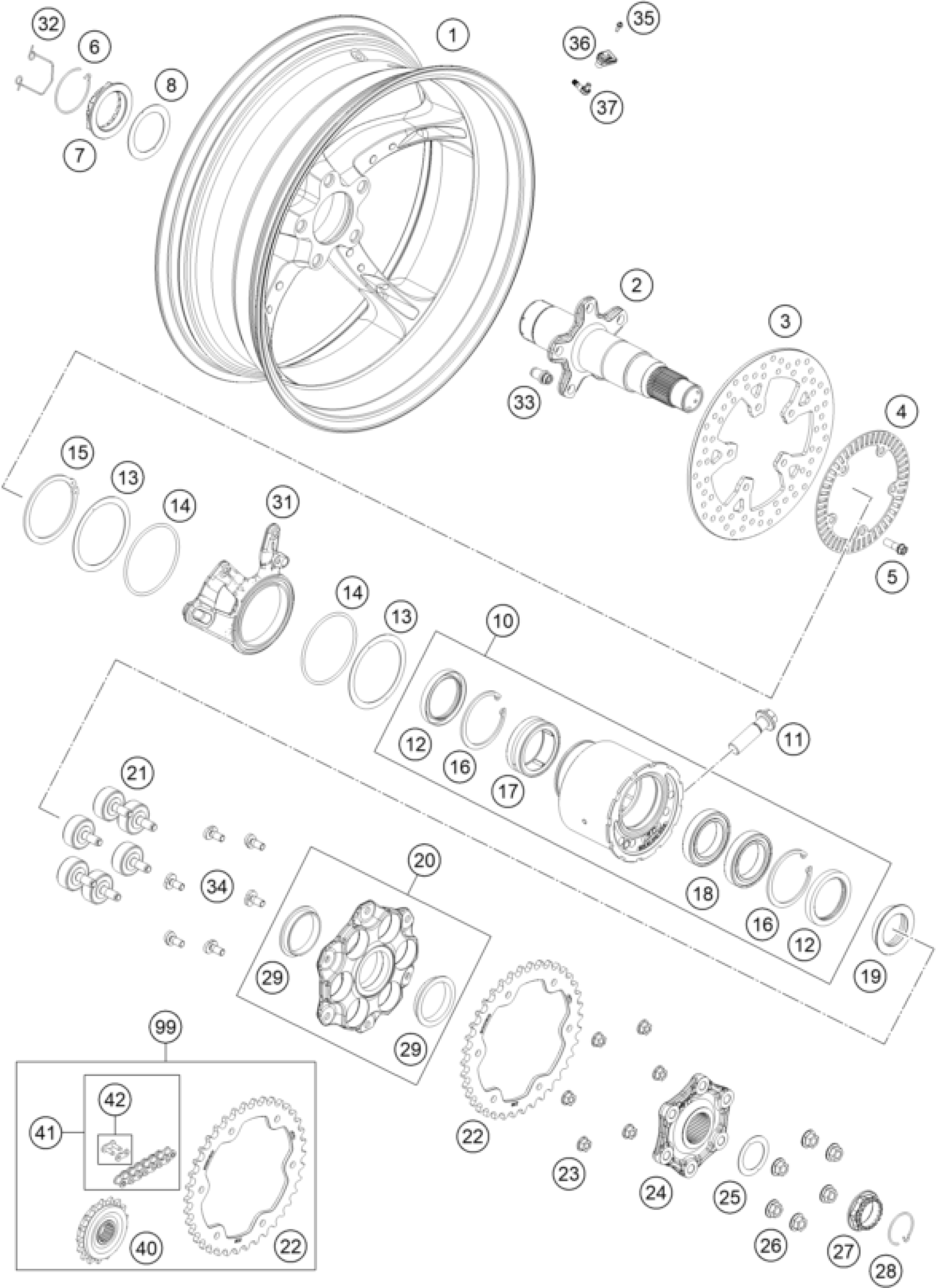

KTM 1390 SUPER DUKE R, black 2025 REAR WHEEL Diagram

#

Description

Price

1

Rear wheel 6x17"

61710003000C1

$559.87

2

Rear wheel axle

61310385200

Unavailable

3

BRAKE DISC 240MM

76010160000

$147.72

4

Phonic wheel, rear

76042121000

$43.00

5

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

6

Safety wire, right

61310187000

$4.24

7

AXLE NUT M50X1.5

61310186100

$45.90

8

WASHER 69X1

61310016000

$6.63

10

CLUTCH HUB HOUSING CPL.

61310010044

$525.37

11

HH collar screw M16X1.5X55

61310021000

$8.69

12

Radial shaft seal 52X68X8

0760526880

$6.82

13

WASHER 94X1

61310019000

$6.72

14

O-ring 84.00X3.5 NBR70

0770840035

$2.54

15

CIRCLIP DIN471-78X2.5

0471078250

$3.39

16

CIRCLIP DIN472-68X2.5

0472068250

$2.54

17

NEEDLE BEARING RNA4909-2RSR-XL

0617456822

$70.77

18

Grooved ball bearing 61909-2RS

0625061909

$66.47

19

Spacer ring

61310014100

$29.35

20

SPROCKET SUPPORT CPL.

6131005404433S

$185.59

21

Shock absorber

61310059100

$22.71

22

SPROCKET STEEL DUKE 1290 Z38

61310151038

$90.31

23

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.54

24

JAR DAMPER CARRIER

6131005000033S

$97.23

25

SHIM 50X1

76010116000

$6.63

26

Hex. nut DIN6923 M10X1.25-10

06923100003

$1.69

27

AXLE NUT M35X1.5

61310086000

$33.09

28

Safety wire, left

76010187000

$4.24

29

IGUS BEARING D=50

76010052000

$22.43

31

BRAKE CALIPER ADAPTER BLACK

6131307500033S

$94.30

32

Safety wire, inner

61310010011

$6.91

33

Centering bolt M8

61310213000

$12.33

34

Rear sprocket screw M8x18 S

61310052100

$2.54

35

Screw M5x15 for TPMS

0900000501500S

$3.39

36

Tire pressure sensor

61912033000

$74.51

37

Angle valve 8.3 mm for TPMS

61912033060

$20.84

40

Chain sprocket 17-t, damped 0

60033129017

$59.18

41

CHAIN DID525 VAZ & MASTER LINK

61310165118

Unavailable

42

MASTER LINK FOR CHAIN DID VAZ

61310066000

Unavailable

99

DRIVETRAIN KIT 1290 SD 17T/38T

00050002029

Unavailable
