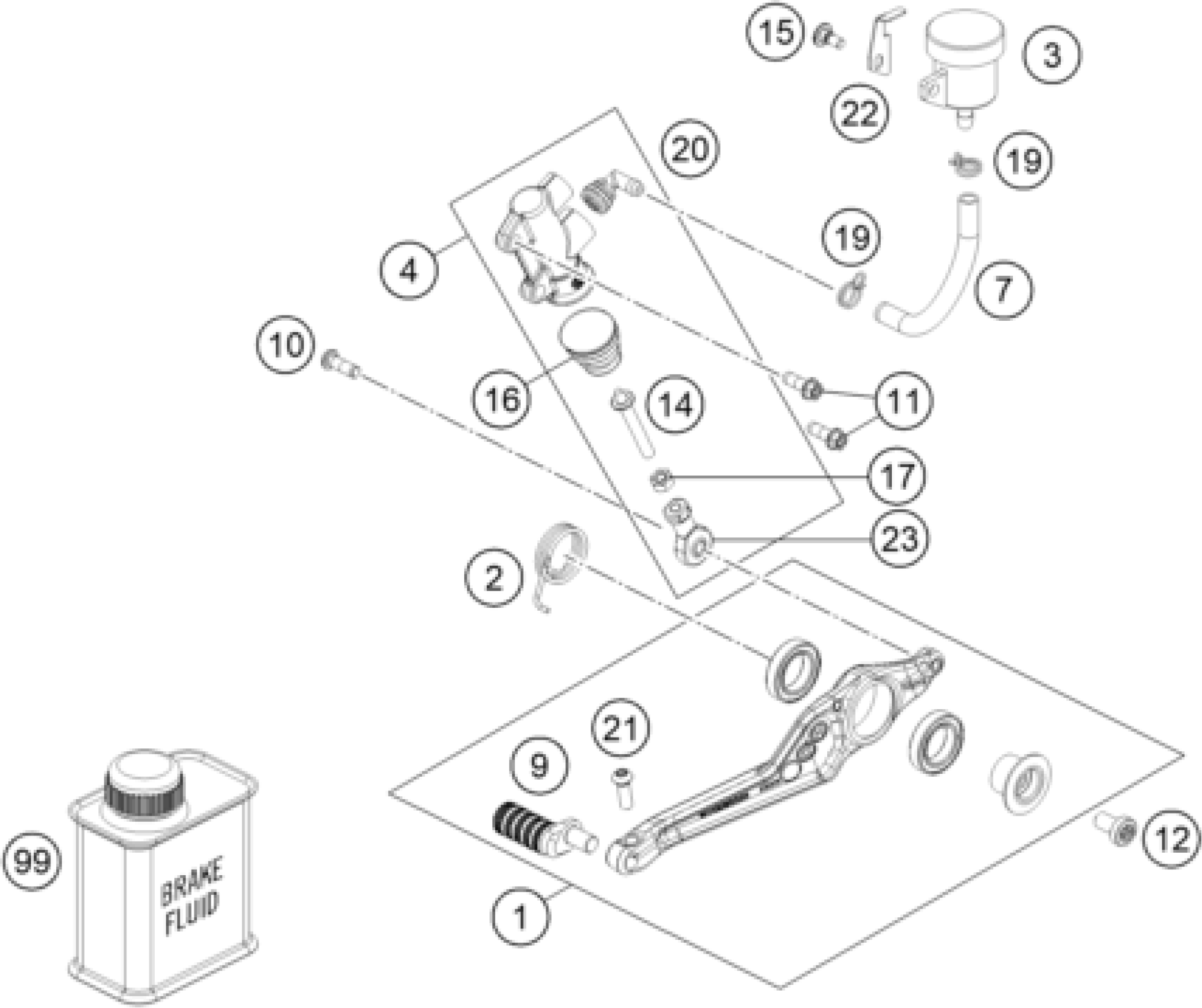

KTM 1390 SUPER DUKE R, black 2025 REAR BRAKE CONTROL Diagram

#

Description

Price

1

Rear brake lever cmpl.

61713050133C1

Unavailable

2

Leg spring

61713052000

Unavailable

3

Brake fluid reservoir cmpl.

61713069044

Unavailable

4

Rear master cylinder

61713060000C1

Unavailable

7

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

9

Footbrake lever step plate

61713051000C1

Unavailable

10

oval head screw M6x18 A2-70 S

0738060185S

Unavailable

11

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

12

AH-COLLAR SCREW M8X15 TORX45

0035080156S

Unavailable

14

PUSH ROD CPL.

60313056044

Unavailable

15

Screw, reservoir

69013099150

Unavailable

16

RUBBER SLEEVE

54513151000

Unavailable

17

STOP NUT DIN6926 M8 SS

0926080003

Unavailable

19

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

20

ANGLE PIECE

54513155000

Unavailable

21

Round head scr. ISR M6x18-A2-7

0738060185

Unavailable

22

Lock washer, brake fluid reser

61713069020

Unavailable

23

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
