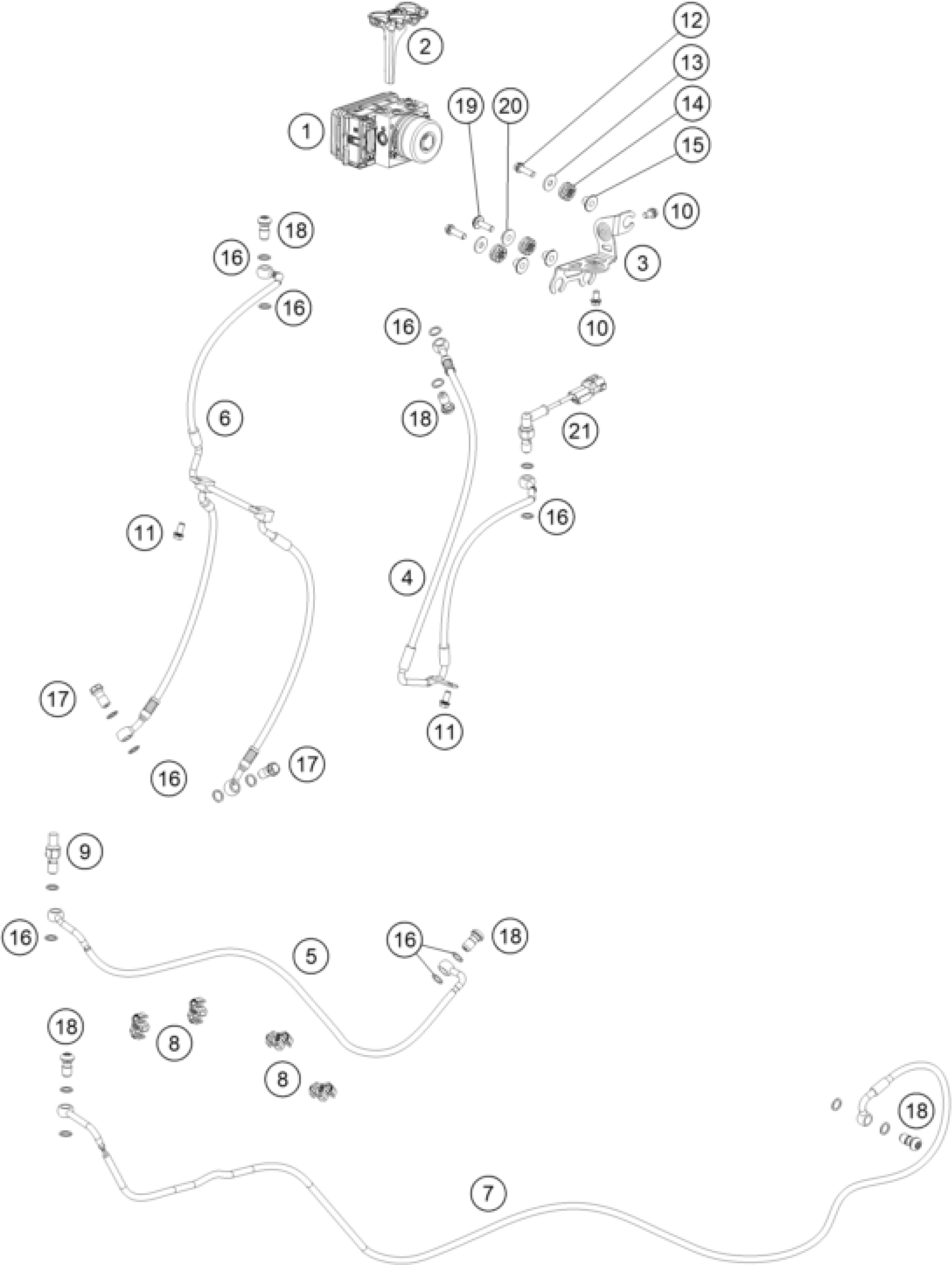

KTM 1390 SUPER DUKE R, black 2025 ABS Diagram

#

Description

Price

1

ABS module filled

A61042031044

Unavailable

2

Brake line locking mechanism

A62442050000

Unavailable

3

Retaining bracket ABS modulato

61742040000C1

Unavailable

4

Brake line brake cylinder

A62442001000

Unavailable

5

Brake line rear master cylinde

61742002000

Unavailable

6

Brake line brake caliper front

A62442003000

Unavailable

7

Brake line rear brake caliper

A62442004000

Unavailable

8

Support ABS-pipe d7.5

61342046000

Unavailable

9

BRAKE LIGHT SWITCH REAR

60311051000

Unavailable

10

HH collar screw M6x10 TX30

0025060106

Unavailable

11

HH collar screw M6x12 TX30

0025060126

Unavailable

12

HH collar screw M6x20 TX30

0025060206

Unavailable

13

Washer DIN9021-A 6.4

0021060003

Unavailable

14

Damper 40 SHORE

62142041100

Unavailable

15

Collar bushing 6.5X9X18X8.5

61342041000

Unavailable

16

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

17

HOLLOW SCREW M10X1X19 SW12

69013025000

Unavailable

18

banjo bolt M10x1x19.5

62113020100

Unavailable

19

HH collar screw M6x20 TX30

0024060206

Unavailable

20

Spring retainer 6.2X12X18X5.2

59032006050

Unavailable

21

Brake light switch

63711051100

Unavailable
