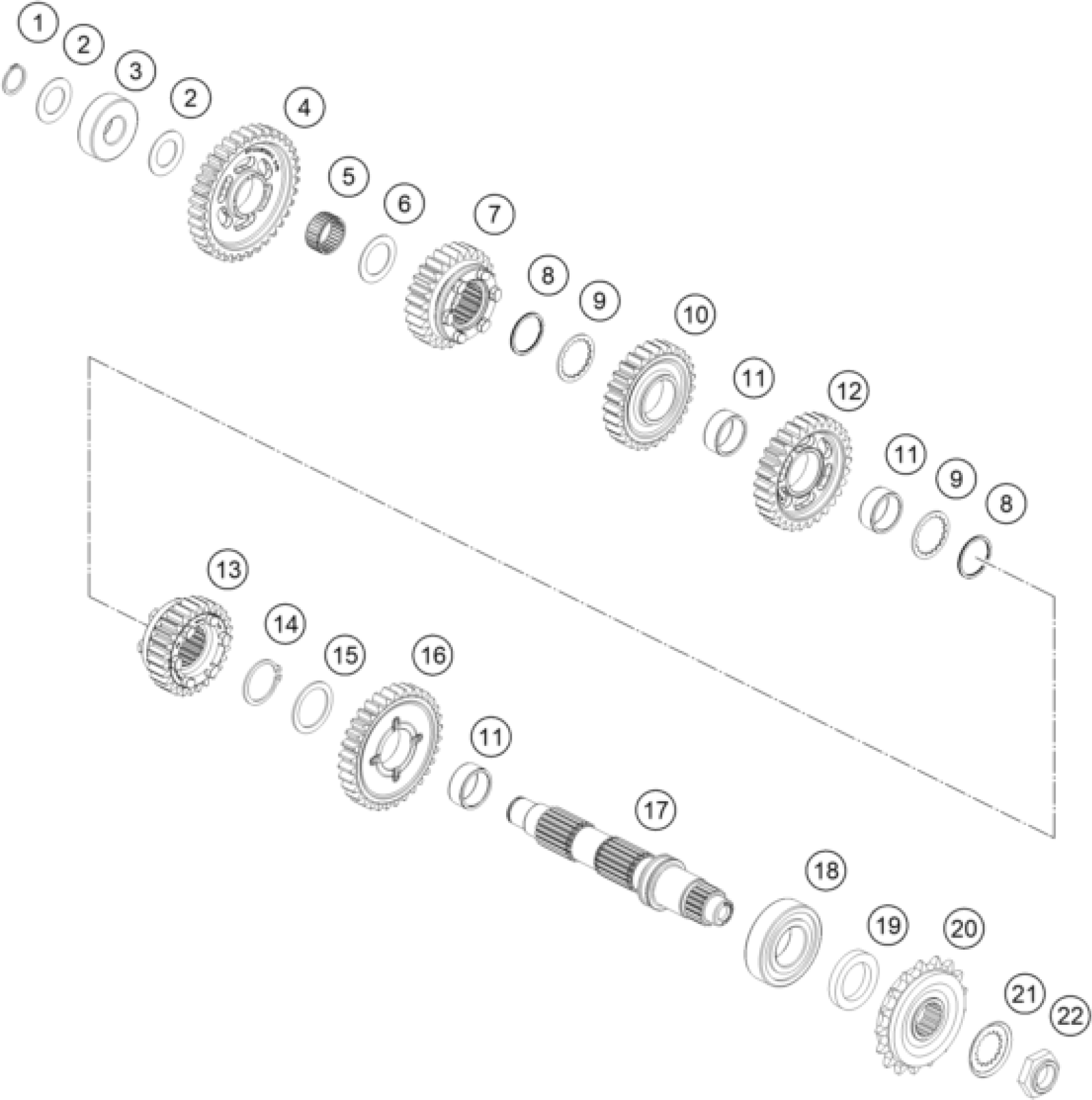

KTM 1390 SUPER DUKE R, black 2024 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description

Price

1

CIRCLIP DIN471 20X1,2

0471200120

Unavailable

2

STOP DISK 20,2 X 34 X 1

60033043000

Unavailable

3

Grooved ball bearing 6204 J1 C

0006252001401

Unavailable

4

Idler gear, 1st gear

61733011000

Unavailable

5

Needle bearing 24x28x13

0030302401300

Unavailable

6

STOP DISK 24,3/35,75/1

60033044000

Unavailable

7

Sliding gear 5th

A62433015000

Unavailable

8

TWISTED CIRCLIP D29

0471029000

Unavailable

9

STOP DISK 27/36/1,5

61233045000

Unavailable

10

Idler gear, 4th gear

61733014000

Unavailable

11

NEEDLE BEAR. K 26-31-13

0405263113

Unavailable

12

Idler gear, 3rd gear

61733013000

Unavailable

13

Sliding gear 6th

A62433016000

Unavailable

14

CIRCLIP DIN471 30x1,5

0471300150

Unavailable

15

STOP DISK 29,9/39/1,5

61233046000

Unavailable

16

Idler gear, 2nd gear

61733012000

Unavailable

17

Countershaft

61733010000

Unavailable

18

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

Unavailable

19

SH.SEAL RING 30X47X7 BSL VITON

0760304772

Unavailable

20

Chain sprocket 17-t, damped 0

60033129017

Unavailable

21

Securing plate toothed

60033034000

Unavailable

22

Hexagon nut M20x1.5 WS32

60033035000

Unavailable
