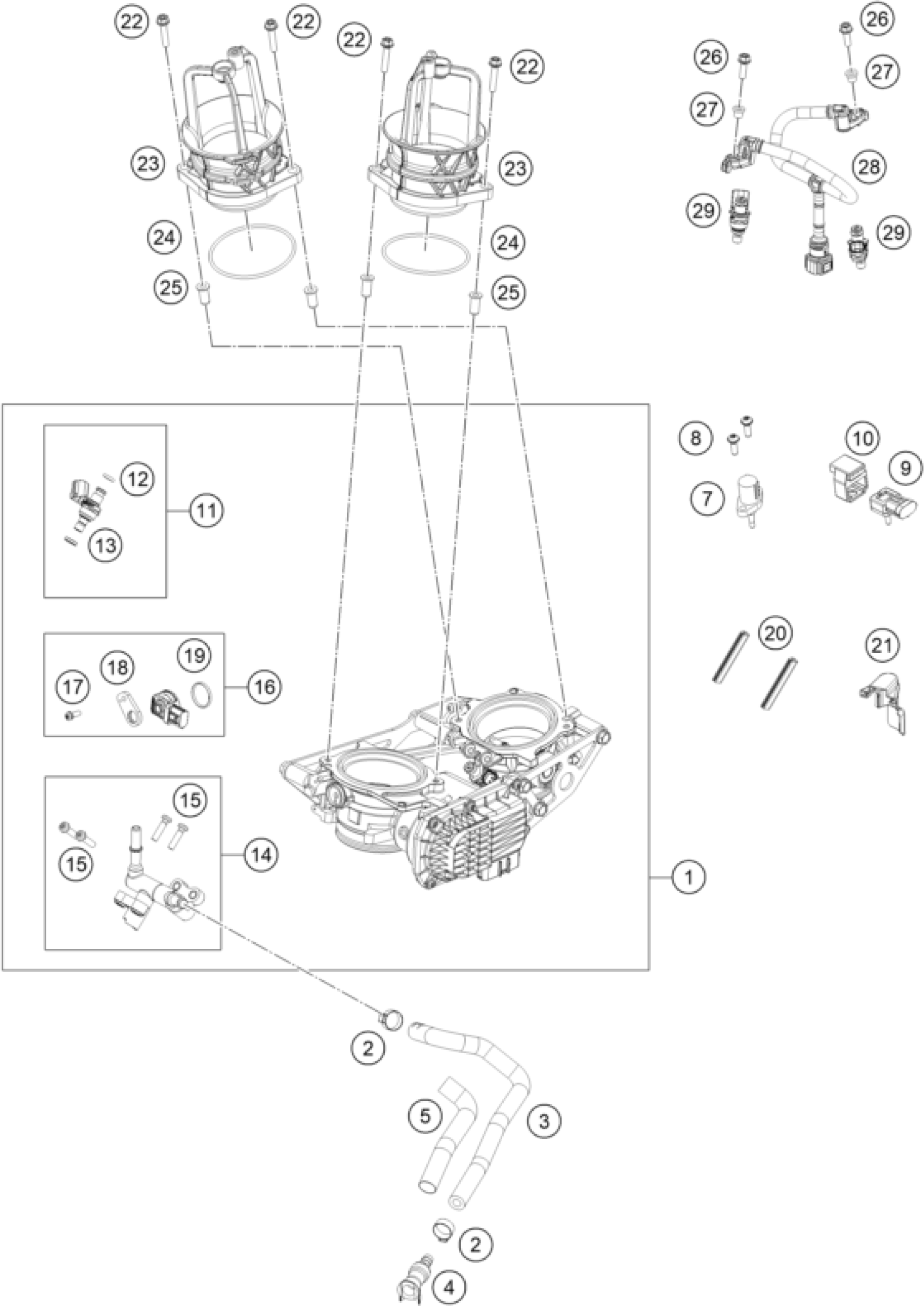

KTM 1390 SUPER DUKE R, black 2024 THROTTLE BODY Diagram

#

Description

Price

1

Throttle body

A62441001000

Unavailable

2

Variable one-ear clamp 15.7mm

00050157706

Unavailable

3

Fuel hose

A62407016050

Unavailable

4

PLUG CPC

7720701000030

Unavailable

7

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

8

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

9

Ambient air pressure sensor

A61241085000

Unavailable

10

Ambient air pressure sensor ru

A61241085050

Unavailable

11

Injector cmpl.

79441123044

Unavailable

12

O-RING

60341023020

Unavailable

13

SEAL RING

75041023010

Unavailable

14

Fuel rail cmpl.

A62441006044

Unavailable

15

Screw M5x19

0900000501900

Unavailable

16

Manifold air pressure sensor c

A62441085044

Unavailable

17

SCREW WASHER

75041085030

Unavailable

18

PLATE

77741085020

Unavailable

19

O-RING

75041085010

Unavailable

21

Throttle body edge protection

A62441022020

Unavailable

20

EDGE PROTECTOR L=45MM 05

61011055045

Unavailable

22

HH collar screw M5x25 TX30

0025050256S

Unavailable

23

Velocity stack L=60

A60041040000

Unavailable

24

O-ring d-70x2.5

0770007002500

Unavailable

25

Bushing intake funnel

60306042010

Unavailable

26

HH Collar Screw M5x16 ISA30 SS

0025050166S

Unavailable

27

SUPPORTING SLEEVE 5,2X7X10X7,7

59036018050

Unavailable

28

Topfeeder fuel line cmpl.

A62407057000

Unavailable

29

Injector

A62441023044

Unavailable

5

Protective sleeve fuel hose

A60707016020

Unavailable
