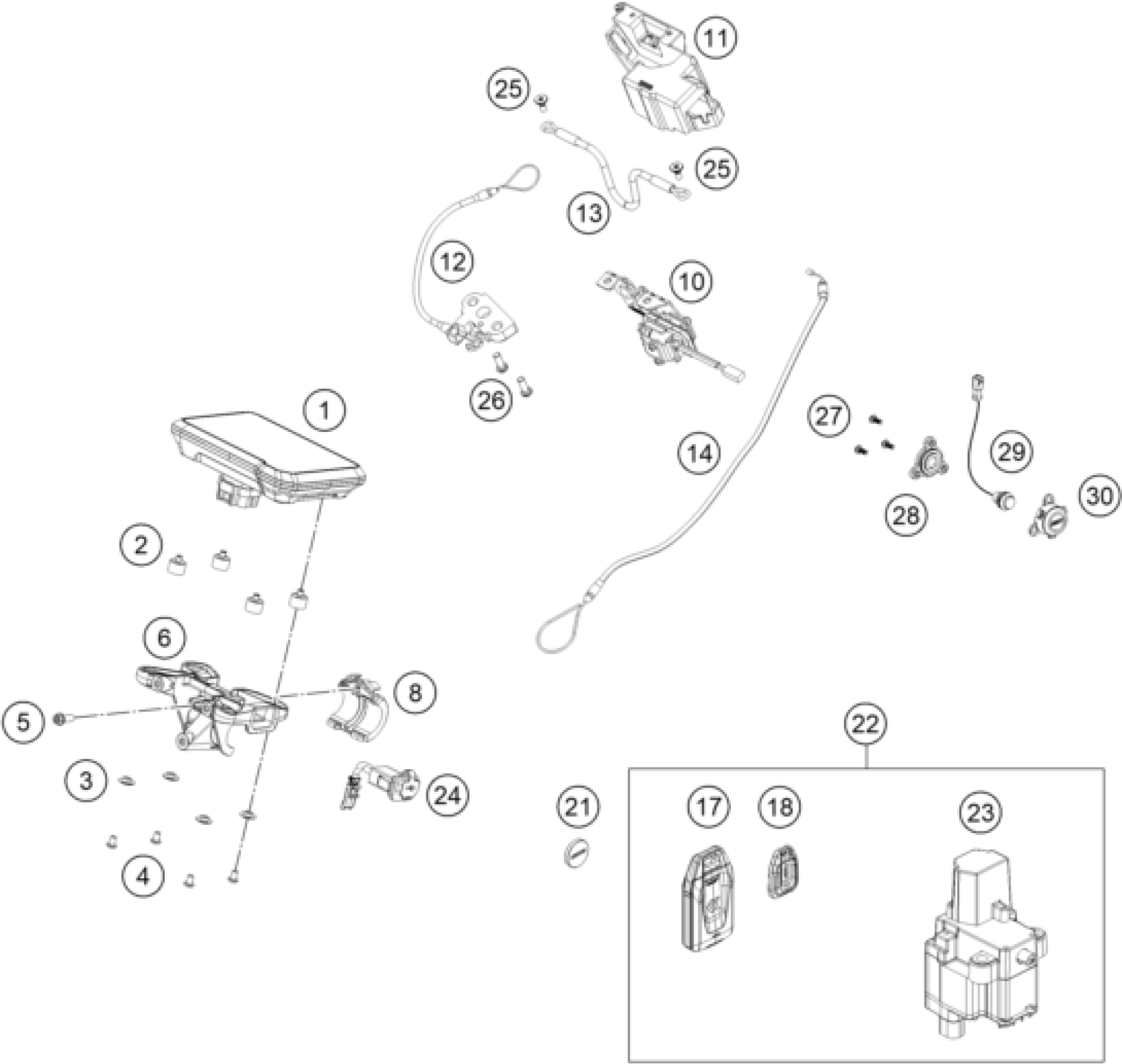

KTM 1390 SUPER DUKE R, black 2024 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

1

Dashboard

22114069000

Unavailable

2

Damper, speedometer

61514069110

Unavailable

3

Tachometer support bush

61614069020

Unavailable

4

Flat Head Screw ISO7380 M5x8 A

0738050082

Unavailable

5

HH collar screw M6x16 TX30

0025060166

Unavailable

6

Instrument support front part

A62414060001

Unavailable

8

Instrument support rear part

61701044000

Unavailable

17

Active transponder Race-on 433

61911267000

Unavailable

18

Passiv transponder Race-on KTM

61911067020

Unavailable

21

BATTERY FOR ICO TRIPMASTER 04

58512085160

Unavailable

22

Lock kit, KTM RACE ON 434 MHz

61911466144

Unavailable

23

Ignition lock KTM RACE ON 434

61911466100

Unavailable

24

USB-C power socket, 12-V

A62711043000

Unavailable

10

Seat lock electric

61907050000

Unavailable

25

Screw, reservoir

69013099150

Unavailable

11

Cover, seat lock

A62407050050

Unavailable

12

Rider seat lock cpl.

61707052000

Unavailable

13

Tether, passenger

61707048170

Unavailable

14

Seat lock cable

A62407050060

Unavailable

26

oval head screw M6x18 A2-70 S

0738060185S

Unavailable

27

EJOT Delta PT K40x12

0081040121

Unavailable

28

Switch holder tip switch

61908043055

Unavailable

29

Release switch, seat lock

61911069000

Unavailable

30

Switch support, seat

61908043050

Unavailable
