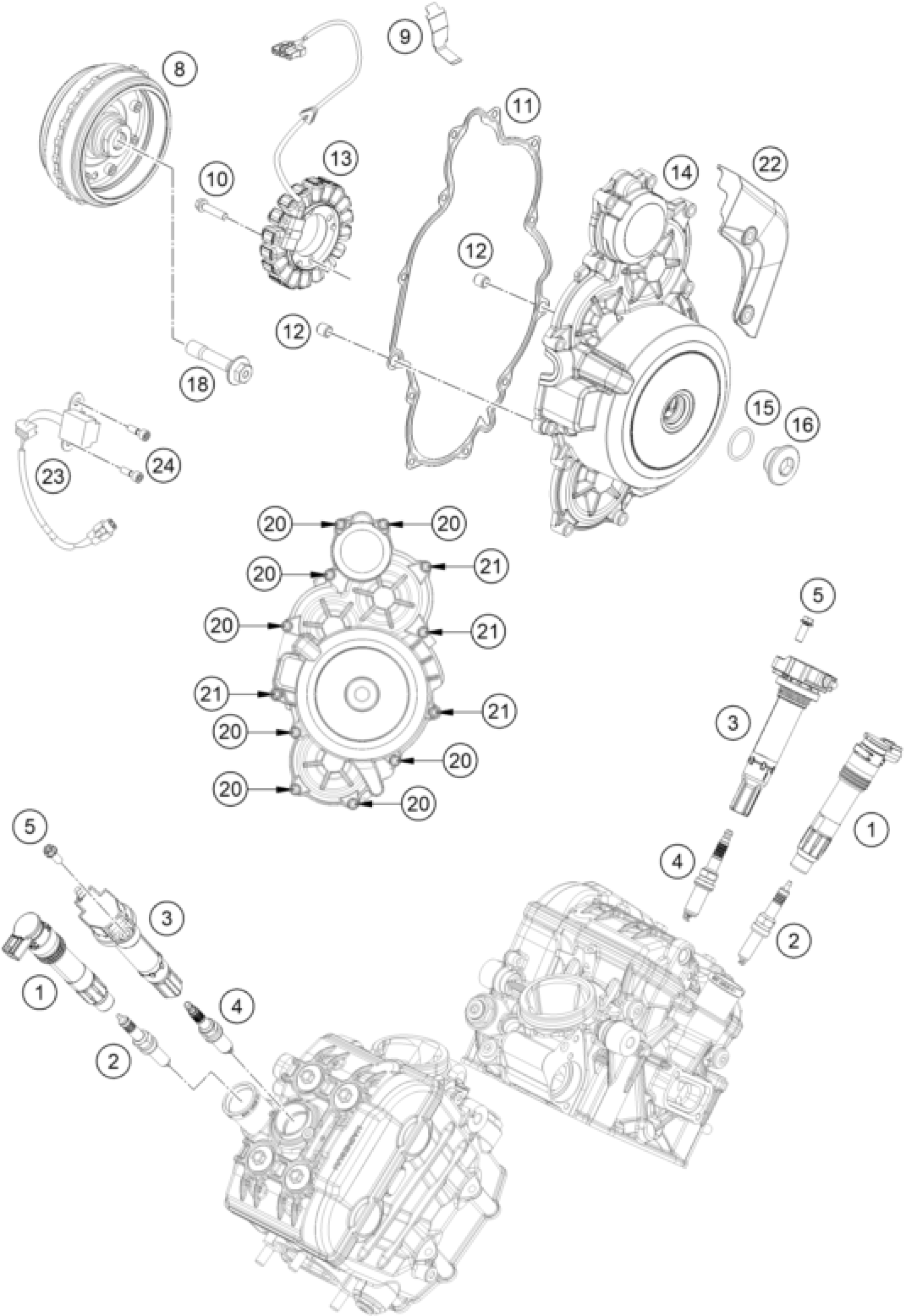

KTM 1390 SUPER DUKE R, black 2024 IGNITION SYSTEM Diagram

#

Description

Price

1

STICK COIL

76039006000

$97.14

2

SPARK PLUG

60439094000

$29.91

3

Stick coil

63539006100

$110.60

4

Spark plug M12x1.25

61739093000

$25.80

5

HH collar screw M6x16 TX30

0025060166

$3.39

8

Rotor complete

61539005000

Unavailable

9

generator line bracket

60039040020

$3.39

10

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

$1.69

11

GASKET GENERATORCOVER

61230040100

$27.95

12

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

13

STATOR

60339004000

$225.61

14

Generator Cover cpl.

61930102044C1

$171.56

15

o-ring 24.00x2.50 Viton

07700240251

$3.39

16

threaded plug M24x1.5 PA 6.6

6003009400030

$4.24

18

special screw M12x1.5 WS15

60339003000

$19.63

20

HH collar screw M6x30 TX30

0025060306

$3.39

21

HH collar screw M6x35 TX30

0025060356

$3.39

22

Plug cover

61411095000

$22.52

23

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

24

SPECIAL SCREW M5X16

60339035000

$4.24
