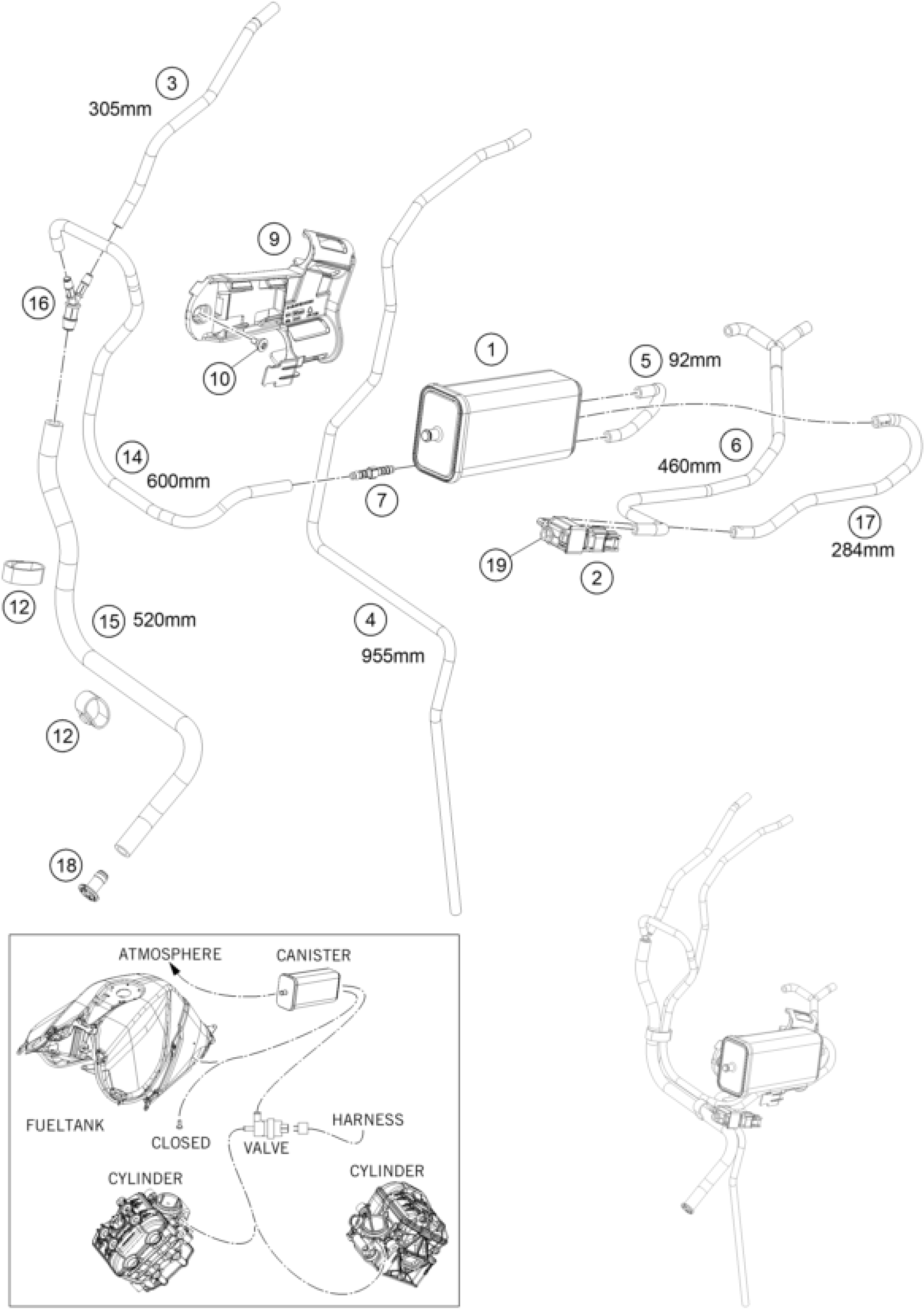

KTM 1390 SUPER DUKE R, black 2024 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

Activated charcoal filter

75015001300

Unavailable

2

Purge valve

A62415015000

Unavailable

3

Fuel tank vent hose 305 mm

A62415024000

Unavailable

4

Tank overflow hose 955 mm

A62415026000

Unavailable

5

HOSE PURGE VALVE

61415021000

Unavailable

6

ACF hose valve/cylinder

A62415020033

Unavailable

7

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

9

Evaporative canister bracket

61715003100

Unavailable

10

Special screw M5x12

69008021170

Unavailable

12

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

14

HOSE EPA D=6/10 PER METER

78015019001

Unavailable

15

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

16

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

17

Pref. hose, evap. can. val. -

A62415021000

Unavailable

18

PLUG FUEL DRAIN

90515011000

Unavailable

19

Self locking nut M6 - 10

56509064100

Unavailable
