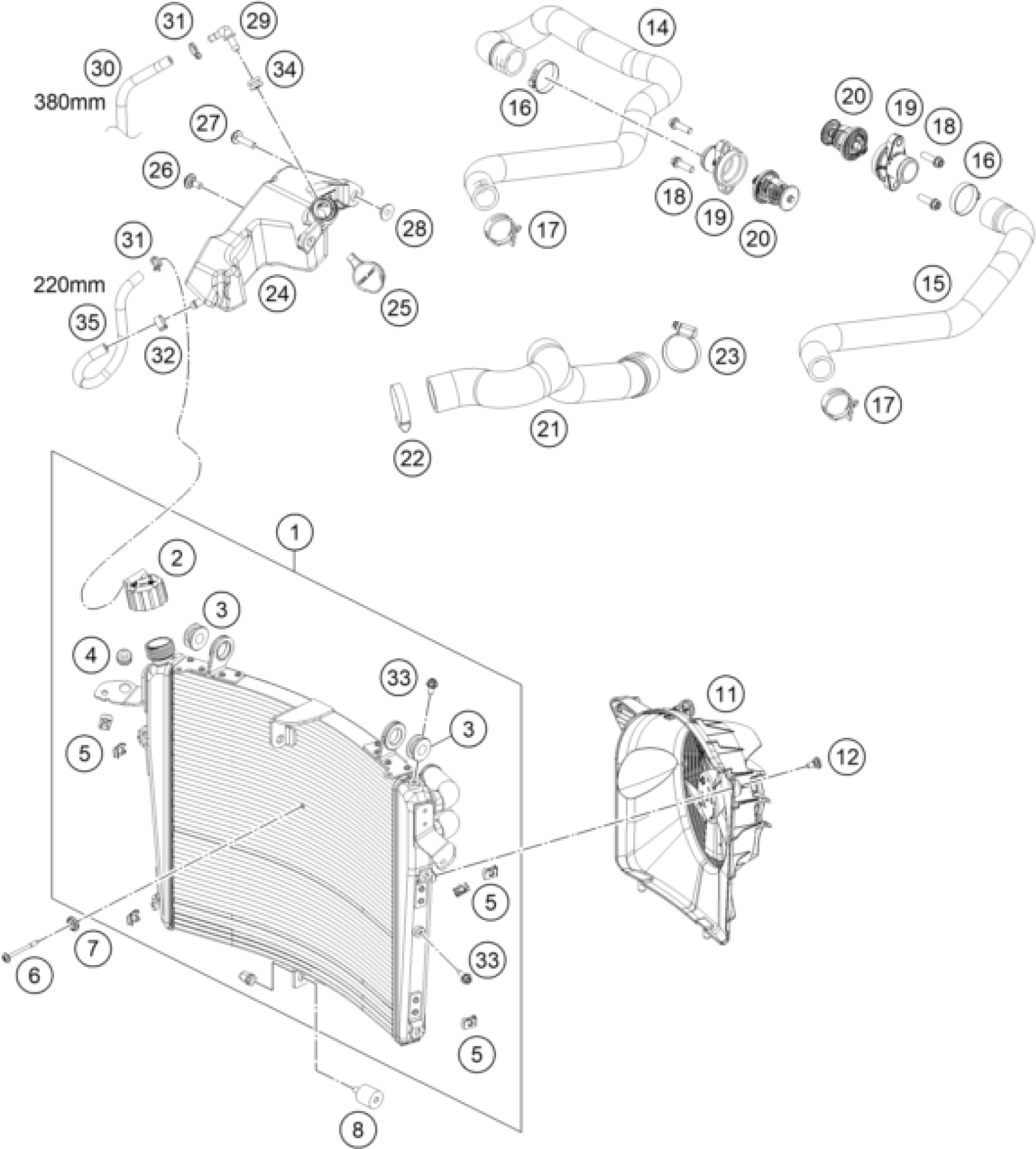

KTM 1390 SUPER DUKE R, black 2024 COOLING SYSTEM Diagram

#

Description

Price

1

Radiator

A62435010000

Unavailable

2

RADIATOR CAP 1,8 BAR

72035016000

Unavailable

3

Rubber grommet

69155011

Unavailable

4

rubber grommet D=8mm open

31008060000

Unavailable

5

Clip nut M5

59100108

Unavailable

6

Screw K40x46/10

69135015

Unavailable

7

Washer

69150036

Unavailable

8

silentbloc M6

90235001001

Unavailable

11

Radiator fan cover cmpl.

A62435044033

Unavailable

12

special screw M5x12

69008021160

Unavailable

14

Pre-formed hose, cylinder, fro

61735026000

Unavailable

15

Pre-formed hose, cylinder, rea

61735025000

Unavailable

16

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

17

Space-sav. spring band clamp D

0310001202800

Unavailable

18

HH collar screw M6x20 TX30

0025060206S

Unavailable

19

WATER CONNECTION CPL.

61235019100

Unavailable

20

Thermostat 80°

61935017000

Unavailable

21

Radiator/water pump pre-formed

A62435027000

Unavailable

22

Space-sav. spring band clamp D

0310001203800

Unavailable

23

Spring band clamp D42mm

0310001204200

Unavailable

24

Reservoir

A62435065000

Unavailable

25

Reservoir cover

61935065010

Unavailable

26

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

27

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

28

Spring retainer 6.2X12X18X5.2

59032006050

Unavailable

30

HOSE 6X10 EPDM 03

60035067001

Unavailable

31

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

32

stepless one-ear clamp

00050119706

Unavailable

33

collar screw

69135013

Unavailable

29

Angle piece, reservoir

60035068000

Unavailable

34

RUBBER SLEEVE 6X9X14MM

70003065000

Unavailable

35

Compensating tank hose

A62435065010

Unavailable
