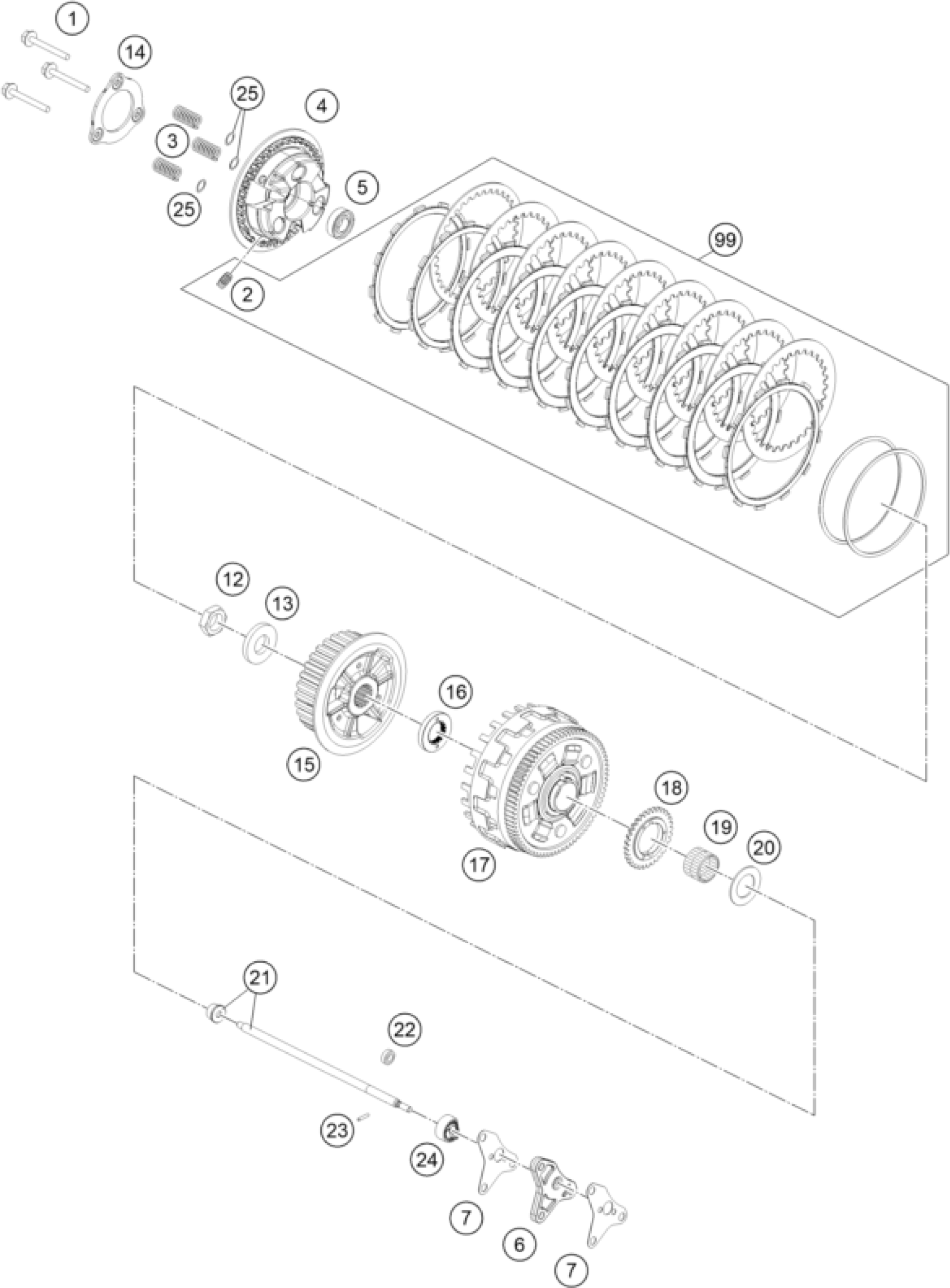

KTM 1390 SUPER DUKE R, black 2024 CLUTCH Diagram

#

Description

Price

1

HH collar screw M6X45 WS10

61332044000

Unavailable

2

DAMPER

61332007000

Unavailable

3

Clutch spring, orange

61432005000

Unavailable

4

PRESSURE CAP

61332003000

Unavailable

5

BALL BEARING 6003 C3

0625060033

Unavailable

6

DISTANCE PLATE 7MM

61232068100

Unavailable

12

hexagonal nut M22x1.5

0910002200800

Unavailable

13

wedge lock washer M22

0252012303500

Unavailable

14

ARRESTOR PRESSURE CAP

61332006000

Unavailable

15

Center clutch

61332002100

Unavailable

16

SECTION WASHER 03

60032021000

Unavailable

17

CLUTCH CAGE CPL.

61332001044

Unavailable

18

oil pump gear 32 teeth

60038001132

Unavailable

19

Needle bushing HK 30X35X26

0618303526

Unavailable

20

STOP DISK 30,2/50/2

60032020000

Unavailable

21

Push rod assembly 117mm

61232154000

Unavailable

22

SHAFT SEAL RING 9X18X06 B-NBR

0760091862

Unavailable

23

Needle roll.DIN5402 NRB 3X17.8

0402031780

Unavailable

24

PUSH ROD GUIDE

61232069000

Unavailable

99

Clutch kit

A62432011010

Unavailable

25

SUPPORT CLUTCH SPRING

61332004000

Unavailable

7

Paper gasket slave cylinder 0.

A62432065000

Unavailable
