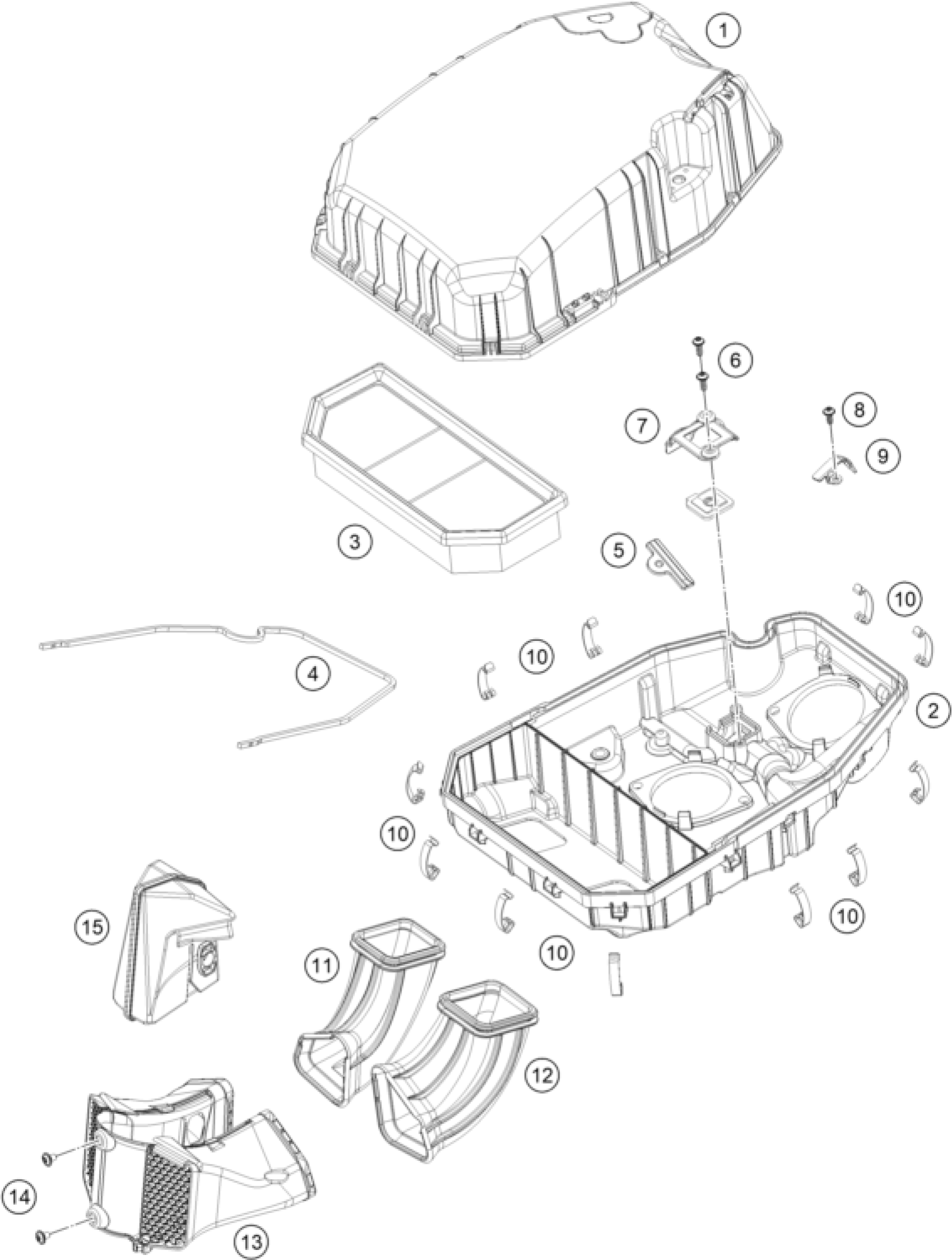

KTM 1390 SUPER DUKE R, black 2024 AIR FILTER Diagram

#

Description

Price

1

Air filter box top part cmpl.

61706002000

Unavailable

2

Air filter box, bottom part

A62406001010

Unavailable

3

Air filter

61706015000

Unavailable

6

EJOT PT screw K50x14

0081050141

Unavailable

7

Clamp frame

A62406005040

Unavailable

9

Cable duct cover

A62406002010

Unavailable

10

Air filter box clip

61706005075

Unavailable

11

Air intake right

A62406041000

Unavailable

12

Air intake left

A62406040000

Unavailable

13

Air intake, preass.

A62406040033

Unavailable

14

Oval head screw ISR M5x8-A2-07

073802050085

Unavailable

8

EJOT PT screw K50x12

0081050121

Unavailable

15

Resonator chamber, intake port

A62406042000

Unavailable

4

Air filter box seal

61706003000

Unavailable

5

Cover, cable duct

A62406001020

Unavailable
