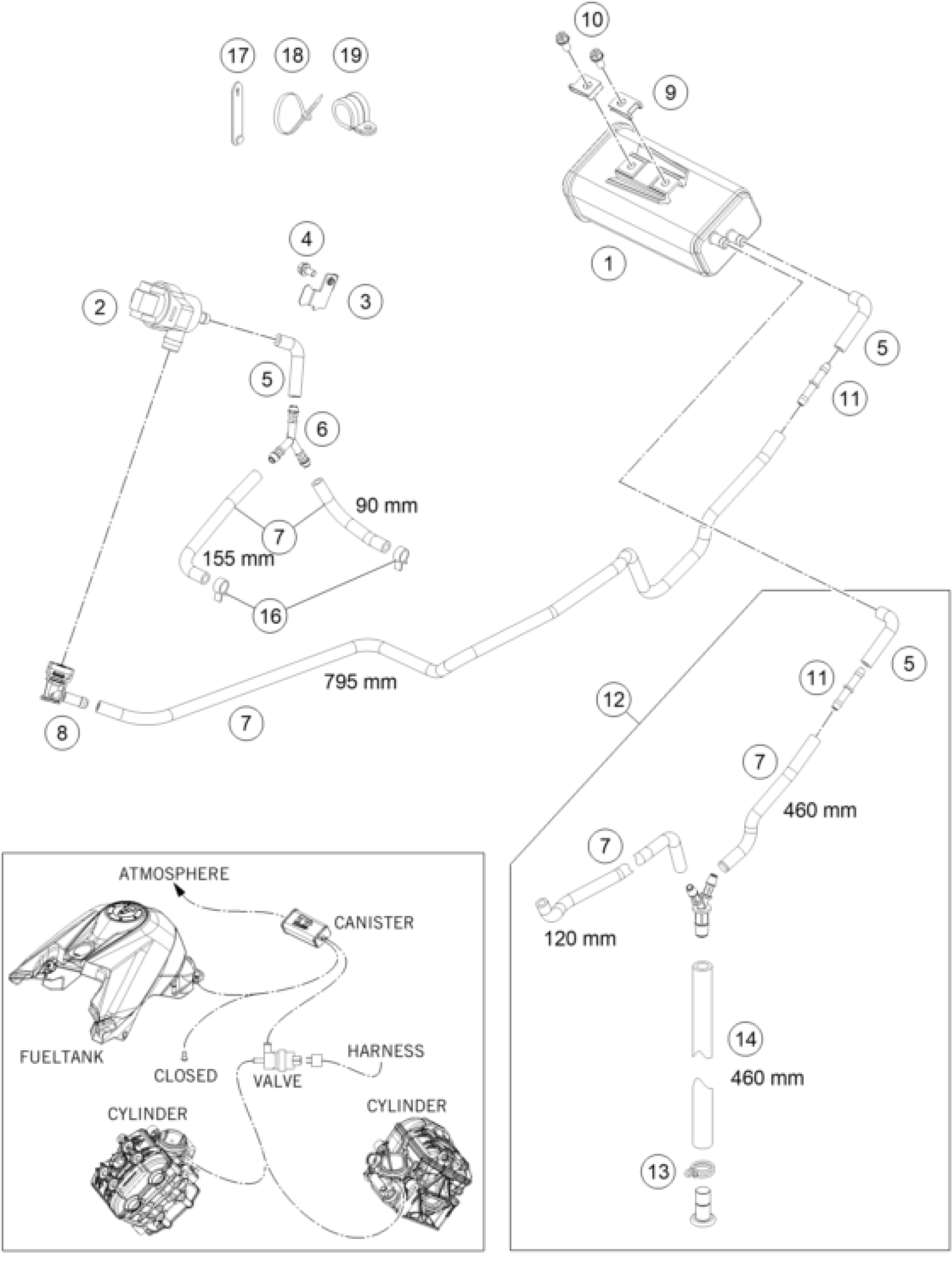

KTM 1290 SUPERDUKE R S.E. ABS 16 <2016> EVAPORATIVE CANISTER Diagram

#

Description

Price

17

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

19

CABLE CLAMP D=16

61315027000

Unavailable

10

HH collar screw M6x12 TX30

0025060126

Unavailable

11

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

12

HOSE TANK BREAT.-AKF

61315025133

Unavailable

13

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

14

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

1

EVAPORATIVE CANISTER 09

75015001100

Unavailable

2

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

3

SUPPORT AKF VALVE

61315002000

Unavailable

4

HH collar screw M5x10 TX30

0025050106

Unavailable

5

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

6

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

Unavailable

7

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

8

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

9

clip nut M6

54603048100

Unavailable
