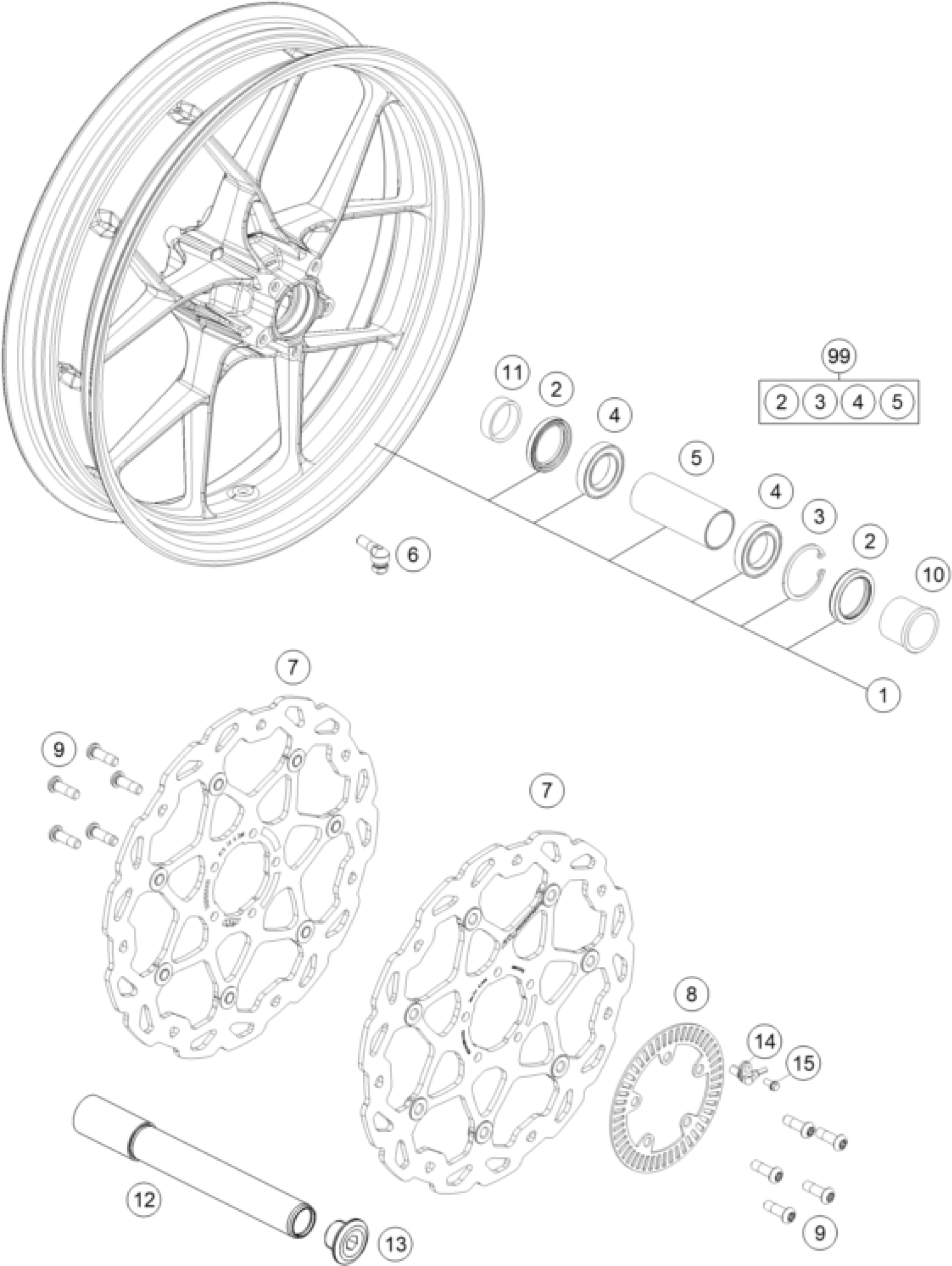

KTM 1290 SUPERDUKE R S.E. ABS 16 <2016> FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL 3.5X17'' OR.W.DECA

6130900114404A

Unavailable

2

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

3

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

Bearing spacing tube, front

61009011000

Unavailable

6

VALVE ANGLED

61009076100

Unavailable

7

BRAKE DISC

61309960000

Unavailable

8

Phonic wheel, front

76042020000

Unavailable

9

Special screw M8X25 SL TX40

76009062000

Unavailable

10

SPACER BUSH. FR. WHEEL L/S 05

61009012000

Unavailable

11

Spacer bush. fr. whee R/S 03

60009013000

Unavailable

12

WHEEL SPINDEL FRONT 05

61009081000

Unavailable

13

AH screw M25X1.5 WS=12 05

61009082000

Unavailable

14

ABS-SENSOR

76042025000

Unavailable

15

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

99

FRONT WHEEL REP. KIT

61009015000

Unavailable
